Replacement Mortise and Handle with Lock

Question

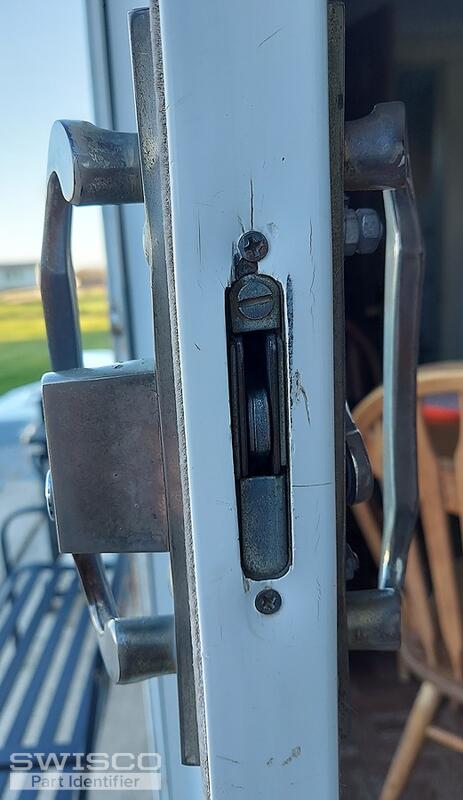

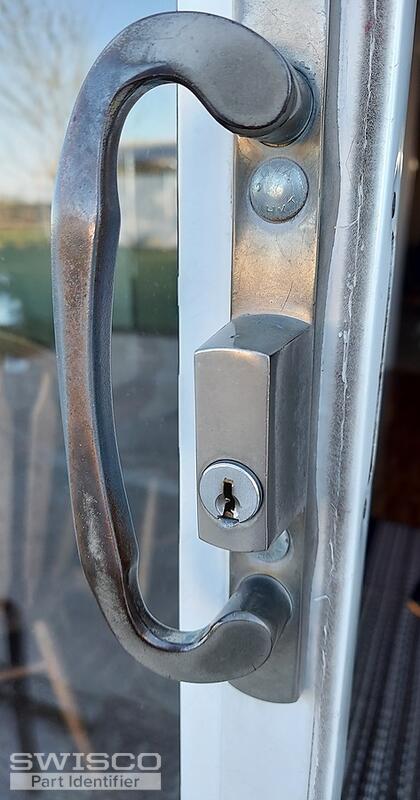

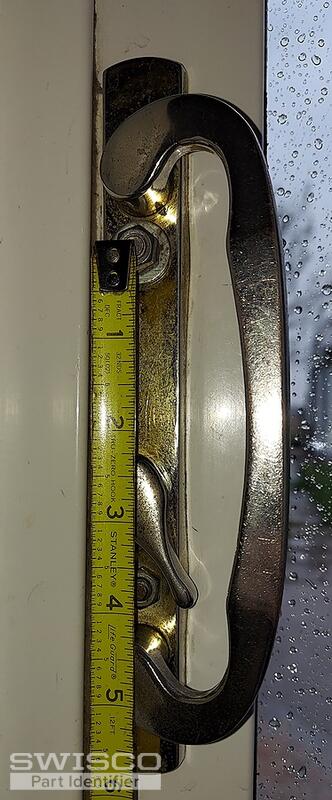

I need to replace the mortise and locking handle for my sliding patio door. The handle measures 3 15/16 inches from the center of the hole centers. Door is 1 1/2 inches deep.

Jasmine · Accepted Answer

Thanks for writing in to us! Your handle set resembles the 82-087 Legacy Keyed Handle Set. To confirm that this is the right fit, carefully compare the dimensions. You'll especially want to confirm that your handle set has an offset latch. This set is available in a few different finishes as well as other colors listed under the 82-086.

Detailed shot of the Brass color option

Alternate view of the Brass color option

The mortise lock is sold separately from the set. Yours appears to be similar in style to the 82-218 Mortise Lock. Take a look over the dimensions and see what you think.

Profile view of 82-218

Opposite side view 82-218
