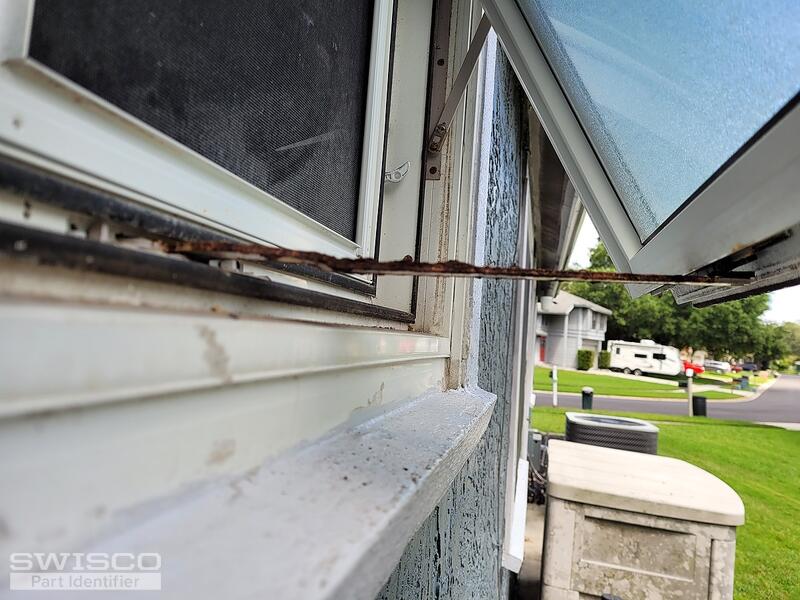

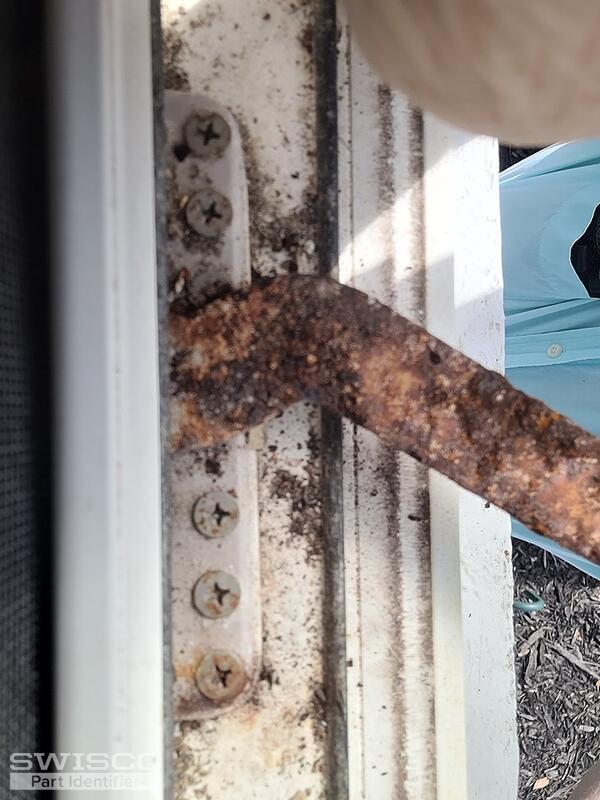

I have a 22" awning window. The rod is rusting and probably needs to be replaced. I have not found anything that appears to be the same, I would appreciate any help. I was unable to find ant markings on my unit.
Additional Information - The window was manufactured and installed by Stanek Windows in 2012,
Thanks

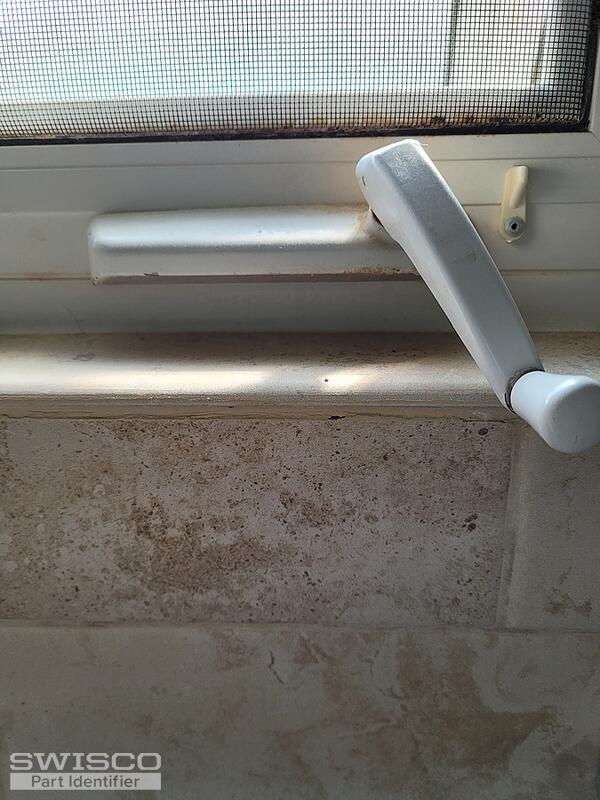

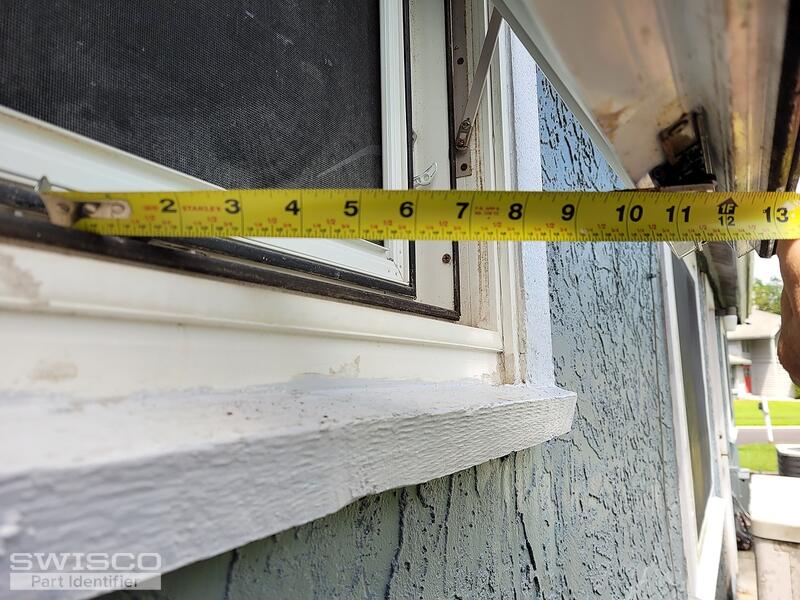

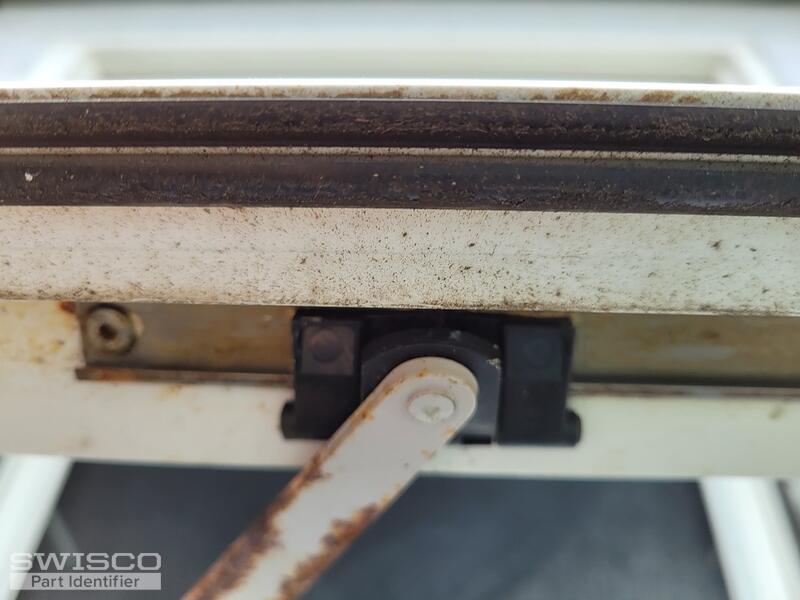

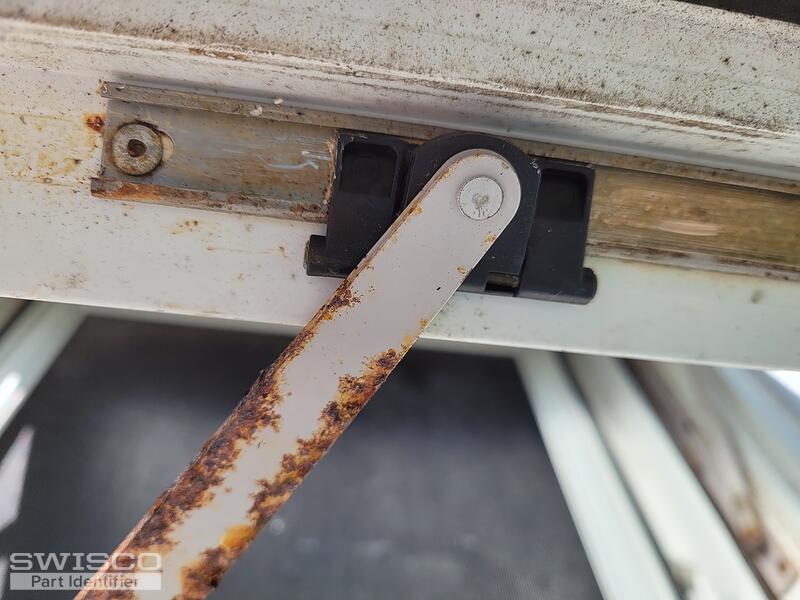

Additional photos as requested. Additional information - For some reason the first picture shows the crank in a vertical position. It is actually mounted at the bottom of the window in a horizontal position. Flip the picture up and to the left to be correct.
Corrected view. After doing some additional research on my own I believe what I need is a white Surface Mount 13-1/2 inch Single Arm Operator with Acetal Shoe - Left Hand
|
Lauren from SWISCO responded:
September 8, 2022
Hello, thank you for posting, Please start by reviewing the style and dimensions of the 39-440B awning window operator to see how it compares to your original. Also review the 39-375 or 39-451 cover and handles depending on style preference. Let us know what you think and if you have any additional questions.
Dimensions for 39-440B
Alternate view and dimensions for 39-440B
|
Thanks, this is exactly what I need. I placed an order for the operator and the 39-451 cover and handle. I really appreciate the help.
|
|
Lauren from SWISCO responded:
September 9, 2022
No problem! Please let us know if you have any future hardware questions. |
|
|
Lauren from SWISCO responded:
September 15, 2022
Great to hear and I am glad we were able to assist with your repair! Please let us know if you have any future hardware questions. |
