Replacement Part for Scheirich Drawer

Home Owner from Media, PA 19063

Feb 13, 2017 2:10 pm

US Patent # 3980364

15000AB-3 (not sure what this number is)

The wheel broke in half on the right side plate.

Please help!! Thank Katherine

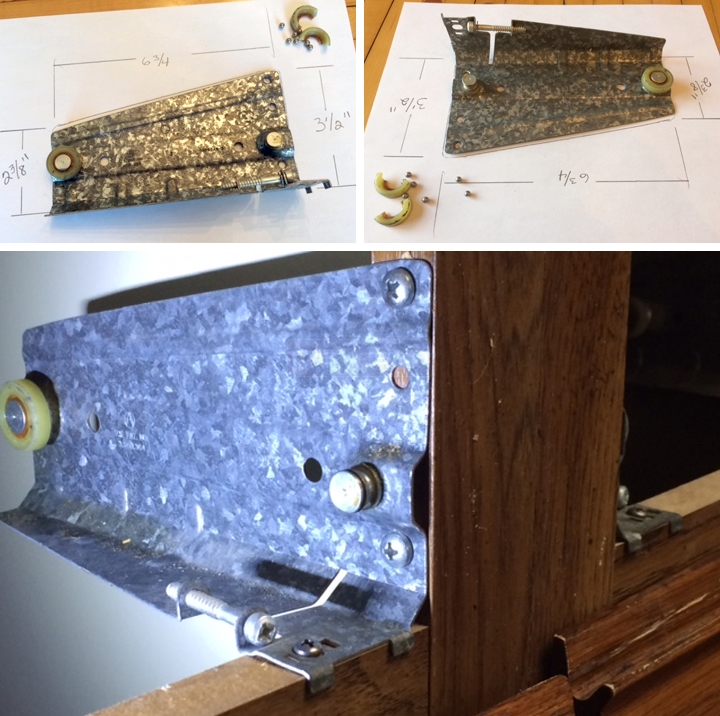

User submitted photos of drawer hardware.

5 Replies

Paul from SWISCO

Feb 17, 2017 1:42 pm

I'm afraid this drawer plate roller is no longer available. What we suggest is trying to just replace the wheel. First drill out the rivet holding the wheel to the plate, then choose a wheel that matches the size of yours. Start with our 10-109, 10-141 or 10-142 to start out with. You can use a 33-087 screw with a dab of Loc Tite on the threads to install.

Home Owner from Durham, NC

Mar 15, 2017 1:19 pm

I have just had the same bearing failure on one of my Scheirich drawers. The roller o.d. measures 61/64" and is 1/4" thick, so I will try your 10-109 wheel and 33-087 screw application. Thanks.

Landlord from Alberta

Oct 15, 2023 11:57 am

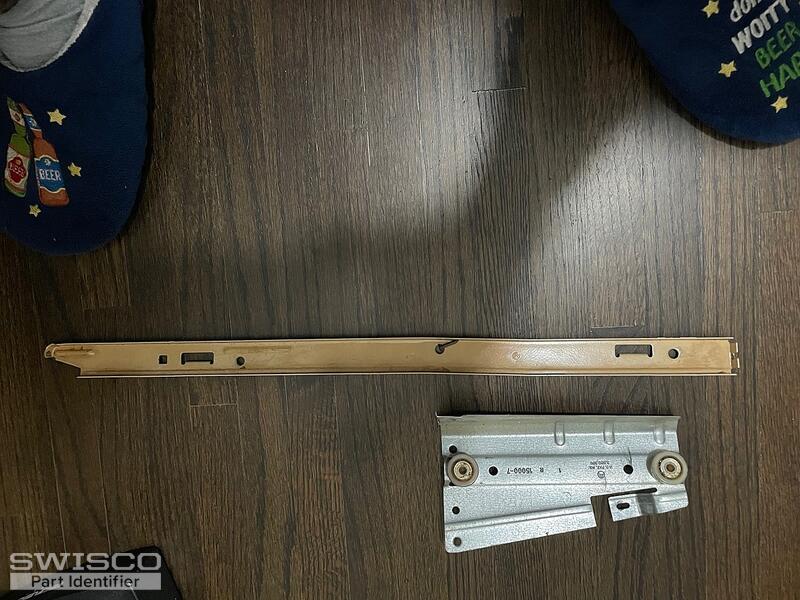

I'm looking for the slider that this person wanted the roller for. No marking on the slider but the roller bracket had a patent # 3980364 which is how I found this thread. The slider is 3/8" x 1" X 19-3/4". I presume they no longer make them either but do you have any ideas on how or where to get one? I included the pic of the roller bracket just for reference even though I only need the slider
Thanks,
Ron

1 user uploaded image

Tom from SWISCO

Oct 16, 2023 3:52 pm

Unfortunately, we don't sell a good replacement for this old slider. Paul's suggestion above remains our only possible alternative, but even that's not guaranteed. These are just too old for us to get a hold of anymore, and I'm not sure who else might still have it.
