Replacement Parts

A home owner from North Carolina says:
2 identical sliding doors need replacement parts.
I'd like to replace all available components and improve tracks.
Both sliding doors are 36" door width.
Doors original to 1977 home.
"pd" insignia at bottom of latch plate
Thumbnail of the uploaded file named IMG_0887.jpg
Thumbnail of the uploaded file named IMG_0892.jpg

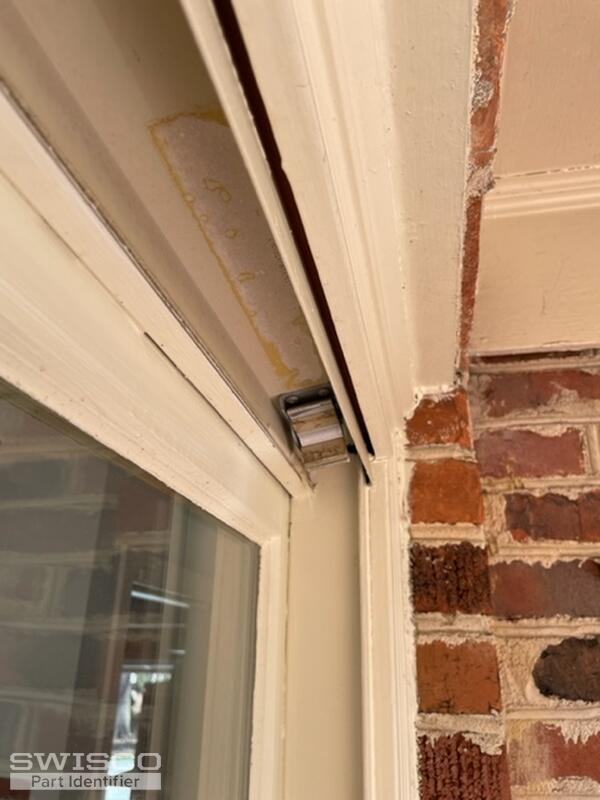

Thumbnail of the uploaded file named IMG_0894.jpg

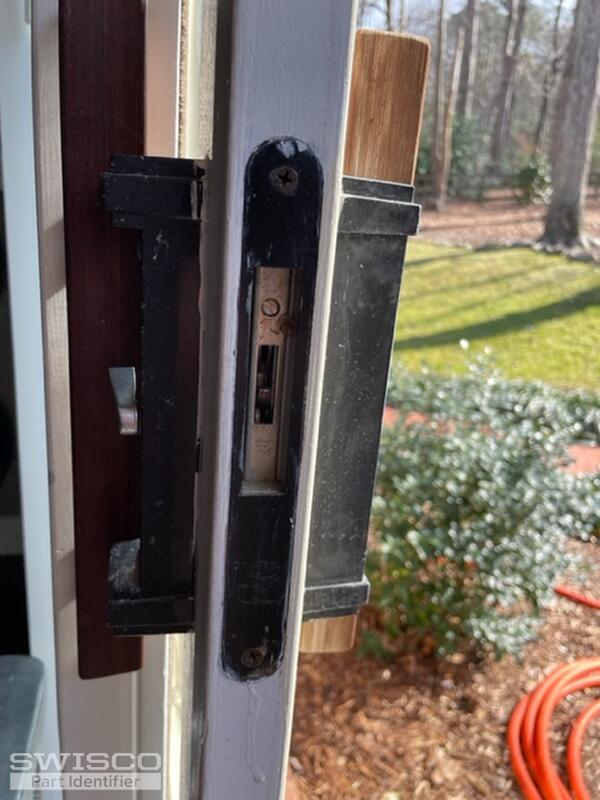

Thumbnail of the uploaded file named IMG_0901.jpg

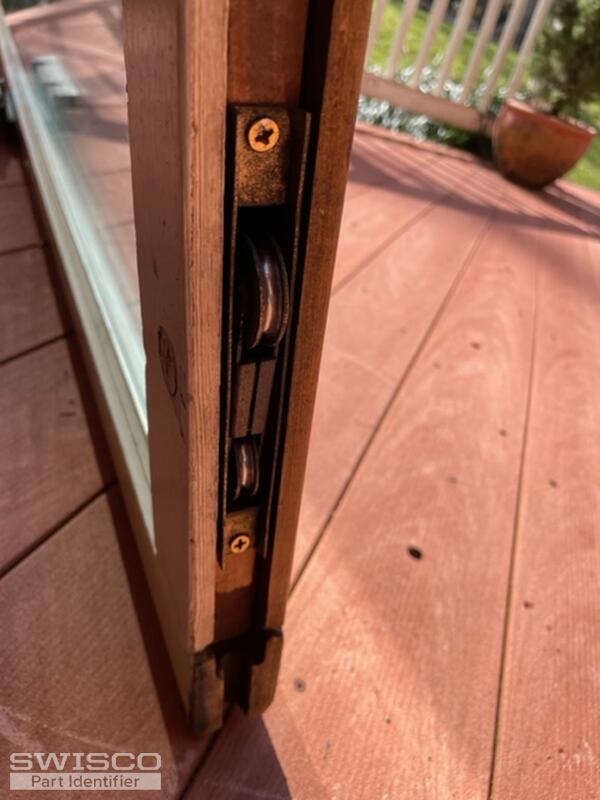

Thumbnail of the uploaded file named IMG_0890.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the specifications of the parts that we've related on this page for you to your original hardware. Thanks for posting!

A home owner from North Carolina says:
Please confirm that the handle set and lock selections are appropriately fitting replacements for the original parts. The original lock seems to be 3 15/16". Please also identify replacement parts for a bumper, keeper, 8" lock cover plate, and wheel adjustment screw covers. Thanks!

Legacy Handle Set - Satin Nickel - 82-090

Mortise Lock - 82-218

Similar Bumper?

Keeper for 82-218 lock - preferably satin nickel?

8" Lock Cover Plate?

Wheel Adjustment Screw Covers?

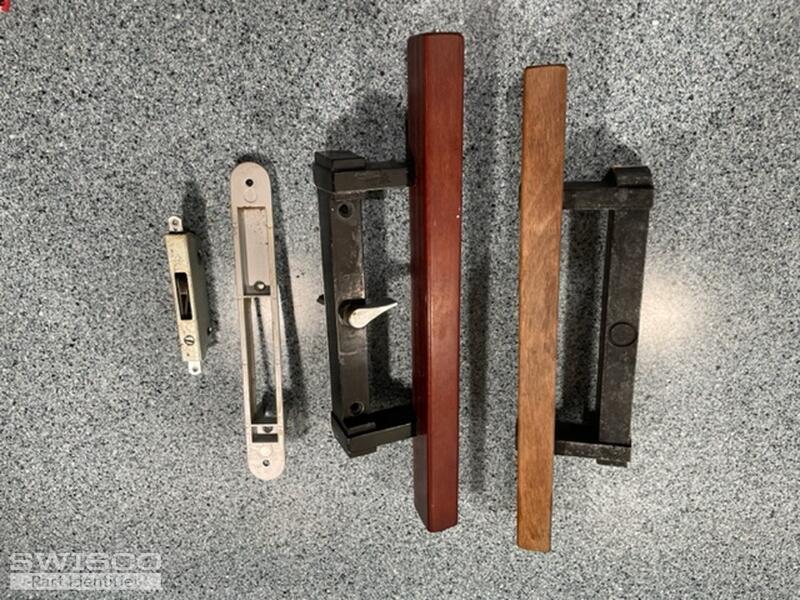

Thumbnail of the uploaded file named IMG_0906.jpg

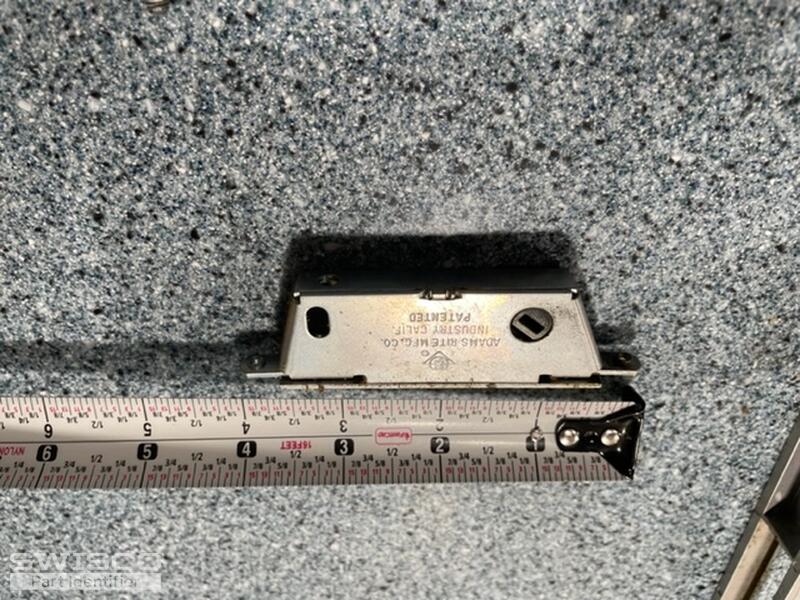

Thumbnail of the uploaded file named IMG_0909.jpg

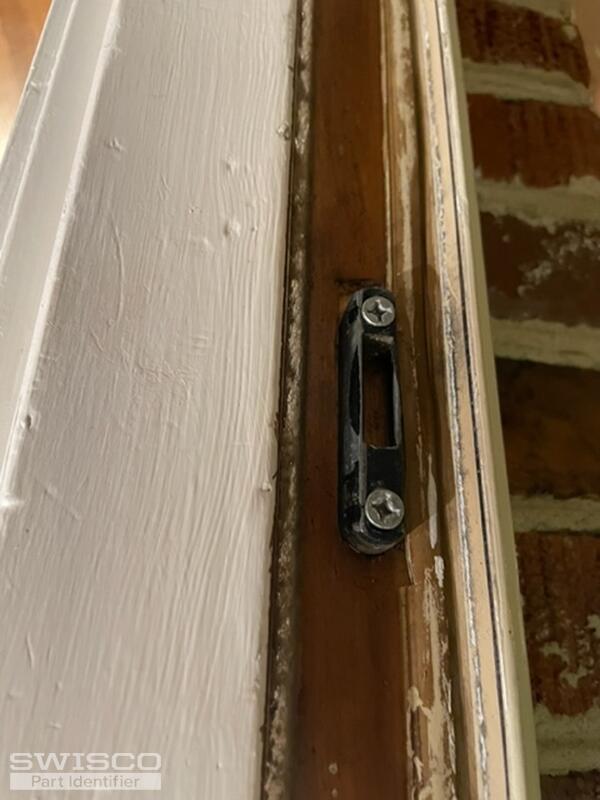

Thumbnail of the uploaded file named IMG_0911.jpg
Thumbnail of the uploaded file named IMG_0892.jpg
Thumbnail of the uploaded file named IMG_0890.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I don't believe that the 82-090 Legacy handle set will work on your door because the thumb latch on the internal handle is "off-center". Your thumb latch is located at the center of the handle, so you might need to use something like the 82-030 handle set with an adjustable thumb latch.

As for the mortise lock, take a look at the 82-223 with a rectangular faceplate that looks like yours. The 82-218 face is rounded at the ends. We do not have that 8" faceplate so you will need to reuse it.

Also, take a look at the 80-057 bumper. We have three keepers that could work on your door. The 89-020 has a projection of 3/4", which the 89-021 and 89-021D measure 7/16". As for the roller adjustment screw covers, we have the 33-250 with a diameter of 1/2" and the 67-019 with a diameter of 5/16". Take a look at the parts suggested to see if they will work for your door.
