Replacement Parts

A home owner from Brea, CA says:
September 30, 2022
Looking for replacement Atrium Sash window channel balance. Original part has markings '16 3 JW CMC 7' as shown in picture. Can you provide me with the proper replacement part number?

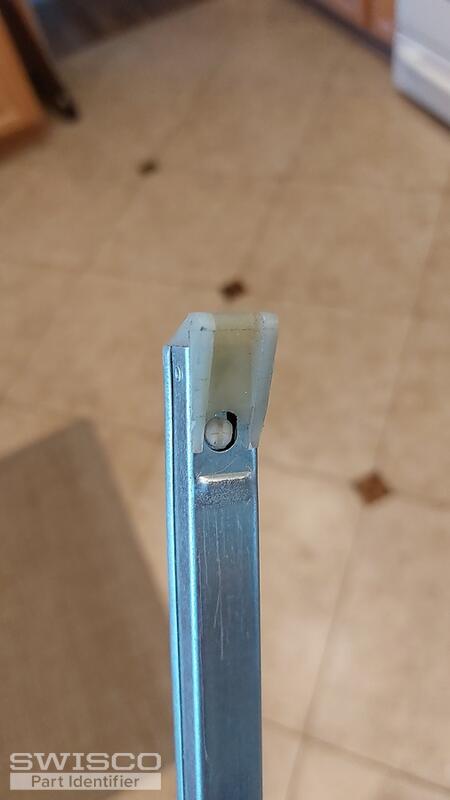

Thumbnail of the uploaded file named Bottom Clip side.jpg

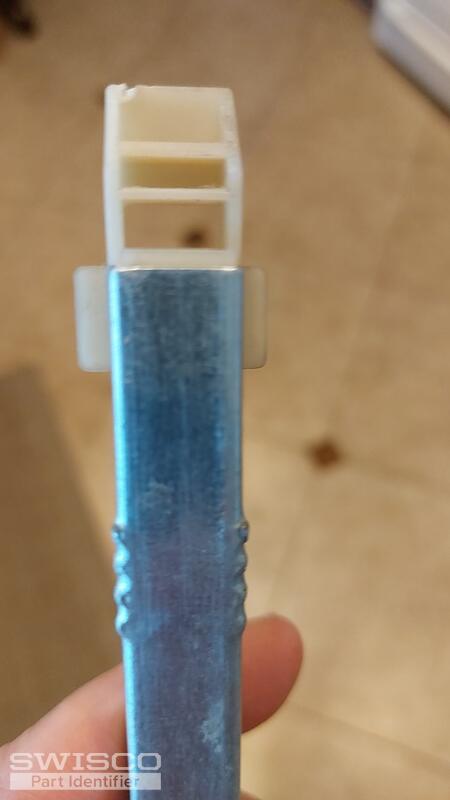

Thumbnail of the uploaded file named Bottom Clip.jpg

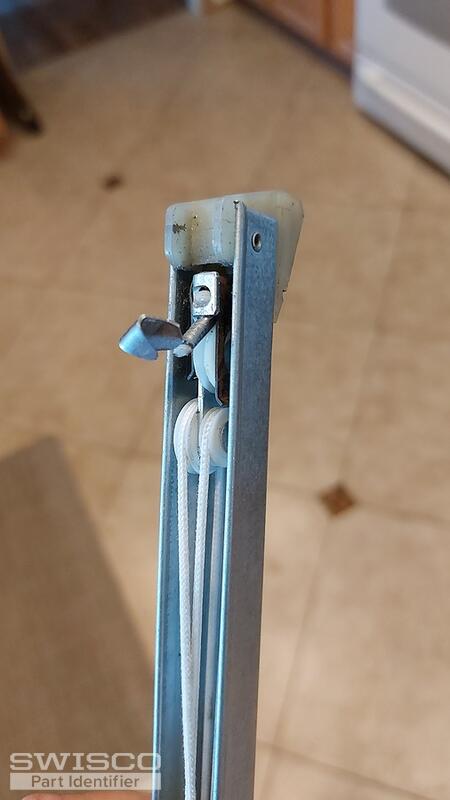

Thumbnail of the uploaded file named Hook.jpg

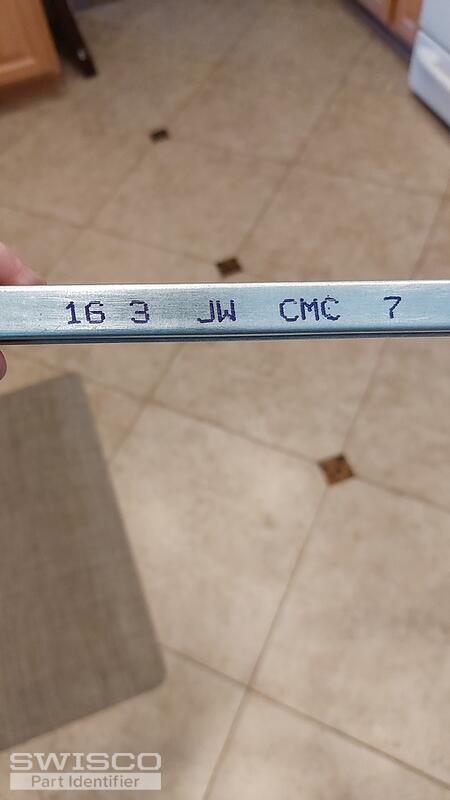

Thumbnail of the uploaded file named Markings.jpg

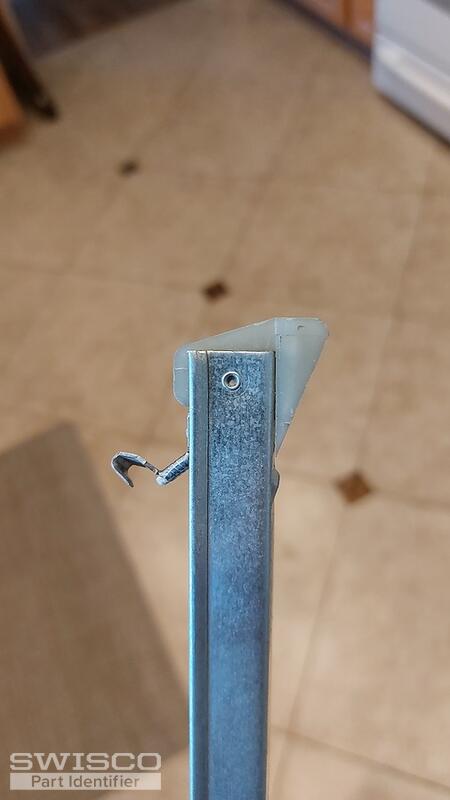

Thumbnail of the uploaded file named Top Clip front.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 5, 2022

Hello! Based on your photos, I would recommend the S395-17 channel balance. This has a 19-005 top and 15-001 bottom nylon fitting, so as long as those match up then you should be good to go.

Detail of 19-005
Detail of 19-005

Detail of 15-001
Detail of 15-001
17" Series 395 Channel Balance
17" Series 395 Channel Balance
S395-17
$9.34
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
