Replacement Parts - Constant Force Coil Balance & Tilt Out Locks

Question

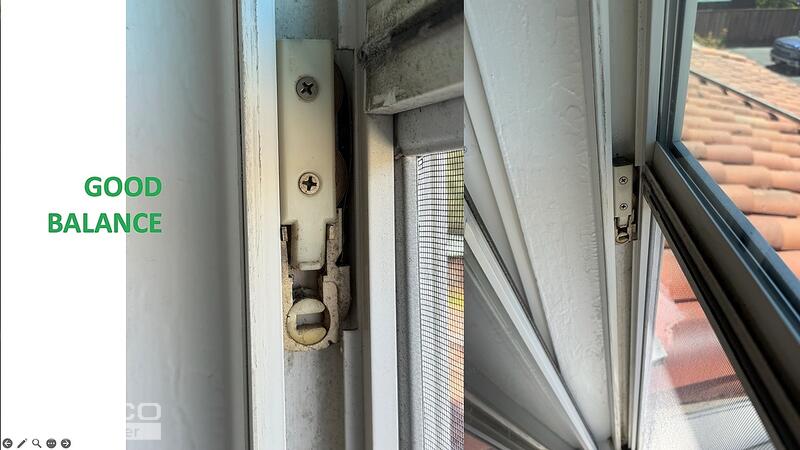

Hi, I've got two no brand single hung vinyl windows (30ish yo) and I need replacement parts for the Balances (4x) and Tilt Out Locks (4x). Do you by chance have these or an option for a retrofit replacement part. Also need the tape/coil balance cartridge as well as the shoe parts that fit in the base of the sash. The sash is ~31" tall and the full window is ~42"Wx68"H.

Tom · Accepted Answer

Looks like you need a new balance assembly, tilt latch, and pivot bar. We can help with all three. I'll go through them one at a time.

For the balance, we don't provide these as kits. We only sell the individual components separately. See our 15-180 pivot shoe, Series 190 spring, 15-181 detent clip, and 15-182 barrel. You need the number printed on the old spring to determine the proper weight option.
The tilt latch is similar in design to our 26-243A and 26-244A. You need to review our dimensions to verify.
The pivot bar is too obscured in these photos for me to ID. You need to remove an undamaged version and show me a clear photo of it out of the window.

Please let me know if you had any follow up questions.
