Replacement Parts ID

Quick Learner from United States

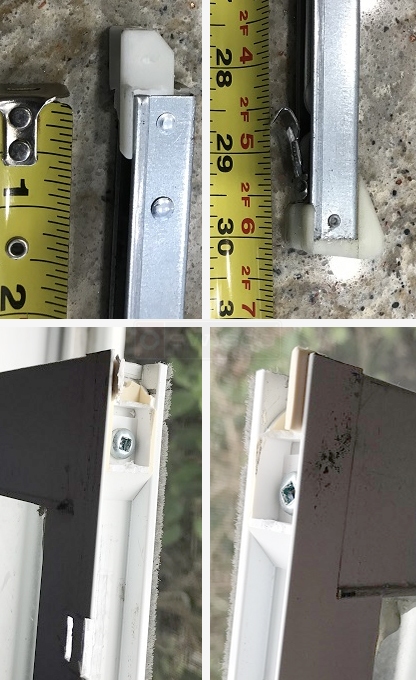

Attached are photos of the channels removed. 30? long, look just like 380s, except the top is flat. Came on Kinco window, weigh 30.5 lbs. Please devise.
Channel Balance
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for contacting us. I think the 19-005 top attachment that comes with our Series 380 balance will work fine, even though yours is flat. These serve a very basic function and they don't need to be strictly identical.

However I would double check the bottom shoe. That looks more like our 15-004, which comes with the Series 385 balance. I recommend confirming the depth to be sure.

For the top sash guide in your third and fourth photos, see our 18-166. This is an educated guess based on the fact your window is Kinco, so you may want to look over our measurements to be sure they're the same size.
