Replacement Parts for the Silver line windows. Series 2200

Contractor from Virginia

We need a dozen balance rods.

Hello my name is Morgan I'm a contractor in VA I was told that you could help with some replacement parts.

We need a dozen balance rods to keep the windows up

We need a dozen of those plastic guides for the window frame track to guide the window up and down. The balance rod is 58 1/2. Fully extended. The rod is 30 " when it's closed.

The plastic guide is 2" tall 1 1/4 wide

And 3/4 thick. .

Thanks for your help.

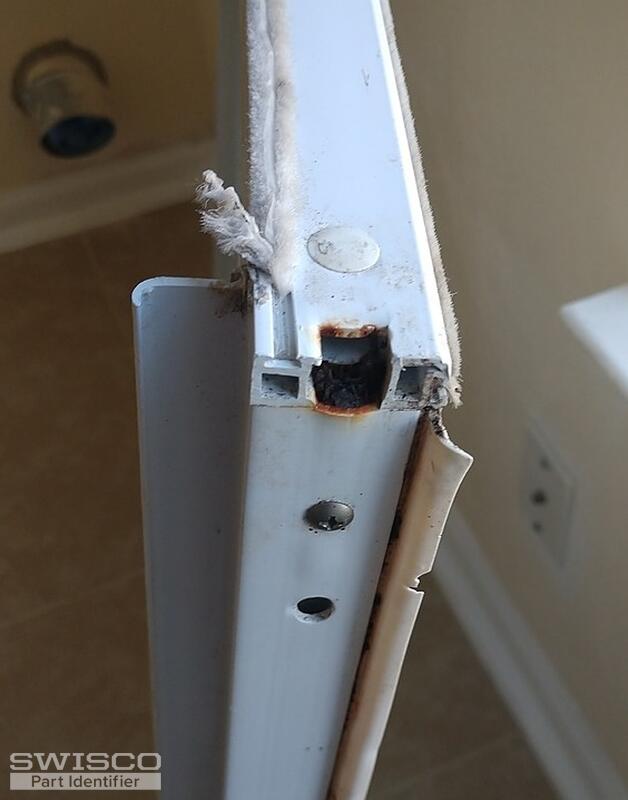

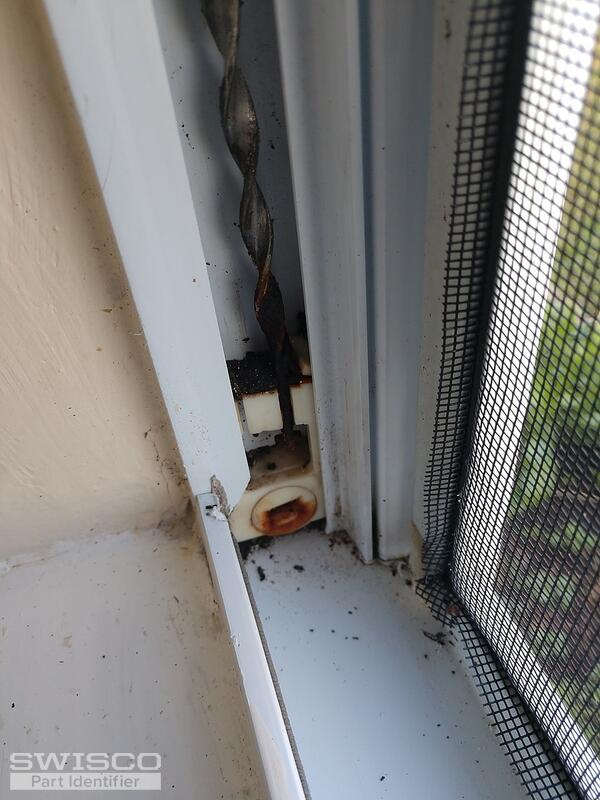

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Your spiral balance will either be our Series 900 or Series 600, depending on the diameter of the outer tube. Keep in mind length is determined by the length of the tube, not the full extension. Only measure the tube. That will tell you what you need.

Looks like you need a few different pivot shoes, too. I see at least three different styles in your photos. I recommend looking at our complete selection here, specifically the top couple rows. I'm certain this selection will allow you to find the best matches.

Reply to Thread
Current Photos:
