Replacement Parts/Stanley Mirror Bifold Doors

Question

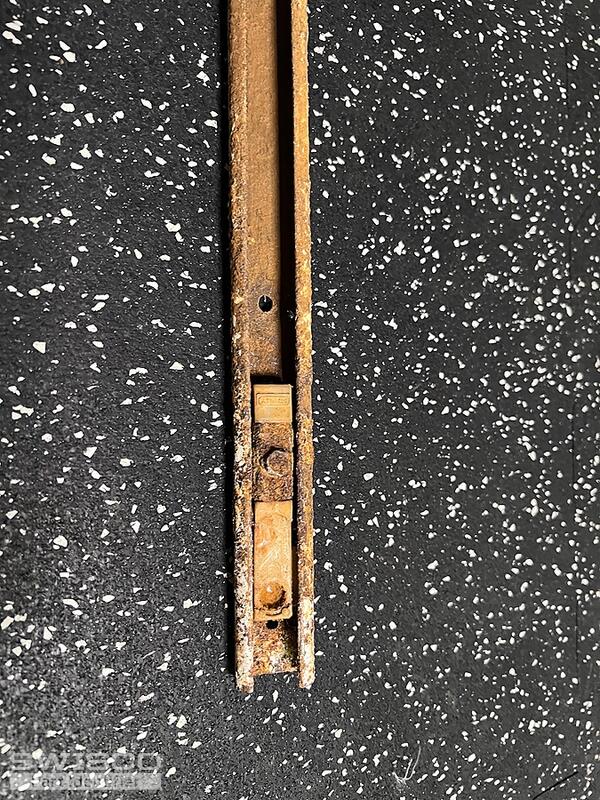

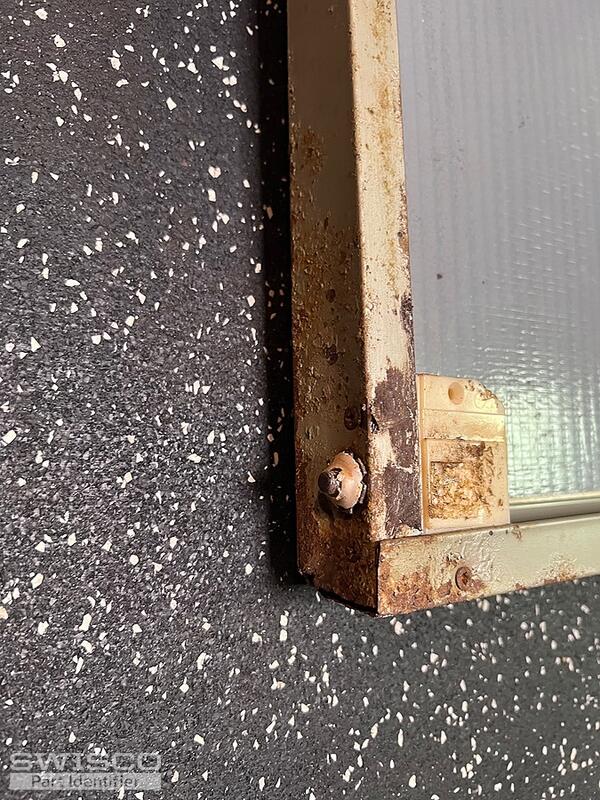

I need replacement parts for old Stanley mirror bi fold doors.  Each door and track is 30".

Paul · Accepted Answer

Hey there,

Thanks for writing in! I see your doors are near moisture that caused them to rust. If you can take out the old pins, I believe you can replace the corner block using the 23-409 Corner Connect.

Dimensions for 23-409

The pins you will need are (1) of the 23-116 Bi-Fold Door Adjustable Bottom Pivot and (3) of the 23-115 Spring Loaded Pivots (one for the top pivot and two for the top and bottom guide pins).

Alternate view of 23-116

Measurements of 23-115

We do not carry a 30" track but you should be able to use the 21-452 36" Low Profile Track Assembly and cut it down with a hacksaw. This track will come with a 21-174 Roll Guide, 21-175 Pivot Bracket and 21-286 Snugger.

Dimensions of the low profile track assembly.
