Replacement Pella Opertator / Wood Cover

A contractor from New York says:
April 17, 2019
Hello,

Are you able to help me replace the operator on an older Pella window? The photos attached are for the left window, I need the operator for the opposite, right window. I also need the wood molding cover. It's 31 1/4" Long. The sash size for reference is approximately 33 1/2" W x 56" H

I appreciate your help.

Thank you,
Brian

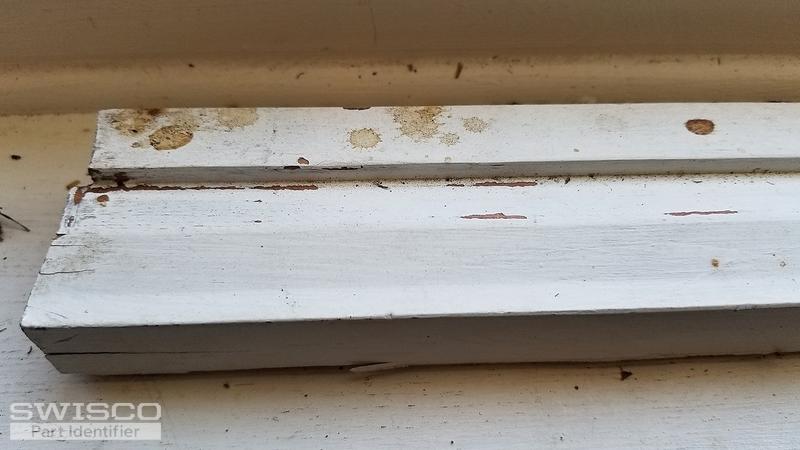

Thumbnail of the uploaded file named 20190416_111731.jpg

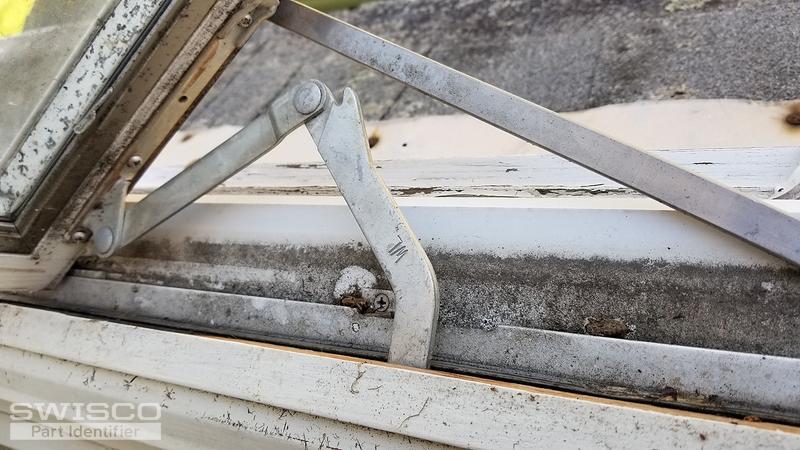

Thumbnail of the uploaded file named 20190416_111423.jpg

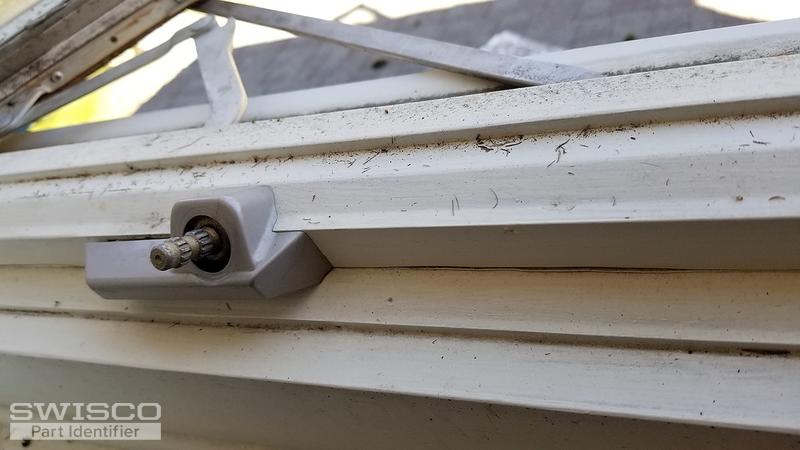

Thumbnail of the uploaded file named 20190416_111333.jpg

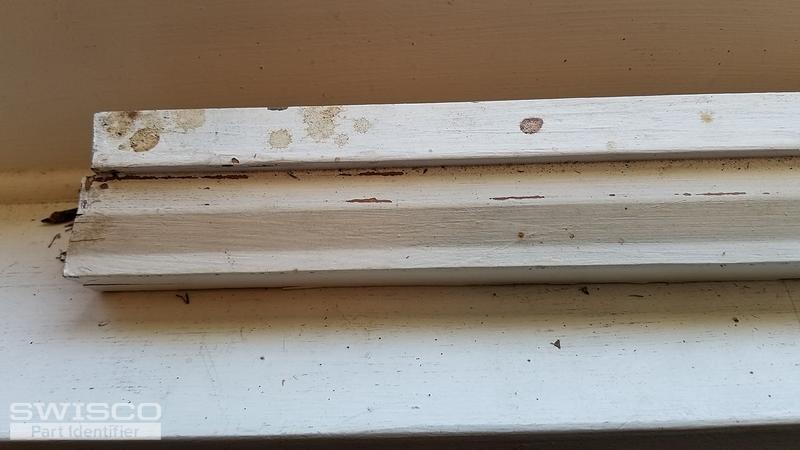

Thumbnail of the uploaded file named 20190416_111033.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 17, 2019

Can you please tell us the dimensions for the arm(s) on your current operator? This will help our parts experts better recommend replacement options for you.

As far as the wood molding goes, that is unfortunately not something we do so you will have to reach out to a local carpenter to get that replaced.
Profile picture of Tom
Tom from SWISCO responded:
April 17, 2019

I believe what you measured is part of your hinge set, rather than the actual operator itself.

Take a look at our 39-175 and 39-176 operators, as well as our 39-396 and 39-397 hinge sets, I believe these parts will work for you.

If there is anything else we can do for you, please let us know.
A contractor from New York says:
April 17, 2019
Hello Michael the arm is approximately 12" Long
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-175
$241.70
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-176
$241.70
LH 12-1/8" Hinge Arm Assembly, Pella
LH 12-1/8" Hinge Arm Assembly, Pella
39-396
$87.50
RH 12-1/8" Hinge Arm Assembly, Pella
RH 12-1/8" Hinge Arm Assembly, Pella
39-397
$87.50
