Replacement Pins

Handy Person from Gif Sur Yvette, France
I am trying to fix some metal bifold closet doors, but the attached pins are missing on a couple of doors I need to fix. Will your hinges replace these okay? They are very similar but slightly different. Here are the parts I see: 21-007, 21-001, 21-065, etc
4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

Thanks for your post! The 21-001 and 21-007 do have the locking hook your bifold pins have, but I don't think either of them will reach the door cut out.

Are you able to reuse the black nylon housing on your pins? If so, I believe you may be able to replace just the caps. The nylon cap on your spring loaded pins look very similar to the 21-100 Bifold Door Pin Cap. This cap fits on a 1/4" (6.5 mm) pin tip; its outside diameter is 3/8" (9.525mm).

Side profile view with measurements
Side profile view with measurements

Alternate view with measurements
Alternate view with measurements

Should you need to replace the pins, for the one with the cap and spring I suggest taking a look at the 21-042 Bifold Door Top Pivot and Guide Pin. You can consider the 21-003 Bifold Door Pivot to replace the threaded pin. Take a look over each of them and see what you think!

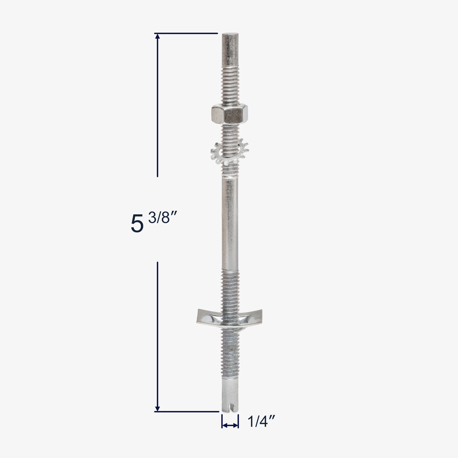

Dimensions for 21-003
Dimensions for 21-003
