Replacement Pivot Bar

A handy person from North Carolina says:
Hi I need a replacement pivot bar for the top sash of a tilt-in window. The overall length of the bar is about 3 inches with about 1 5/16 inches between the mounting screw holes. The only marking on the pivot bar is a 6 (or 9 don't know what the proper orientation is). There is no manufacturer's name on the window but I have included a photo of a sticker that was on the frame. I have also included photos of both sides of the bar.

Thanks for the help.

John
Thumbnail of the uploaded file named 0604201038a.jpg
Thumbnail of the uploaded file named 0604201037.jpg
Thumbnail of the uploaded file named 0604200925.jpg
Profile picture of Bob
Bob from SWISCO responded:

Our 26-366 is similar, but the tip that fits into the pivot shoe differs. It measures 7/16" long and lacks any 'horns'. If you want to be certain this could work for you, could we see a picture of your pivot shoe? The shape of the cam will help us determine whether this pivot bar is compatible. Many thanks.

A handy person from North Carolina says:
Bob

Here are some photos of the shoe. The top is damaged so I was planning on replacing it with your model # 15-195 shoe.

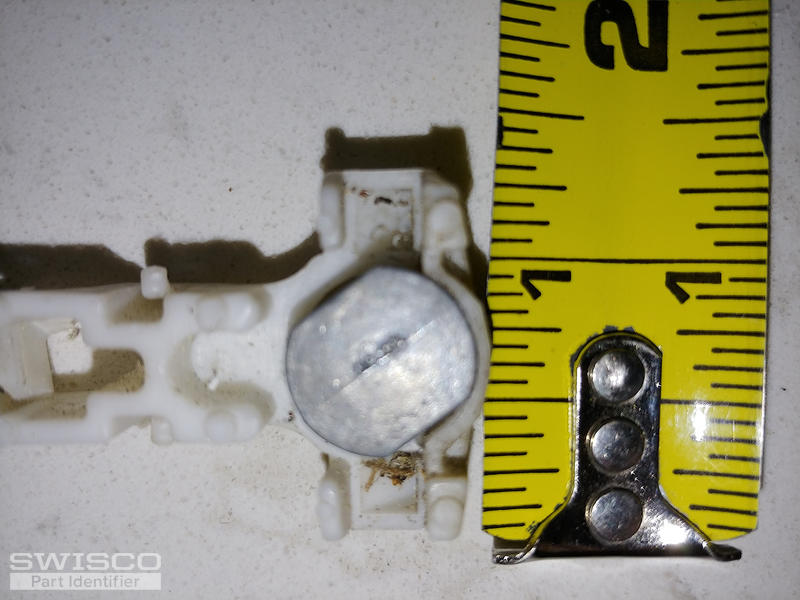

Thumbnail of the uploaded file named 0531201333.jpg

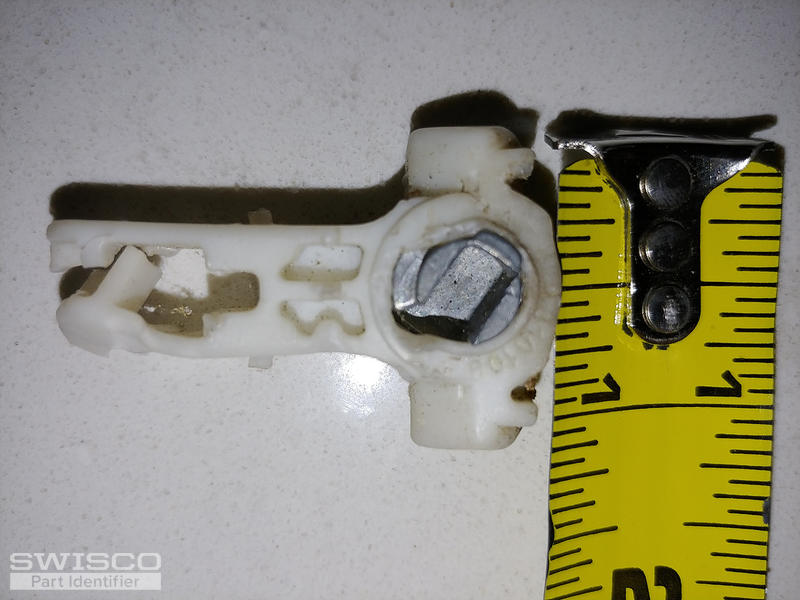

Thumbnail of the uploaded file named 0531201206.jpg

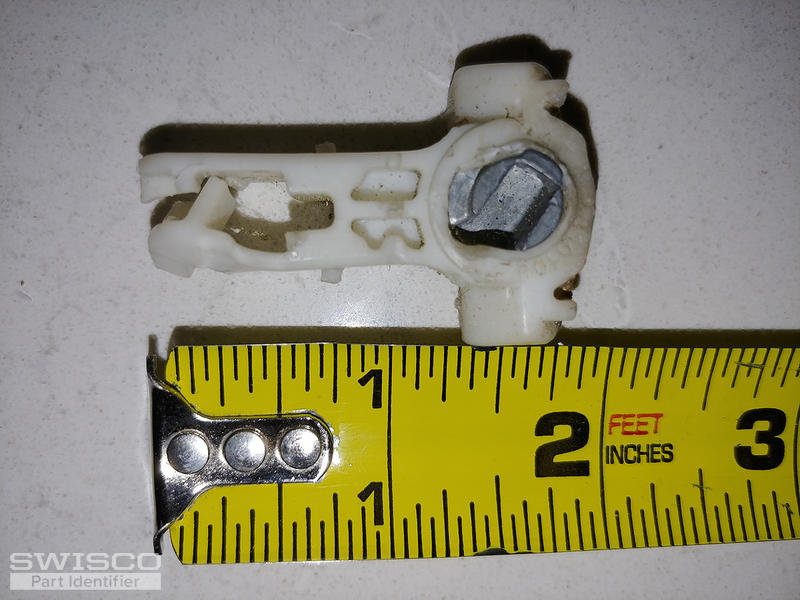

Thumbnail of the uploaded file named 0531201205.jpg
Profile picture of Bob
Bob from SWISCO responded:

I think in that case the 26-366 should work, so long as the dimensions are otherwise the same. The 15-195 is certainly compatible with this particular T-Lock Shoe.
