Replacement Pivot Shoe Needed

A home owner from Chicago says:
August 10, 2020
Hi there-

I am looking to replace this pivot shoe for my window.

The following are the dimensions of the shoe:

height - 1 7/8 in
width - 1 1/4 in
thickness - 3/4 in

Can you please help me out with this?

Thank you,
Alyssa
Thumbnail of the uploaded file named IMG_2012.JPG
Thumbnail of the uploaded file named IMG_6643.JPG
Thumbnail of the uploaded file named IMG_9232.JPG

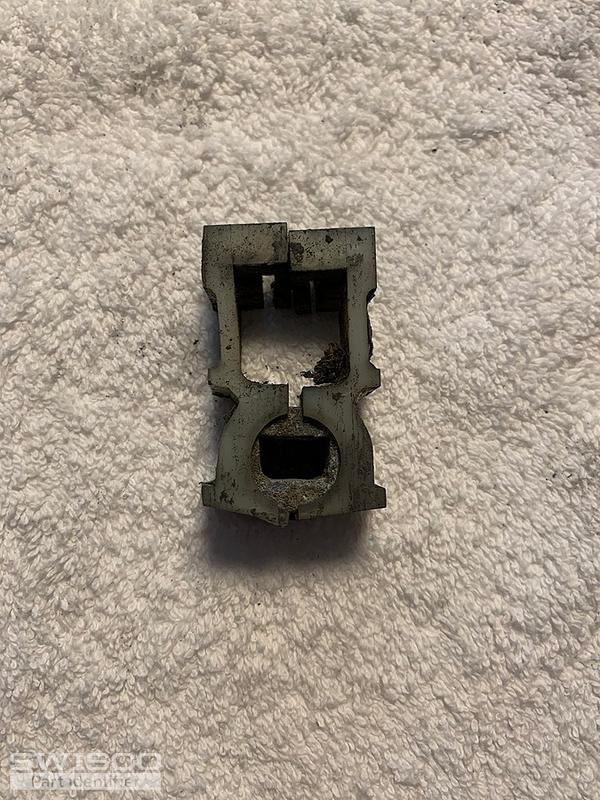

Thumbnail of the uploaded file named IMG_2770.JPG
Profile picture of Tom
Tom from SWISCO responded:
August 13, 2020

Hello, Alyssa. We don't  have a shoe in this style with a 3/4" thickness, but give us a little more time to look into it for you. We'll do our best to track something down.
A home owner from Chicago says:
August 13, 2020
Hi Tom,

Thanks for your response. I would appreciate if you could look into other options for me. I'd like to get my windows working before the summer ends. Thanks for your help and looking forward to hearing back from you soon.

Best,
Alyssa
Profile picture of Paul
Paul from SWISCO responded:
August 14, 2020

We have the 15-120 pivot shoe, which is slightly thicker then yours at 13/16". Your shoe might have worn down from constant use through the years. One concern I have is the size of the rectangular cam hole, which is 1/2" wide by 5/16" high on ours. If that matches then this may be a workable replacement.
Pivot Shoe, 3/4" Thick
Pivot Shoe, 3/4" Thick
15-120
