Replacement Sash Balance

A quick learner from Oakland Park says:
March 13, 2022

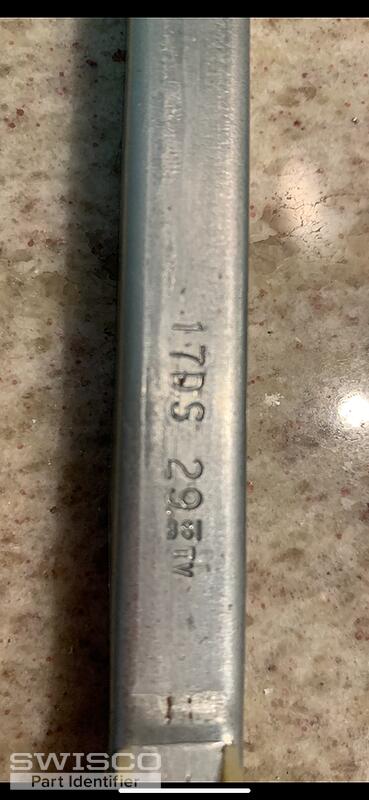

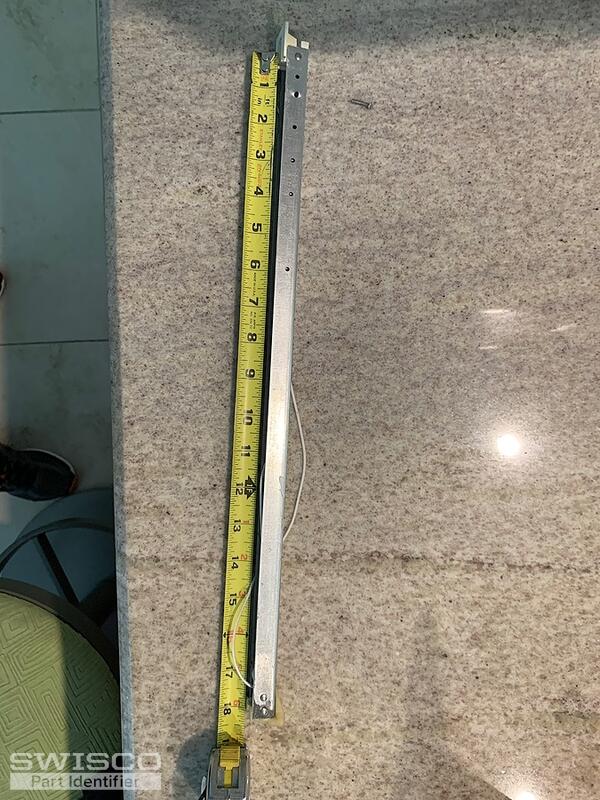

Have broken Sash Balance/window Balance that needs replaced. Do you have a replacement part that includes the nylon/plastic parts? Please see pictures below metal portion is 18" and a total length including nylon portion is 18"3/4 .
Any help you can provide is appreciated
Thumbnail of the uploaded file named A62FE29C-139F-4D43-A0D7-A75306ADB12E.jpeg
Thumbnail of the uploaded file named BBFD15D0-1D6A-4E42-BD10-652C4932BCC7.jpeg
Thumbnail of the uploaded file named 17DS29 BSI
Thumbnail of the uploaded file named 17DS29BSI
Thumbnail of the uploaded file named C3AB56AB-4819-4032-9323-C16A8D8316AC.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 16, 2022

We can definitely supply this balance, but it will have to be a custom order not only due to the configuration of nylon fittings but also the heavy duty 17DS29 stamp. Before we go any further, can you just tell me how many you needed?

Once I know that, I will email you a purchase link and price quote that will allow you to add that quantity to your cart.

To summarize, we would be sending you custom made 18" long channel balances with a 19-041 top and 15-005 bottom nylon fitting, and a 17DS29 stamp. These will come pre-assembled and ready to install out of the box.
Winged Channel Balance Shoe, 1" Depth
Winged Channel Balance Shoe, 1" Depth
15-005
$0.74
Channel Balance Top, New Security
Channel Balance Top, New Security
19-041
$1.30
