right hand side surface mount latch is pictured
pictures exclude spring (which has been lost)
Make/Model unknown
window brand unknown
2+13/32" between screw hole centers

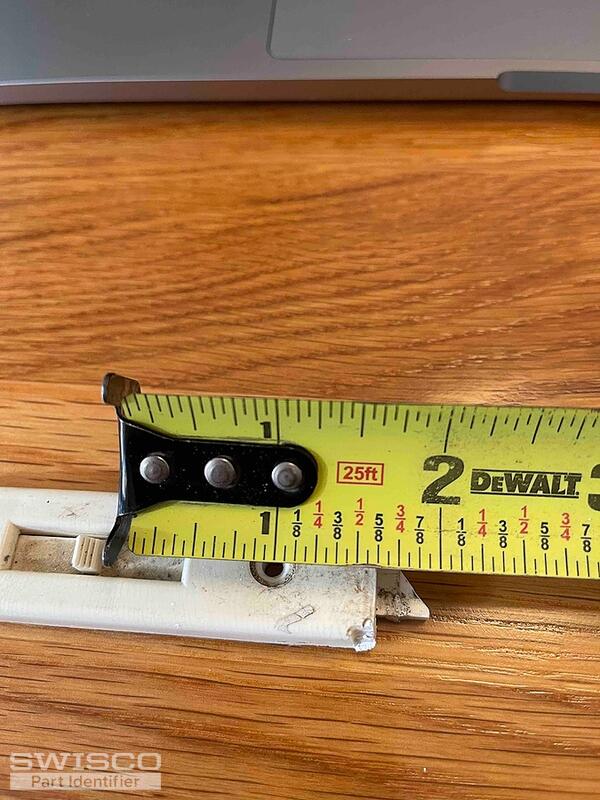

edge offset: 5/8" (from outer-most-screw-hole-center to edge, see img_1810.jpg)
7/8" wide x 3+3/8" long
tooth extends 3/8" when fully extended

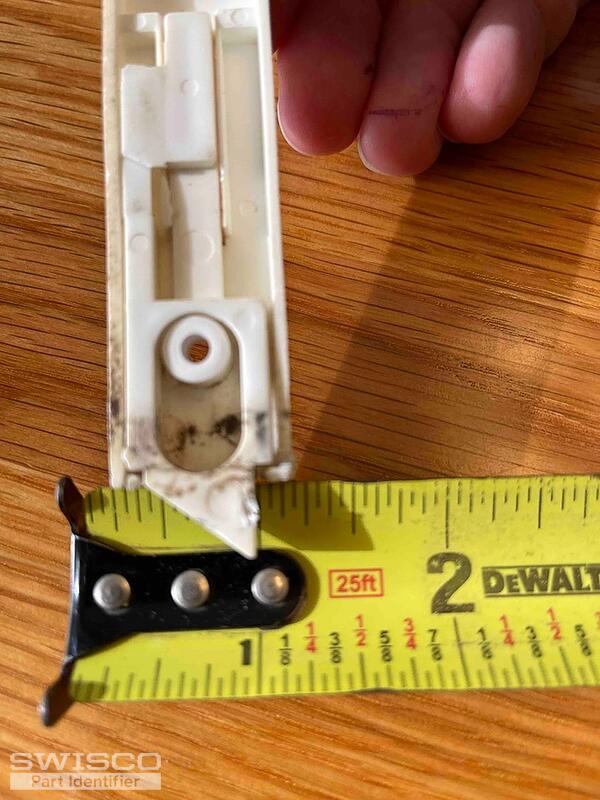

tooth clearance (img_1809.jpg) is 3/16"
I will need them for 7 windows (7 left and 7right= 14 total)
optimum color is white
The closest I could find on your website is 26-177, which is .25" too wide (measuring 1+1/8" instead of 7/8"). Will this still work?
Replacement Surface Mount Tilt Latch
Quick Learner from Blacksburg, VA
Jul 2, 2025 6:37 pm
5 user uploaded images
2 Replies
