Replacement Sweep for Cole Sewell door

Home Owner from Emmaus

Mar 7, 2018 12:34 pm

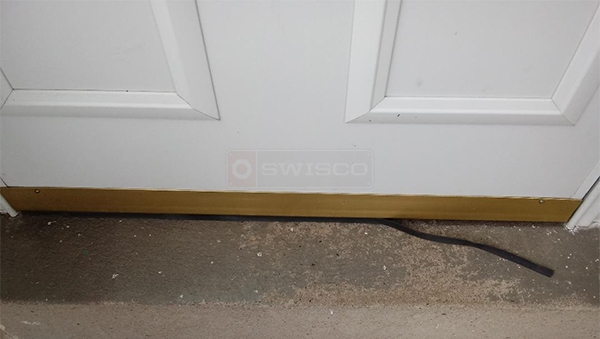

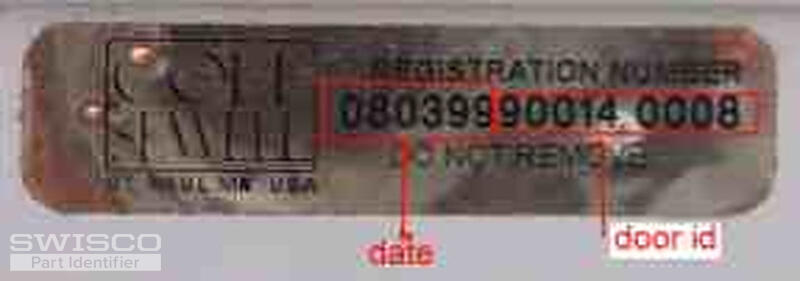

36 inch Cole Sewell door, need 2 replacement sweeps, serial # 07039896017 reg. # 19. could you please tell me if you have these and how to order them.

Thank you,
Dana C

5 Replies

Tom from SWISCO

Mar 12, 2018 10:02 am

Hey, Dana. I'm not sure if we can replace this sweep since Cole Sewell has been out of business for many years now. We may be able to find a substitute, at least. Could you remove an undamaged sample of this sweep and show us a clear picture of its end profile? That will let us see its shape, which is essential to finding a match. Knowing the size of the end profile will also be a big help.

Home Owner from Emmaus, Pennsylvania

Mar 19, 2018 3:18 pm

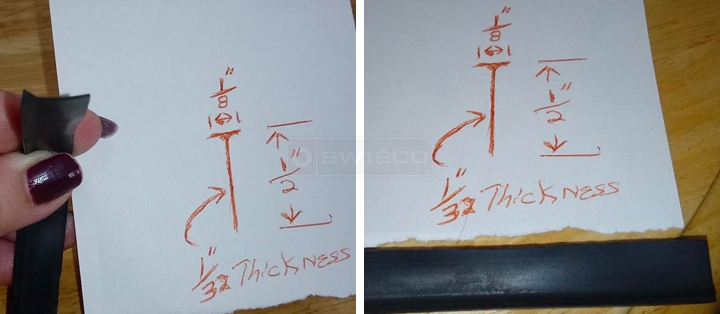

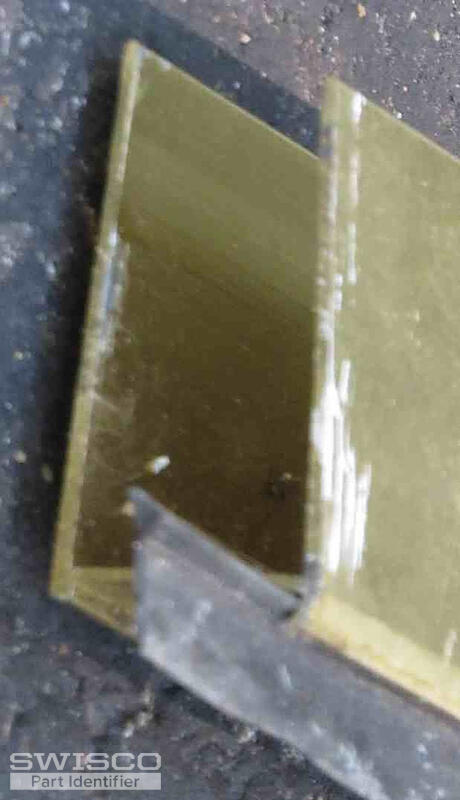

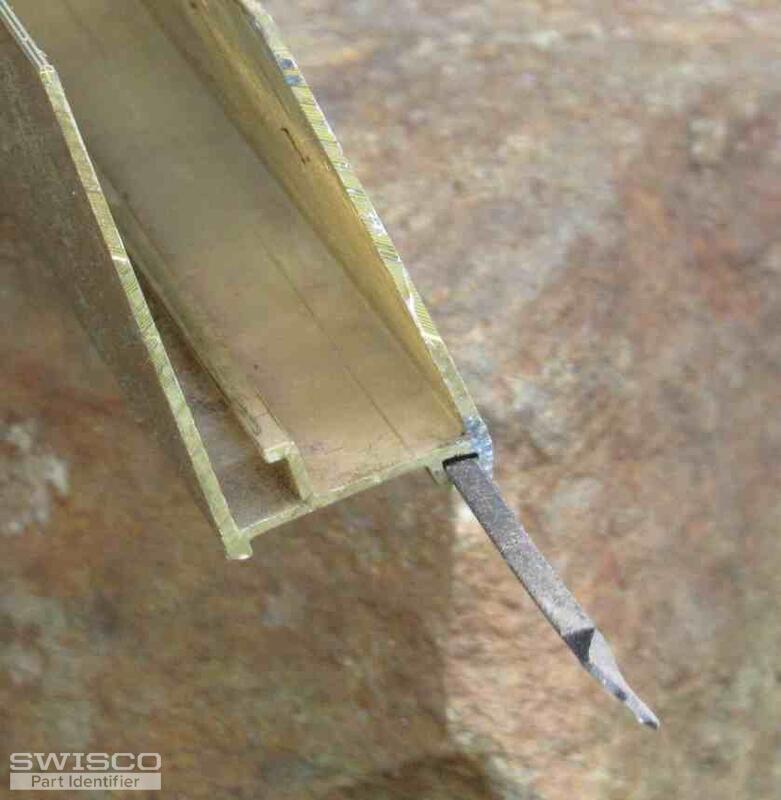

Here are the pictures you requested. I hope they help.

Dave Sr. from SWISCO

Mar 21, 2018 12:50 pm

Take a look at the 58-162 replacement vinyl sweep. The measurements look close to yours.

Home Owner from Massachusetts

Sep 9, 2018 4:50 pm

The 58-162 works great on the Cole-Sewell door as illustrated above and below. The 1/8" width is same size as needed. Note, some installers have crimped the V groove to keep the rubber sweep from sliding out. Just UN-crimp so the new gasket will slide into the groove. Top of gasket is 1/8" wide ---same as opening.

3 user uploaded images
