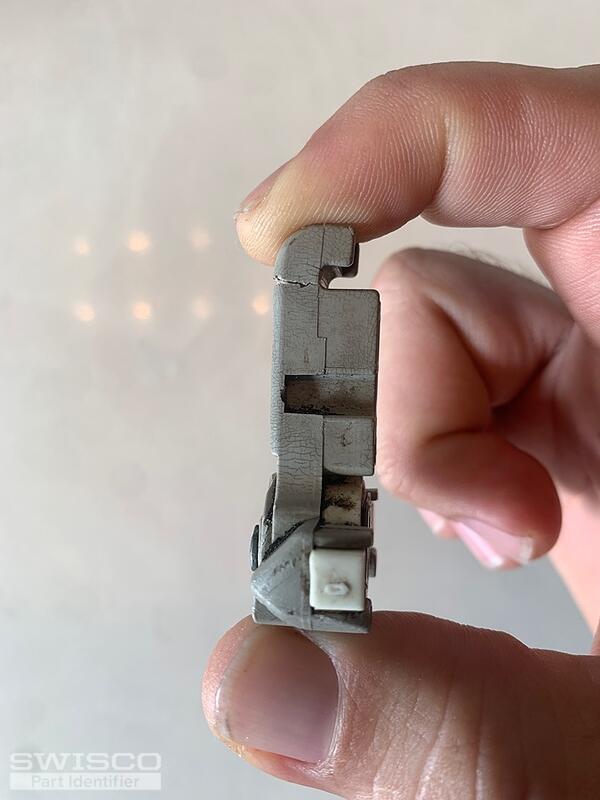

I'm looking for a replacement T-Lock for my standard, builder-model windows. Several have split at the top, rendering the entire lifting mechanism useless. There are only three numbers that I can make out. One is a patent number that circles the cam (PAT# 4610108) and another that is at the top of the the "stem" with a different one (PAT# 0467490). The last is along the side of the "stem" of the cam that looks like it could be 6,679,000.
Any help in identifying a suitable replacement would be awesome. Thanks in advance!
Replacement T-Lock
Handy Person from South Carolina
Dec 18, 2023 2:16 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Dec 19, 2023 2:04 pm
Hello,
If the t-lock shoe is the only damaged part of the balance, take a look at the 15-195B. This shoe has the same open-cam design as yours but review the dimensions below to ensure that they match up to yours. Thanks for posting!
Dimensions for 15-195B
Dimensions for 15-195B
Alternate view of 15-195B
