Replacement Track

A home owner from Fenton, Missouri says:

March 20, 2020

I'm not able to tell what track I should purchase for my metal bi-fold doors. My doors are from the early to mid 70's. Our whole house has them but the one in the family room was replaced with wooden 6 panels (junk). The previous owner left the old doors in the basement thankfully. I am able to find all the replacement hardware but unsure which track to buy. At first I thought it was 21-452 but I saw a previous posted question with similar doors and 21-401 was suggested. I have restored all the other ones in the house as seen in the picture.

Thumbnail of the uploaded file named IMG_4882.jpg

Thumbnail of the uploaded file named IMG_4883.jpg

Thumbnail of the uploaded file named IMG_4884.jpg

Casey from SWISCO responded:

March 23, 2020

I can understand the confusion. When recommending replacement bifold door tracks, it ultimately comes down to seeing what type of pins you're currently using with these tracks. We will need to see some photos of your pins before we can go any further. Thank you.

A home owner from Fenton, Missouri says:

March 23, 2020

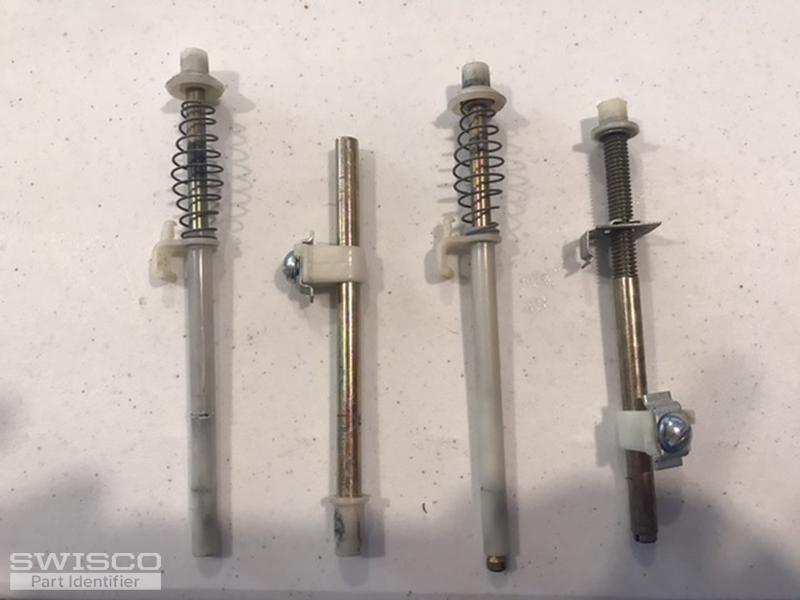

This is the hardware off one side of doors. If you could confirm these part numbers as well it would be greatly appreciated.

Thumbnail of the uploaded file named BF463DFF-03FC-40BB-8ACF-1FF512D34987.jpeg

A home owner from Fenton, Missouri says:

March 26, 2020

Any update on this? I'd like to order right away.

Paul from SWISCO responded:

April 1, 2020

Thank you for your continued patience with us. We recognize your bi-fold door pins that are used by Slimfold company. In your photo you show two pins very similar to our 21-007, and one 21-001 bottom adjusting pin. The other pin is used for the top pivot that the company now uses our 21-007 pin as a replacement. So for each door you would need three 21-007 and one 21-001 pin. The tracks would be our 21-401 through 21-404 depending on the width of your door opening. Look over all the parts mentioned and get back to us with your thoughts.

Bifold Door Guide Pin

21-007

$3.87

Bi-fold Door Pivot Assembly

Bifold Track, 3' Opening

21-401

$8.71

Bifold Track, 5' Opening

21-402

$17.15

Bifold Track, 6' Opening

21-403

$18.57

Bifold Track, 4' Opening

21-404

$12.75
