Replacement Track

A home owner from North Dakota, USA says:

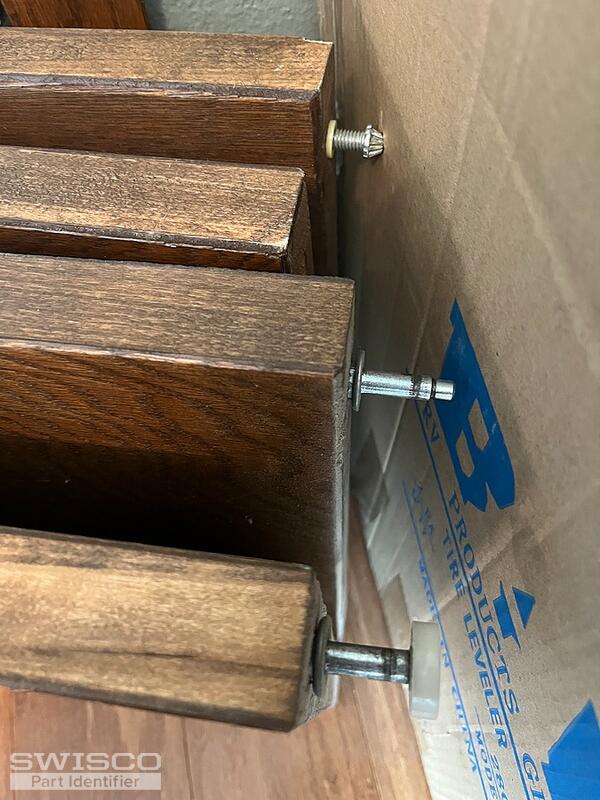

We are looking for a replacement track for our 1970s-era bifold doors (48" opening). I've attached a photo of the top and bottom ends of the doors hoping you could tell me if this item would be the correct item to order: 23-454 .

We are looking for brown to blend into the wood, most places only have white.

Thanks in advance!


Thumbnail of the uploaded file named IMG_3278.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Amy. I'm not sure that the 23-307 will work for you. The bracket in this track is only made to accommodate a pivot with a 7/16" diameter, like our 23-121 . You need to check to see if yours is the same size.

If not, you could consider replacing your top guides with our 23-121 , but you would have to first check to ensure that it will fit in your door to begin with. Please also note that the 23-455 is 3/4" wide.

To be honest, I'm not sure if the 23-454 is the best pick for your job. I know you wanted this in brown but that may not be realistic. A total replacement kit like the 23-505 would probably be better suited to your particular door.

Dimensions for 23-121
Dimensions for 23-121
