Replacement Track for Closet Mirror Doors

A home owner from Pittsburgh, PA says:
March 10, 2023
Hello,

I threw away the closet door floor tracks early on in a remodel and want to be sure I am ordering the correct replacements. The tops of the doors just have guides that sit in the divider tracks. I believe I need the 23-241 60 inch. The wheel width is 5/16 and the whole wheel unit width is 9/16. I have images of the doors and wheels. I appreciate your guidance.

Thank you!
Dan

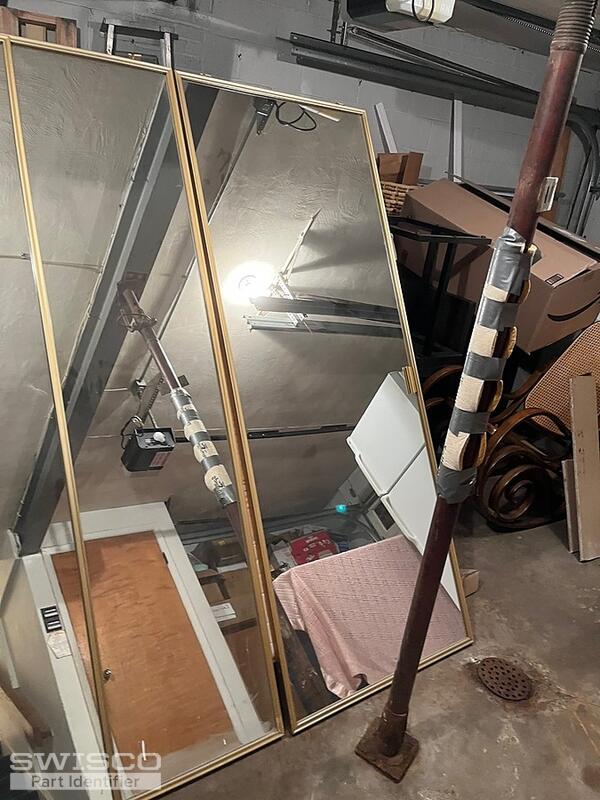

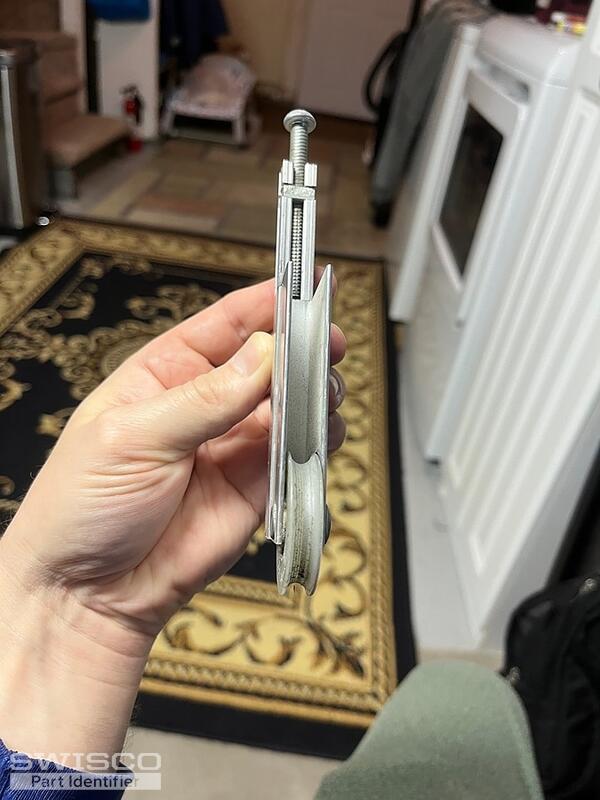

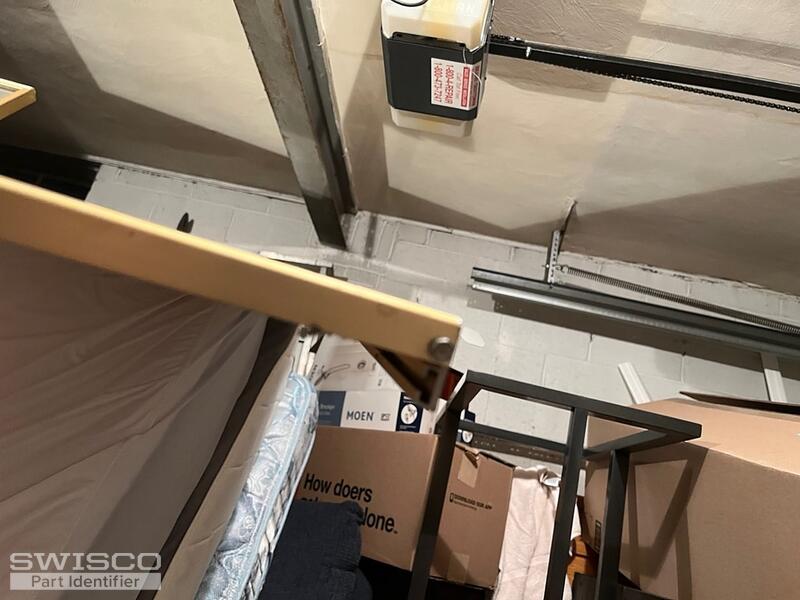

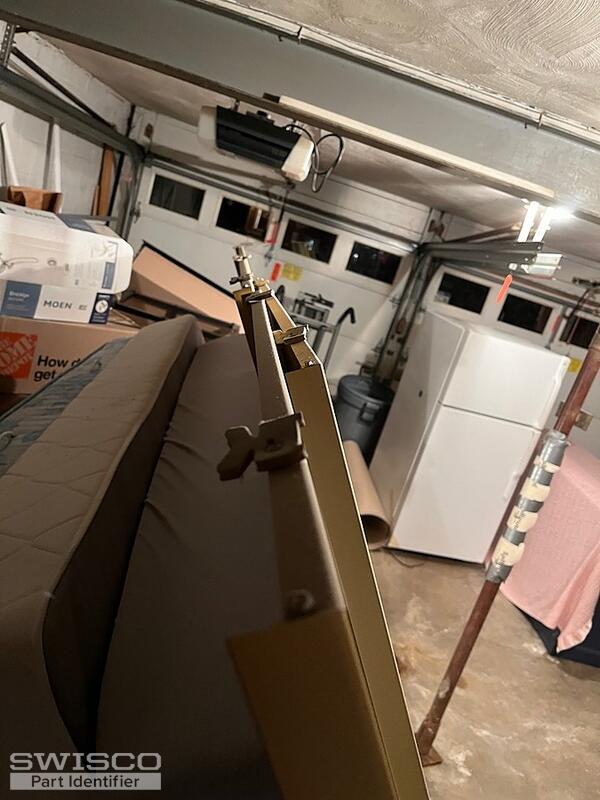

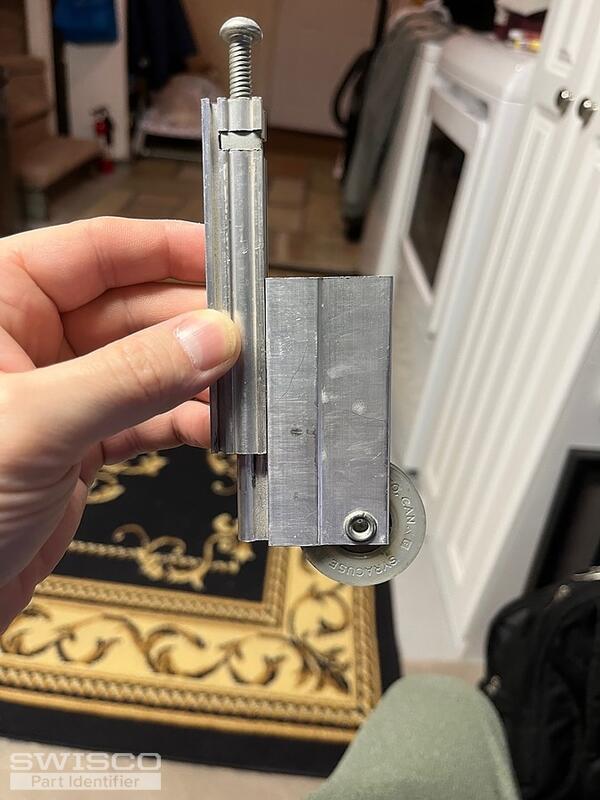

Thumbnail of the uploaded file named Closet Doors 2.jpg
Thumbnail of the uploaded file named Closet Doors 3.jpg
Thumbnail of the uploaded file named Closet Doors 4.jpg
Thumbnail of the uploaded file named Closet Doors 5.jpg
Thumbnail of the uploaded file named Closet Doors.jpg
Profile picture of Emily
Emily from SWISCO responded:
March 13, 2023

Hi, Dan.

Thank you for reaching out to us! Your roller wheel appears to be concave which wouldn't be compatible with the 23-241. I recommend a track that's meant to work with concave wheels like the 23-271. Look over the specifications and let me know if you have any questions.
60" Sliding Mirror Door Bottom Track
60" Sliding Mirror Door Bottom Track
23-241
$22.87
59" Bottom Concave Roller Track
59" Bottom Concave Roller Track
23-271
$22.38
