Replacement Tracks are Needed to Fix Closet Door

A home owner from Michigan says:
August 20, 2020

I have a 30" mirror bifold closet door that has been off the track since I bought my house (previous owners broke the bottom track when they were moving out). I've looked at every track I could find at local hardware stores and nothing works.

The track itself doesn't have any readable markings, but the pivot blocks (all of which are still in good shape) are the acme 17-4405.

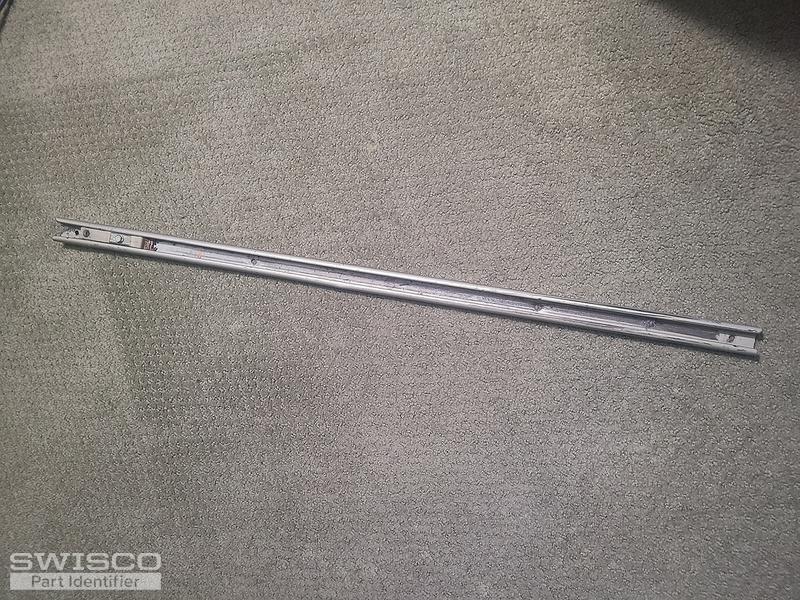

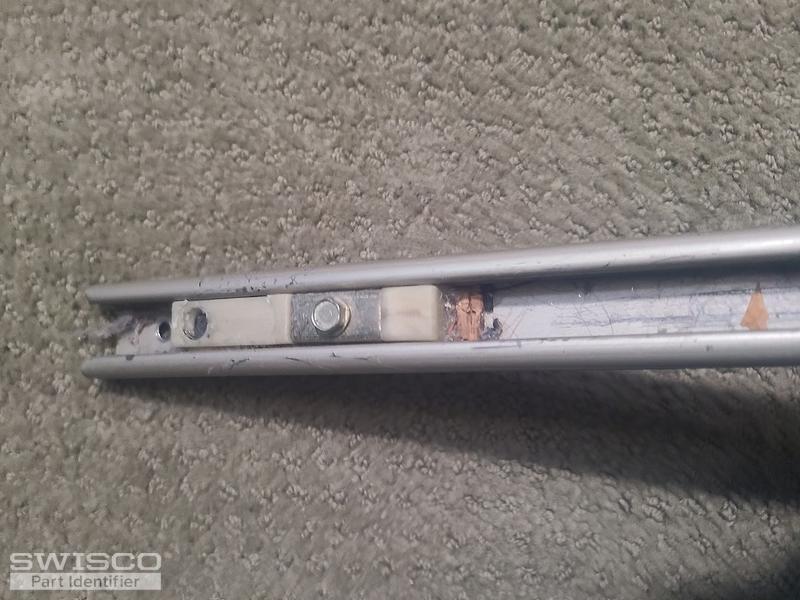

I believe I found the bottom track in the basement with other taken down closet doors. It is missing all parts other than what the picture shows.

Thumbnail of the uploaded file named 15979641394365682601929045967507.jpg
Thumbnail of the uploaded file named 15979641766481212868319798480363.jpg
Thumbnail of the uploaded file named 15979647437168486448836921490693.jpg
Thumbnail of the uploaded file named 15979647580737240002307861682155.jpg
Thumbnail of the uploaded file named 15979647734094665699102104579593.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 25, 2020

It looks like you're showing two different sized tracks: a high profile, then a low profile. The high profile isn't made anymore, unfortunately, but we still do sell the low profile. See our 21-452 and let me know if this would work for you.
A home owner from Michigan says:
August 26, 2020
The low profile would work, however it needs to be 30". The link you included was for a low profile track that is 36", which would be too long.
Profile picture of Tom
Tom from SWISCO responded:
August 26, 2020

We do not have a 30" track in this style, unfortunately, but these tracks can be cut down. You can use any fine tooth hacksaw.
A home owner from Michigan says:
August 26, 2020
I could do that, but it is just the pivot brackets, roll guides, and snuggers that need to be replaced. Is it possible to order just those parts or should I just get the full replacement track and trim it down?
Profile picture of Tom
Tom from SWISCO responded:
August 26, 2020

Sure, that's totally possible. You can see all three parts you mentioned listed under "Related Item(s)" on the 21-452 store page. They're the 21-175, 21-286, and 21-174.
A home owner from Michigan says:
August 26, 2020
Thank you for your help!
