Replacement Truth Hinges for Vinyl Casement Windows

Question

Hello,

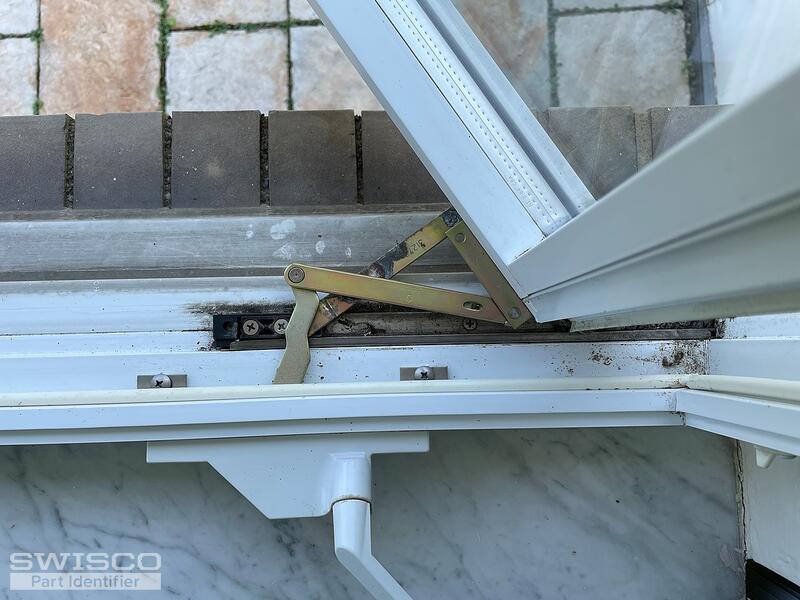

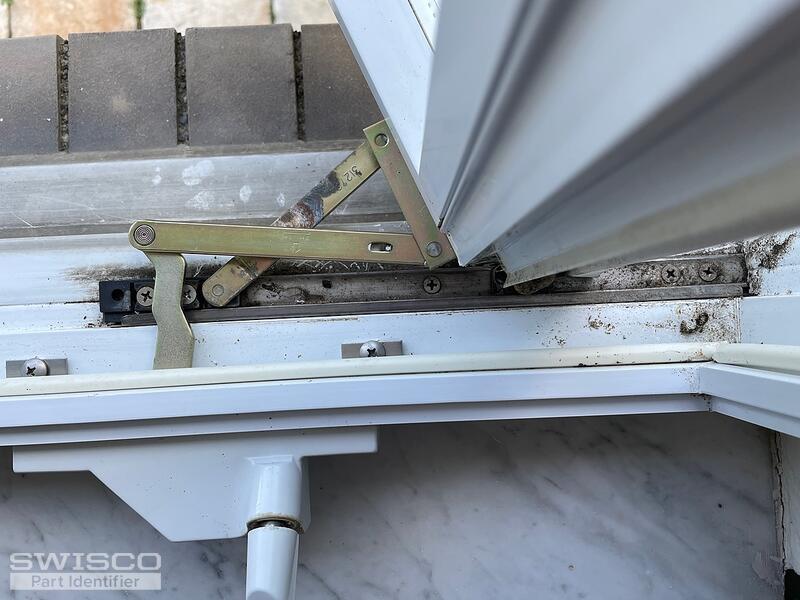

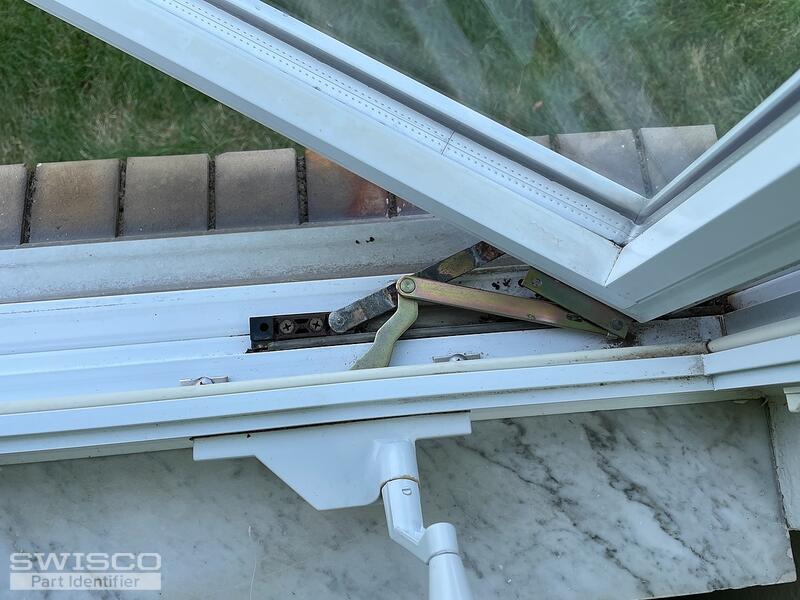

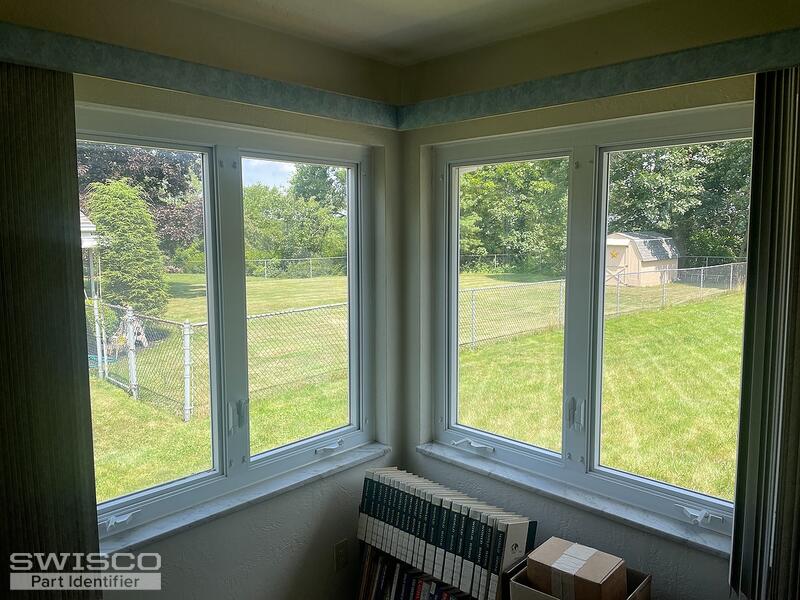

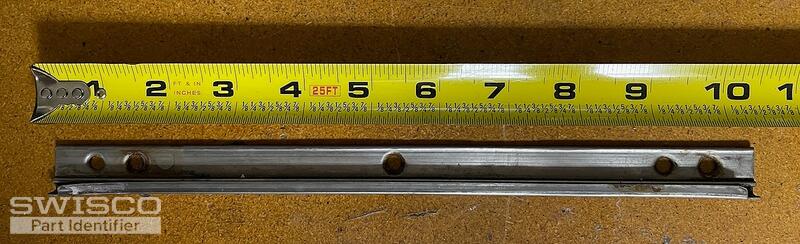

I have existing vinyl casement windows. The hinges on the bottom of the windows is corroded and needs replaced (both right and left side). The original hardware is stamped with the Truth logo. Please refer to photos and advise of part number, price, and availability of replacement hardware. The length of the hinge mounted on the underside of the window is 8", the length of the hinge mounted to the inside of the window frame is 10-5/8". In total, I require four sets of hardware (2 bottom left + 2 bottom right). My intention is to purchase new hinges and replace them myself.

Thank you in advance.

Gary

Bob · Accepted Answer

Hey Gary. Our 10" 36-048 Hinge Set is close to the dimensions you describe. See the diagrams below for reference, and let me know if you think this could work for you.

Detail of 36-048

Additional dimensions for 36-048

Each hinge set comes with a pair of hinges, but keep in mind we generally recommend replacing both hinges in the window when one has failed, especially if the new hinge differs slightly from the old one. This ensures the window continues to operate symmetrically. The video below showcases the replacement procedure, in case you need the extra reference. Let me know if you have further questions.
