Replacement Window Balance

Home Owner from California

Sep 22, 2020 11:48 pm

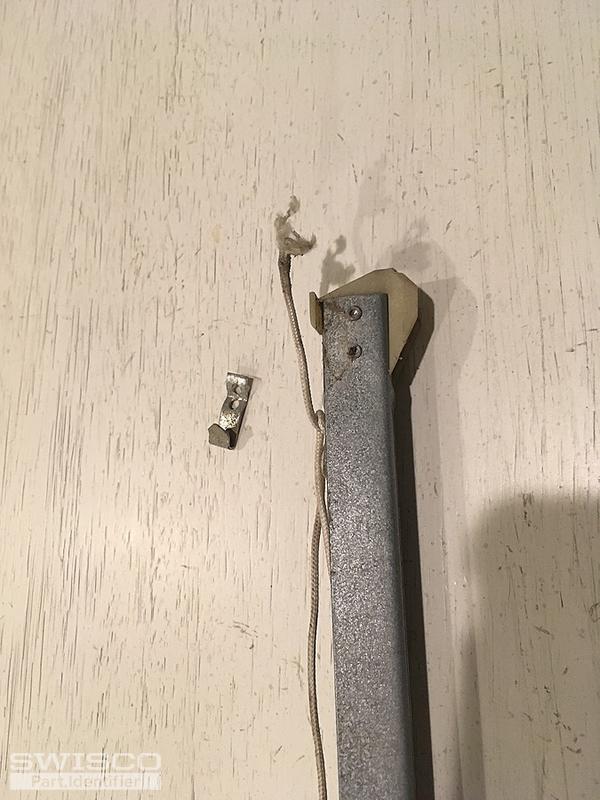

Hello, We need to replace our window balance. It is 15 inches (without the plastic pieces) and is stamped 1420. Thank you for your help.

4 user uploaded images

4 Replies

Bob from SWISCO

Sep 28, 2020 12:36 pm

This looks like either an S380-15 or S385-15, depending on the depth of the bottom nylon shoe. You will need a stamp option of 1420.

Home Owner from California

Sep 28, 2020 3:21 pm

Thank you. How do I distinguish between the S380 and the S385?

Bob from SWISCO

Sep 28, 2020 3:35 pm

Apologies, let me go into more detail. The difference between the Series 380 and Series 385 is the bottom nylon shoe depth, or what can be considered the 'heel-to-toe' measurement. See the picture below. The Series 380 has a shoe depth of 1". The Series 385 has a shoe that's 1-3/32" deep. Compare both with your old hardware to see what matches best.

Comparison of the S378, S380 and S385 balance shoes.
