I need to find a replacement part for two window balances. The original items are probably from when my house was built in 1993. It appears that the window sits on the white nylon(?) bottom pieces of the window balance and uses friction to hold the window in place when it is opened.
Window Frame: There is a top clip on each of the window channels. The hook on the balance only has one hole that it could hook into, but that hole is above the top of the window when the window is fully shut. There is one small hole at the bottom of the window channel.

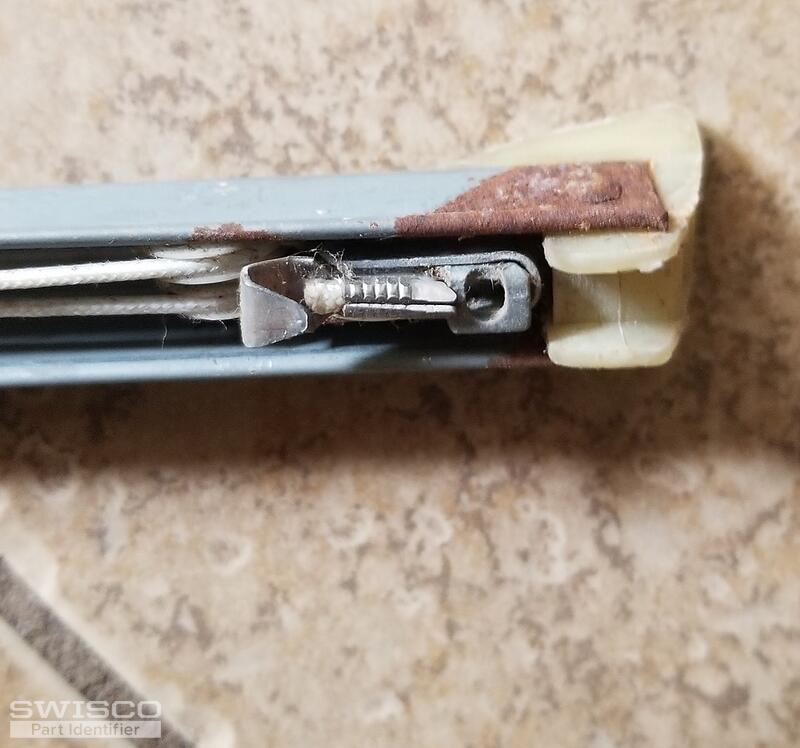

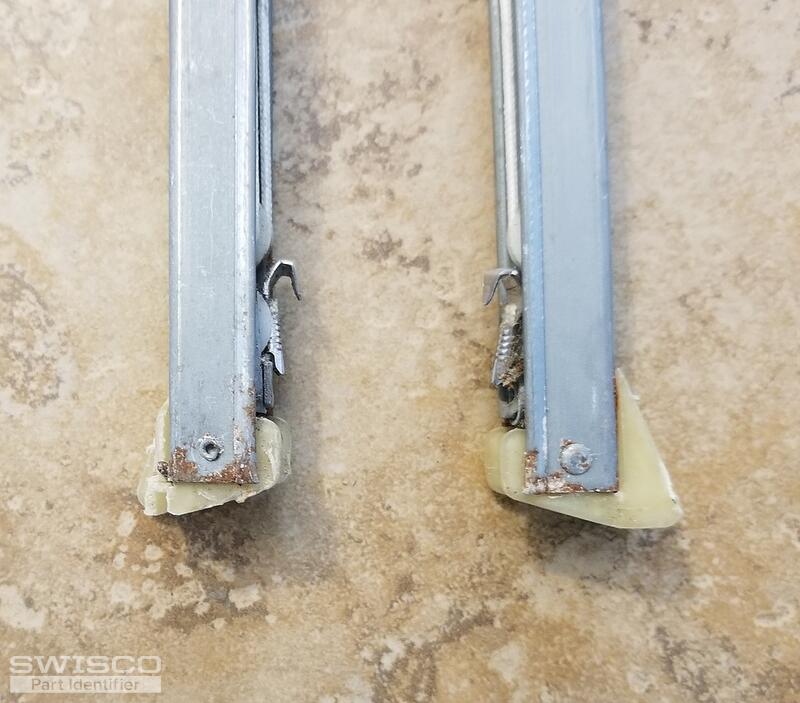

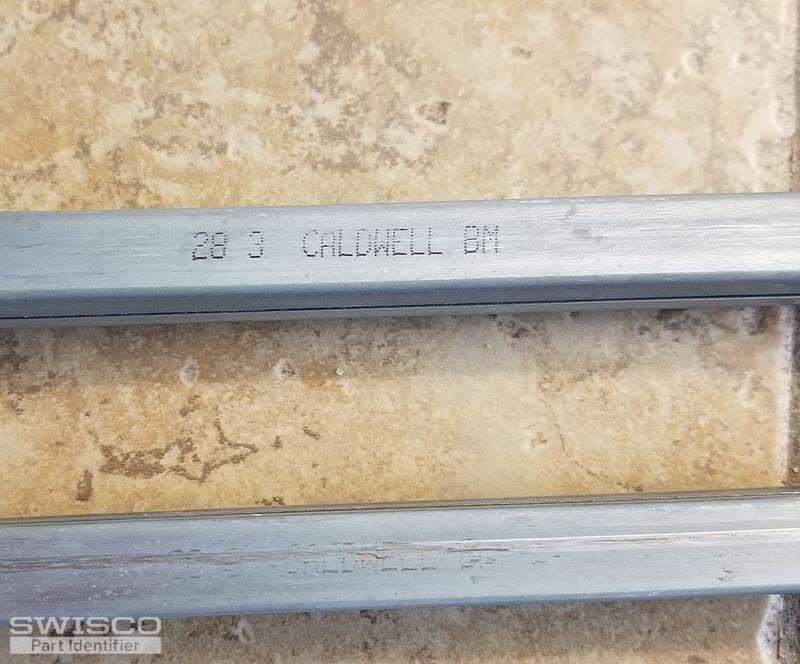

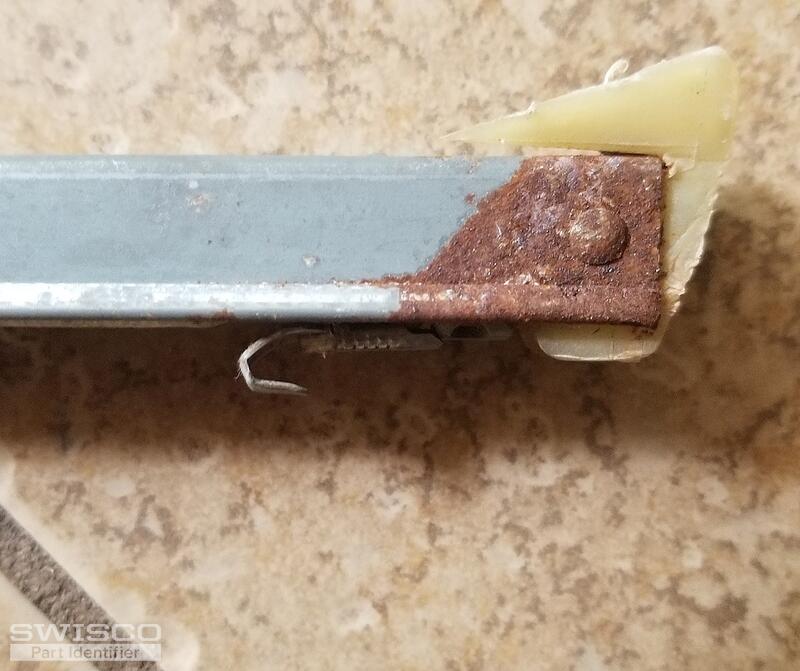

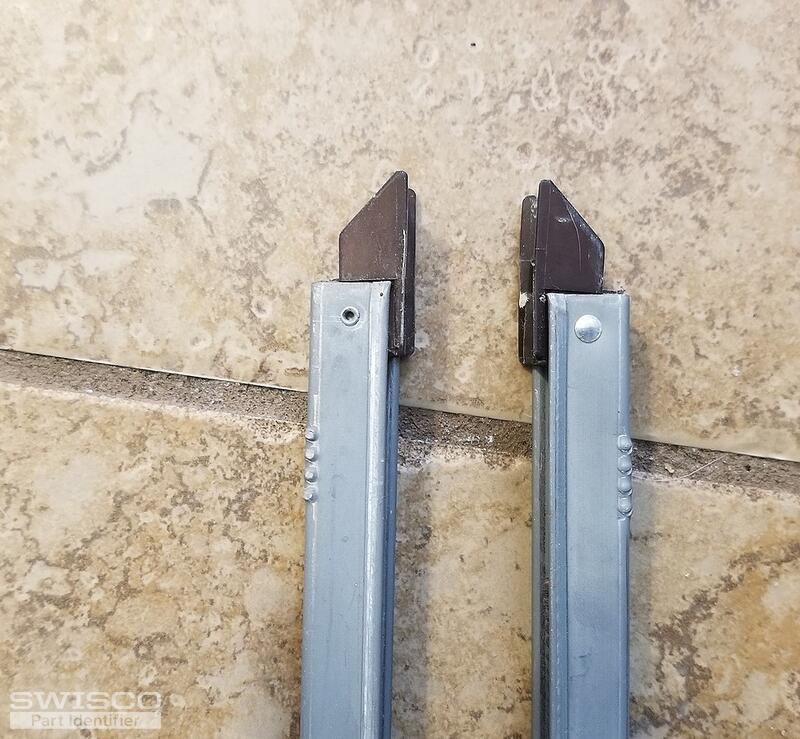

Window Balance: The metal part of the balance is 29". The width is 5/8 of an inch. There is a manufactures stamp "28 3 Caldwell BM." Has brown tips on the top. Has white nylon(?) pieces on the bottom. There is some rust and some degradation of the plastic pieces.
Window: Window is Jordan brand, aluminum frame, with double pane glass, 30" H x 34" W, and weighs 18.2 pounds.
Replacement Window Balances

Home Owner from Florida
Apr 25, 2023 5:20 pm
5 user uploaded images
2 Replies

Emily from SWISCO
Apr 26, 2023 10:22 am


Hi there!
Thank you for reaching out to us. Based on what I see here, you have the S351-29 or S390-29 channel balance. The best match will depend on the depth of the bottom fitting as shown below. You will also need to select the 2830 spring strength option per the 28 3 stamp.

Comparison of the S351 and S390 balance shoes.
