Replacement Window Channel Balance

Home Owner from Henderson, NV

Aug 7, 2020 12:25 am

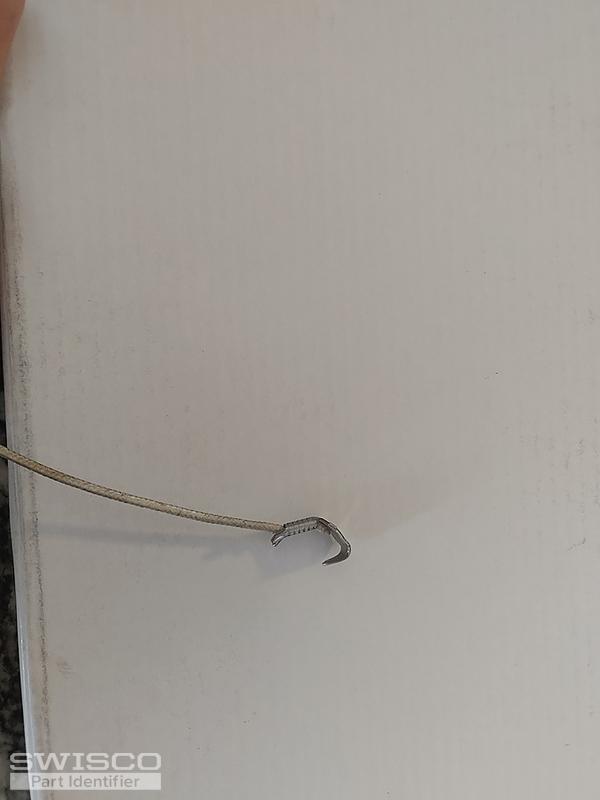

House will be going on the market soon and don't want to have any surprises when the inspectors/appraisers come to take a look. This balance had one of the cords break loose so the window would not stay up and was a safety hazard. Only marking on the balance is 26 4 GU CMC 2. Looking for a correct replacement so I can do both sides.

Thank you

3 user uploaded images

4 Replies

Bob from SWISCO

Aug 11, 2020 11:02 am

I am quite confident we can help, but can you show me good pictures of both nylon fittings on either end? I need to confirm their identity to decide what Series you need. Many thanks.

Home Owner from Henderson, NV

Aug 11, 2020 5:17 pm

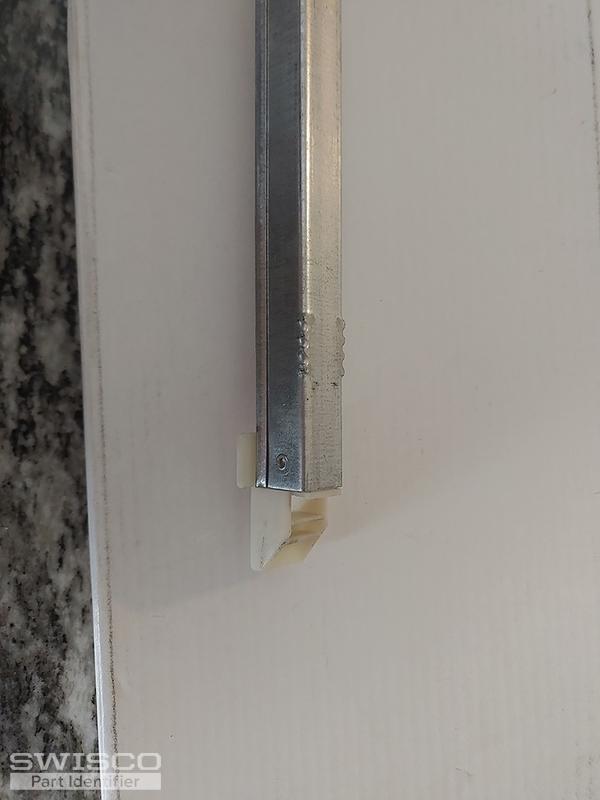

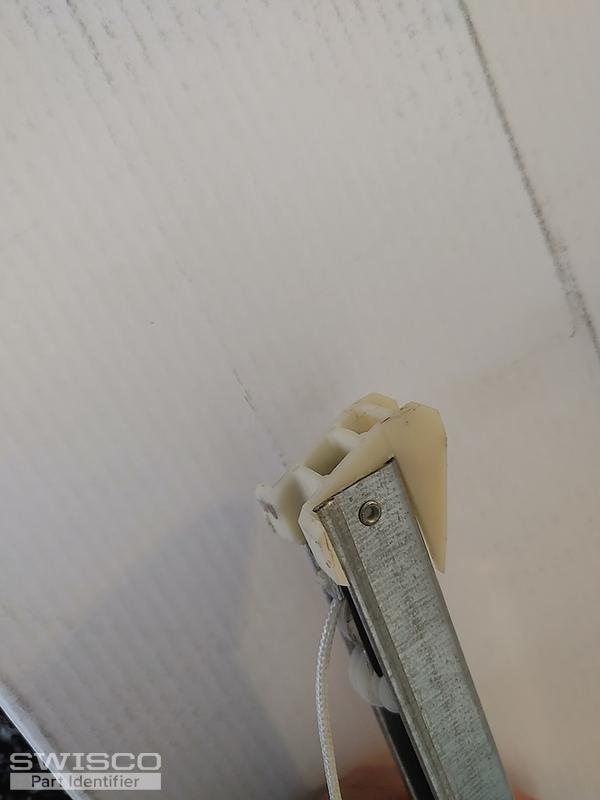

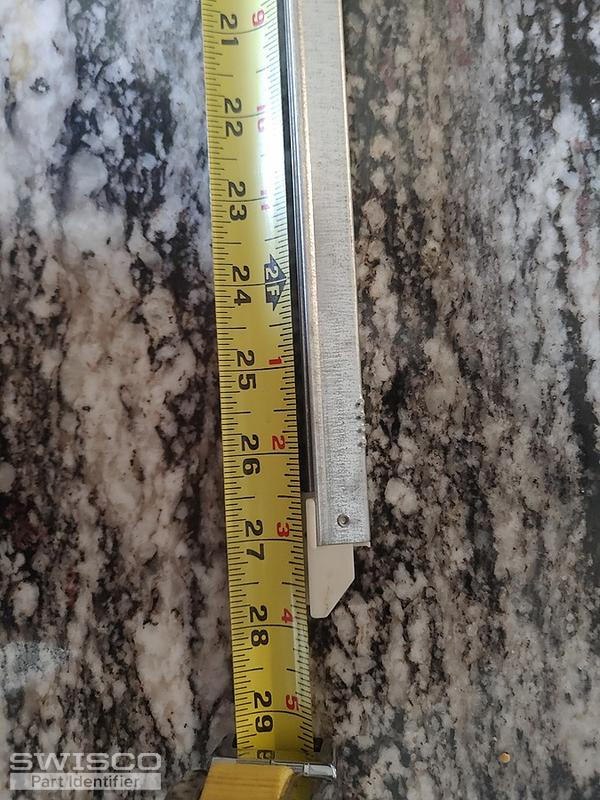

Attached are the photos requested. Total lenght of metal is 27"

4 user uploaded images

Bob from SWISCO

Aug 12, 2020 2:50 pm

Perfect, thanks. This looks like either an S380-27 or S385-27, depending on the bottom nylon shoe depth. In either case you'd need a stamp option of 2640.
