Replacement Window Channel Balances

Handy Person from Cave Creek Arizona

Apr 17, 2025 10:09 pm

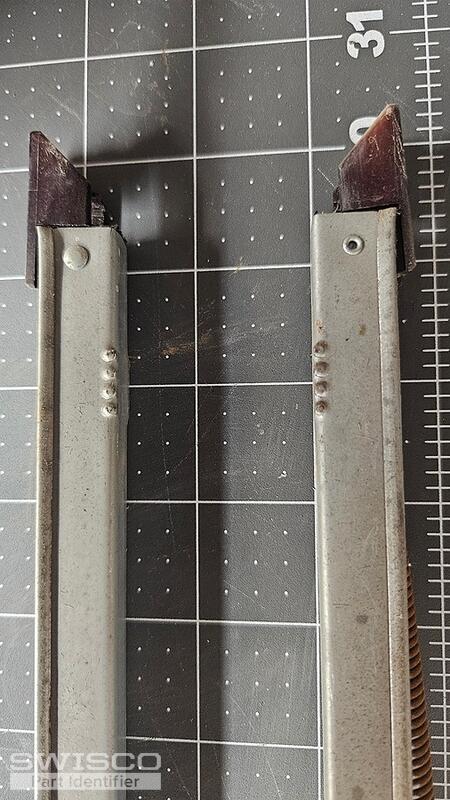

Current balances are identified as 28 2 GK and need to identify new parts. In the past, I have replaced the balances in another window and it was a Series 390 but a different size.

5 user uploaded images

4 Replies

Emily from SWISCO

Apr 21, 2025 12:17 pm

Hi there!

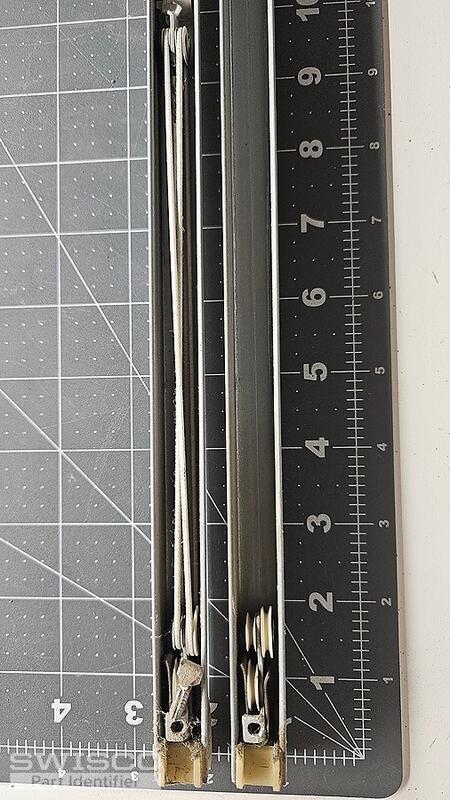

Your balances look like matches for the S351-29 or S390-29. If the bottom shoe is 1-1/8" deep, you'd want the S390-29 with the 2820 stamp option. Measure as shown below and see what you think.

Comparison of the S351 and S390 balance shoes.

Handy Person from Cave Creek Arizona

Apr 21, 2025 12:50 pm

The measurement is 1 inch. So the S351-29 would be the appropriate channel balance. Do I need any options?
Thanks!

Emily from SWISCO

Apr 21, 2025 2:04 pm

Great! You can select the 2820 stamp option based on your old 28 2 stamp.
