Replacement Window Lock

Quick Learner from Virginia

Jun 8, 2021 2:49 pm

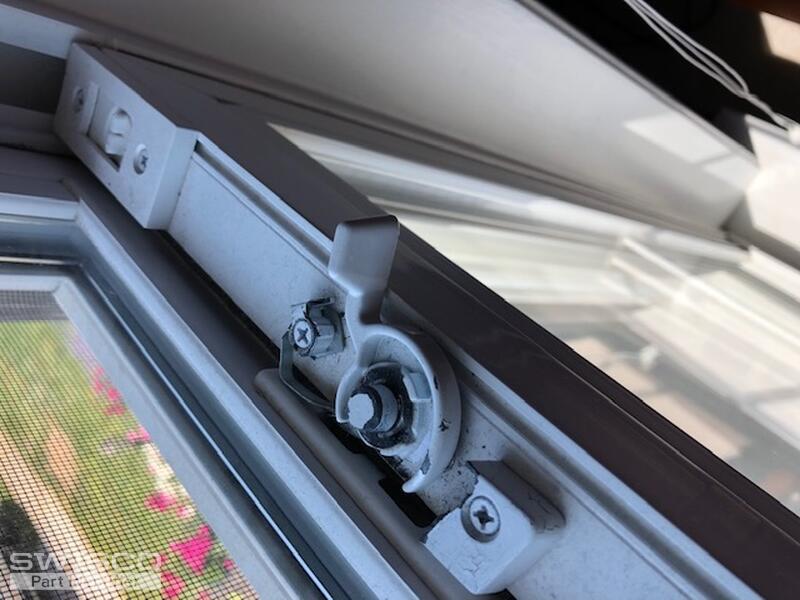

I am in need of replacement window locks. One completely broke-off and the other is cracking as can be seen in one of the pictures. These are on 9555 Series Windows by MI Home Products installed in 2005, which they no longer carry. Please let me know if you need additional information, and thank you for your assistance in finding the right part.

5 user uploaded images

7 Replies

Quick Learner from Virginia

Jun 9, 2021 10:09 am

Additional picture.

1 user uploaded image

Emily from SWISCO

Jun 11, 2021 1:35 pm

Hi there!

Could you let us know the installation hole center spacing for your sash lock and keeper? That'll help us narrow down some of your options.

Thank you!

Quick Learner from Virginia

Jun 15, 2021 10:43 am

Hi Emily!

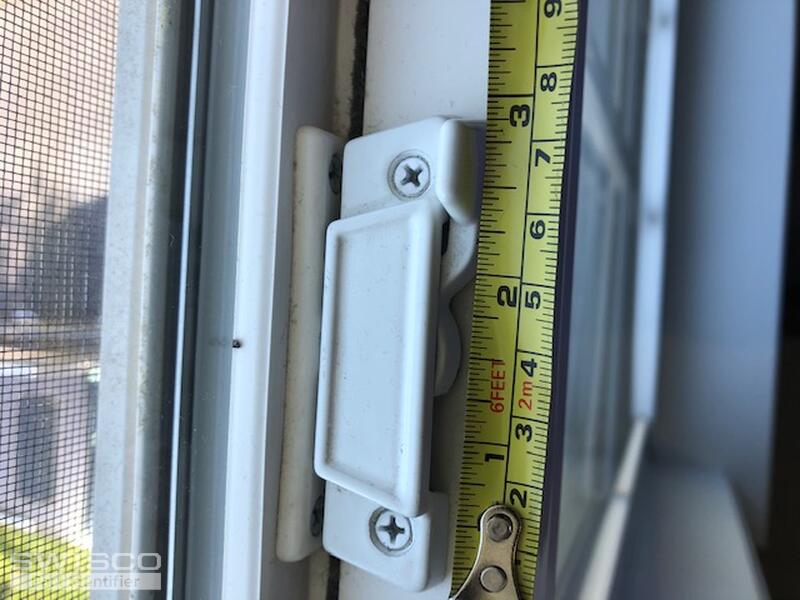

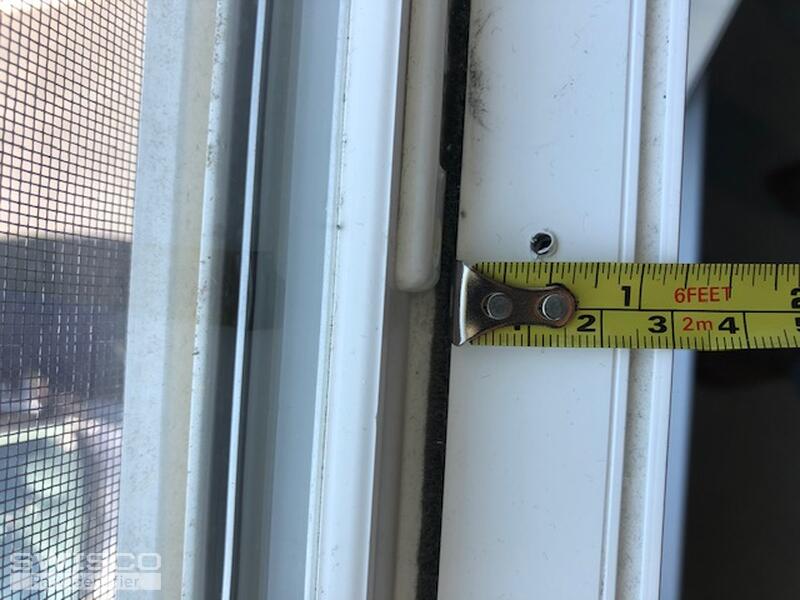

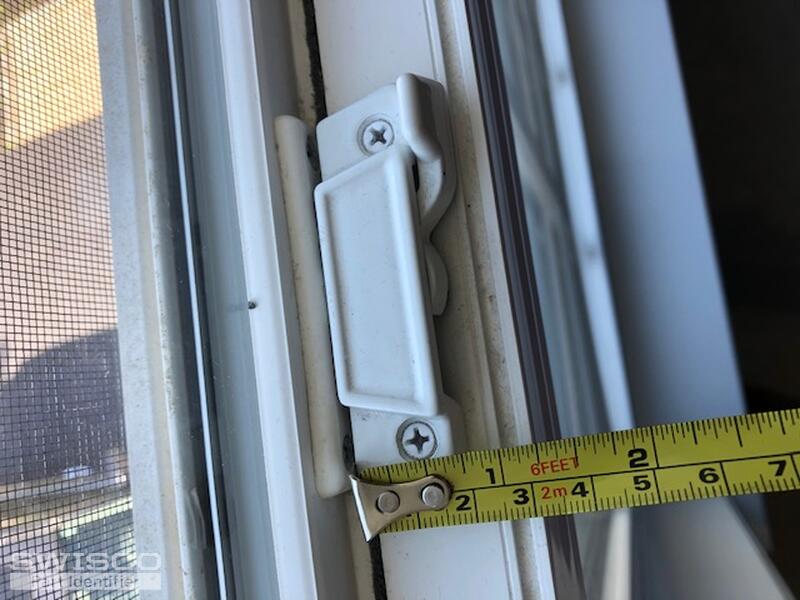

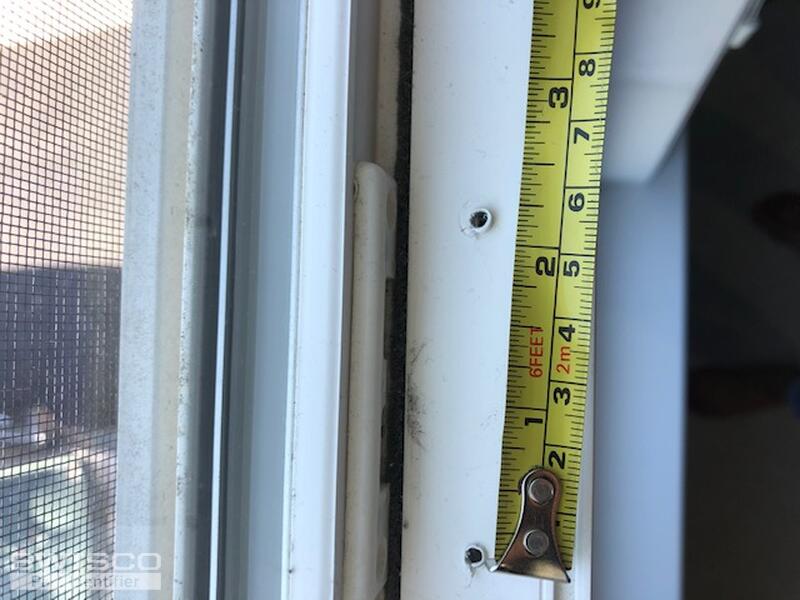

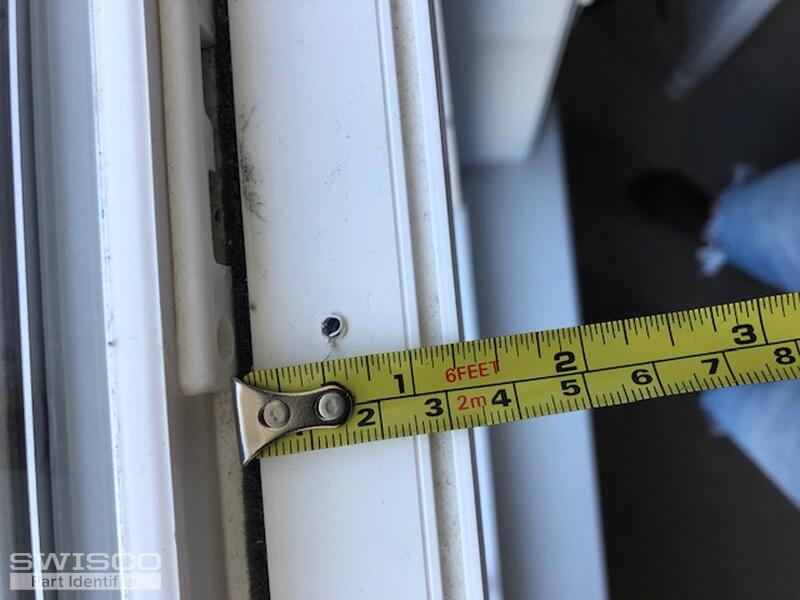

I added some more pictures with measurements. Hope it helps.

Thank you!

5 user uploaded images

Emily from SWISCO

Jun 16, 2021 8:18 am

I'm afraid I can't make out the measurements. Often times a picture of the tape measure isn't enough when it comes to identifying parts. Could you write out your installation hole center spacing?

Quick Learner from Virginia

Jun 16, 2021 10:04 am

The center measurement from hole to hole is 2 1/4 "

Emily from SWISCO

Jun 17, 2021 8:26 am

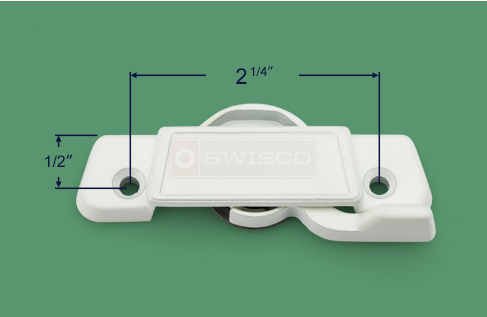

Take a look at our 90-308 and 90-309 sash locks. Carefully look over our dimensions and compare them to your current hardware to see if this matches up for what you need.
