Replacement Window Lock Shoe

Question

Good day,

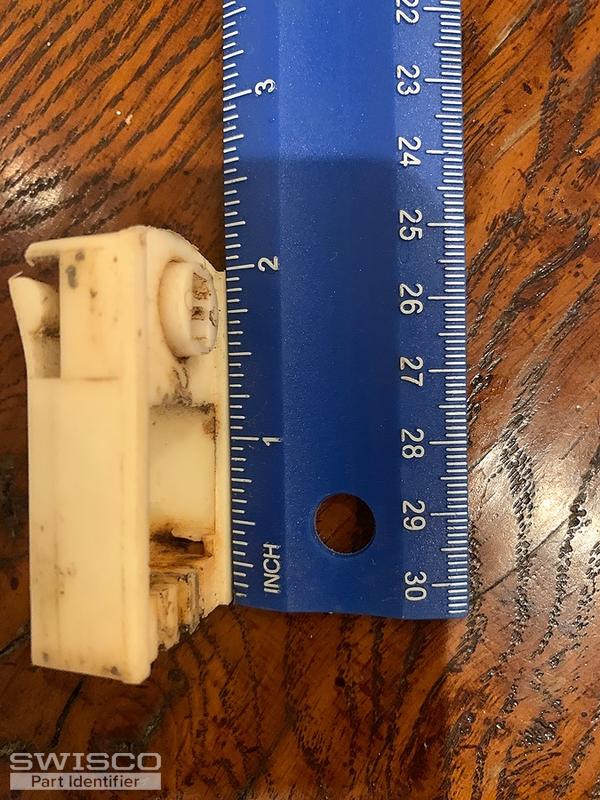

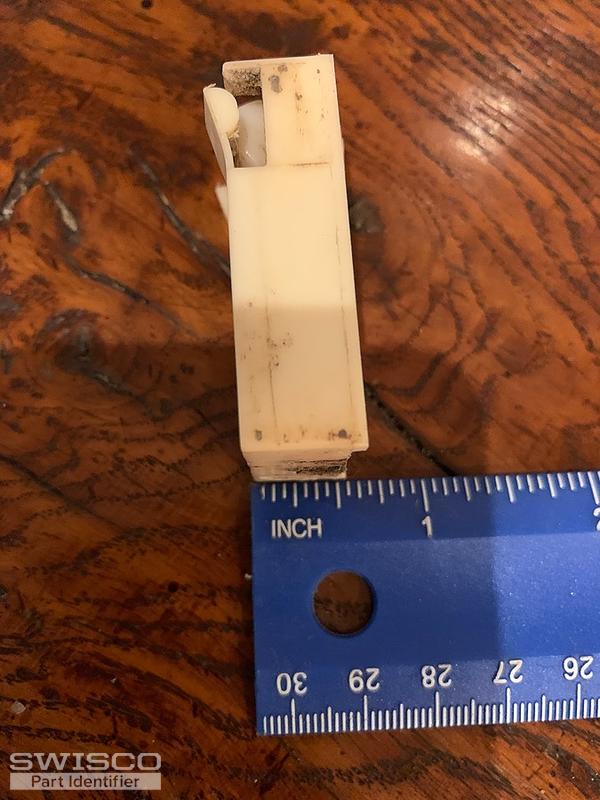

Can you please provide guidance on a replacement item for this window lock shoe? The center gap (that metal piece fits into) is just under a 1/8 of an inch, and the side slots are 1/16 wide. Many thanks.

Bob · Accepted Answer

It looks this pivot shoe is slightly more than 1/2" thick, possibly 9/16" thick. If so, see our 15-118. If it's closer to 5/8" though, see the 15-47. The width and thickness of the shoe is what matches most. It's a bit hard to read rulers accurately from pictures, so use your discretion to see if either of these shoes is the right match.
