Replacement Window Mechanism

A home owner from Floral Park, NY says:
Unfortunately I see no numbers or markings on this mechanism.
Dimensions top screw to bottom screw i measured as 5 1/2 inches.
Looks like 1 5/16 from bottom screw to across to the other bottom screw.

Hoping you have this replacement part.
Thumbnail of the uploaded file named Crank 5.jpg
Thumbnail of the uploaded file named Crank 4.jpg
Thumbnail of the uploaded file named Crank 3.jpg

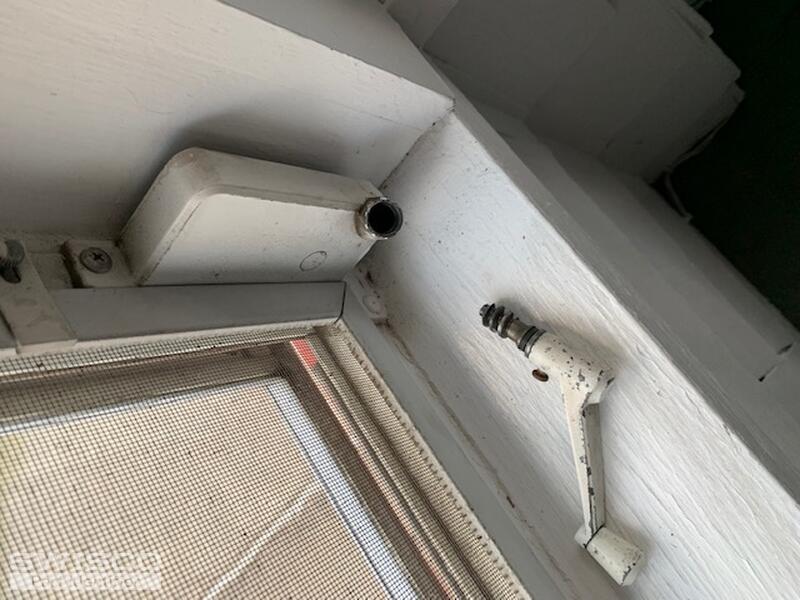

Thumbnail of the uploaded file named Crank 2.jpg

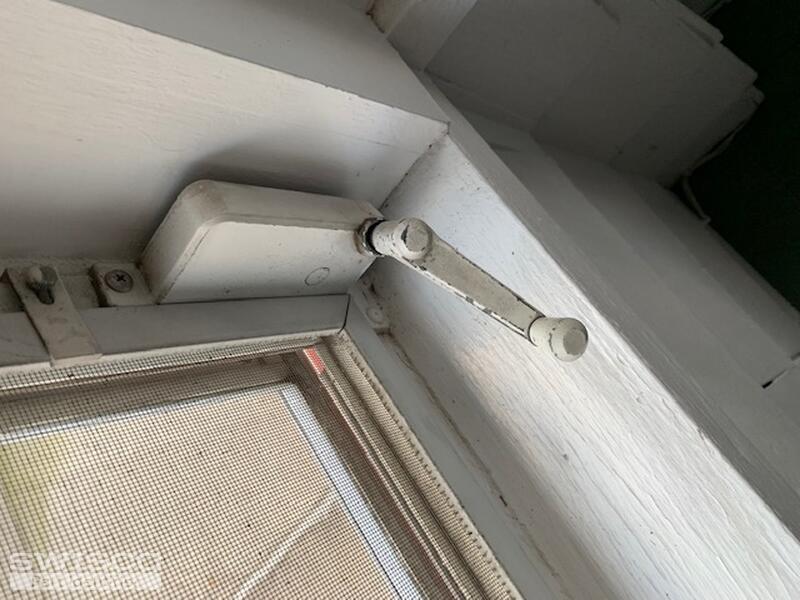

Thumbnail of the uploaded file named Crank 1.jpg
A home owner from Floral Park, NY says:
Update. I was able to remove the mechanism. Looks like the dimensions are 5 1/4 from top screw to bottom screw. 1 1/4 from bottom screw across to other bottom screw. The extension piece looks like 3".

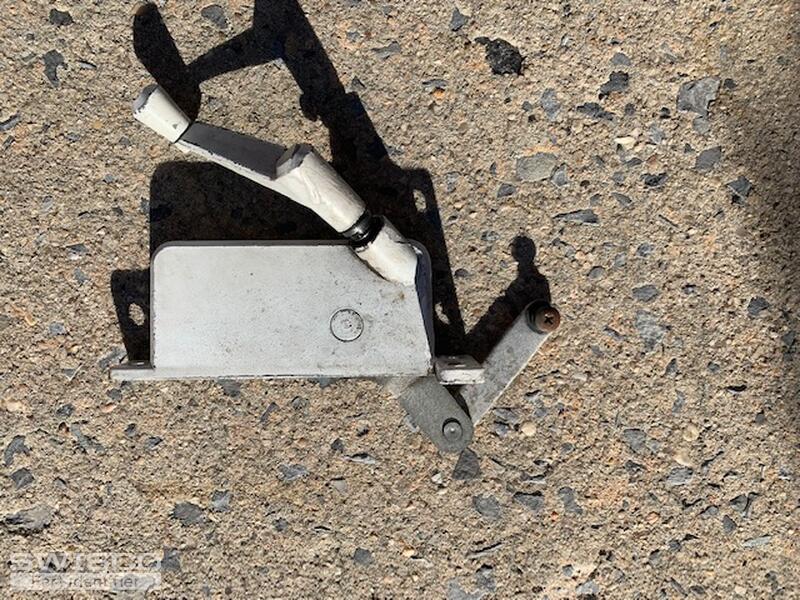

Thumbnail of the uploaded file named Crank 8.jpg

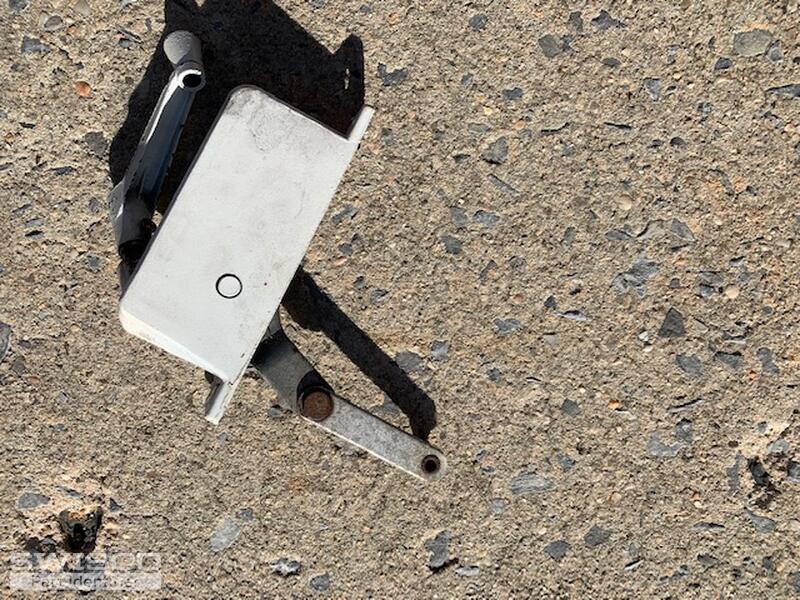

Thumbnail of the uploaded file named Crank 7.jpg

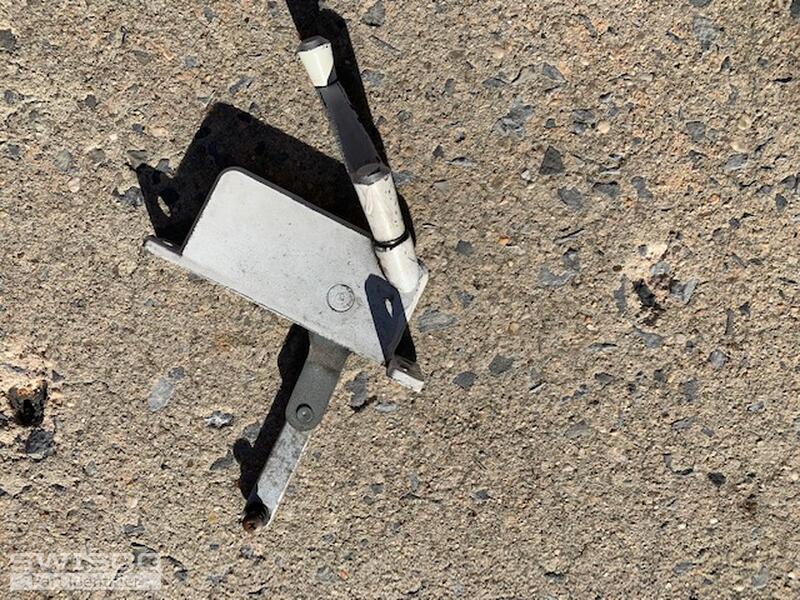

Thumbnail of the uploaded file named Crank 6.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Please see our 39-025 and 39-026 operators to get started. I think these may be what you need, but look them over and let me know if you had any questions.

A home owner from Floral Park, NY says:
Thanks Tom. I was actually able to find the part locally and install it. Appreciate your response and good to know that there are options like SWISCO.

Best,
Chris
