Quick Learner from Kokomo, Indiana

Jul 20, 2023 3:20 pm

Hello, I'm hoping you can help me with some replacement parts.

The balances are Nuprime by Season-All. The metal body is 26 7/16" long X 1/2" wide X 5/8" deep. They are stamped "2620".

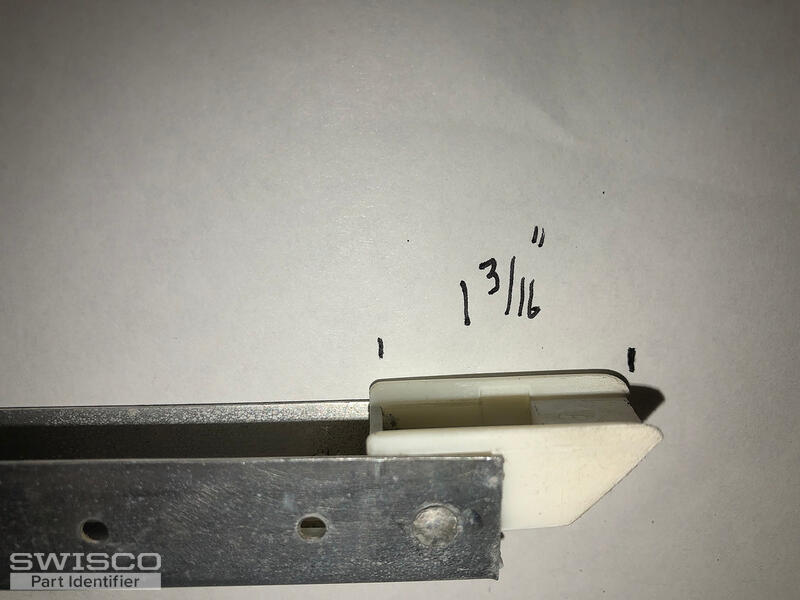

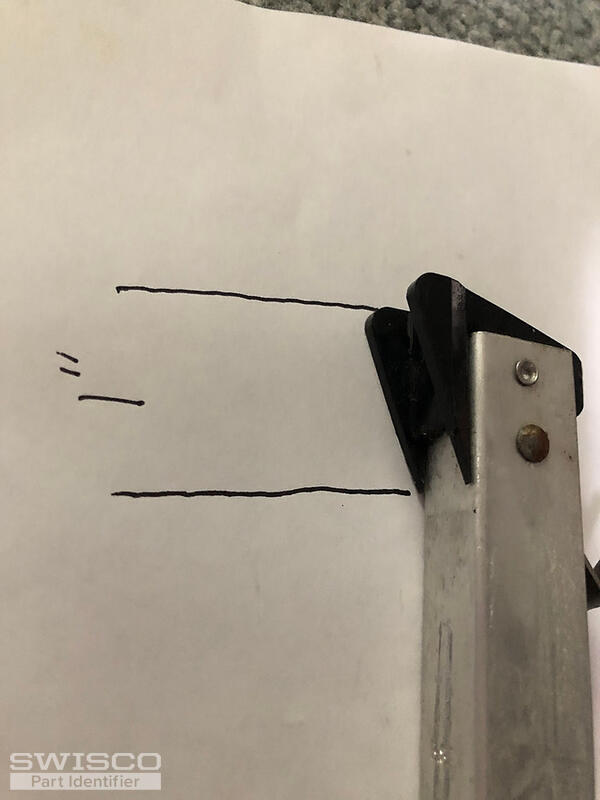

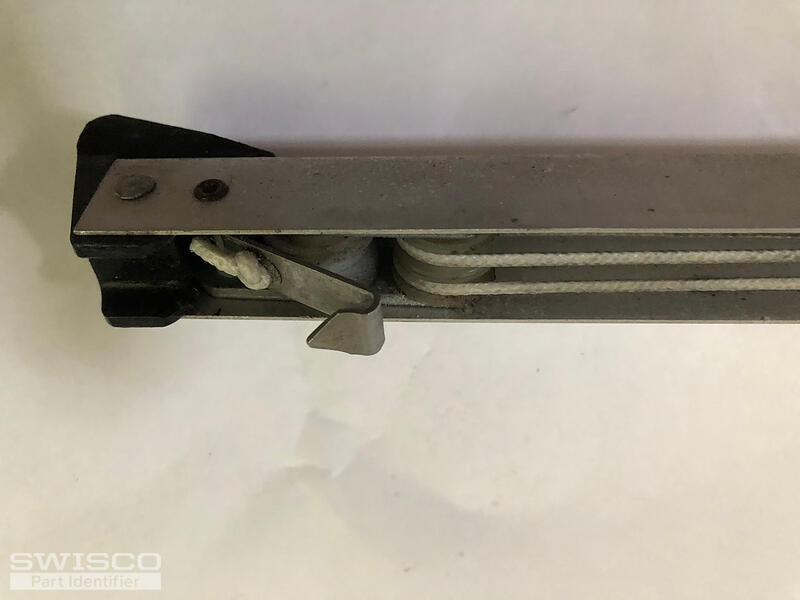

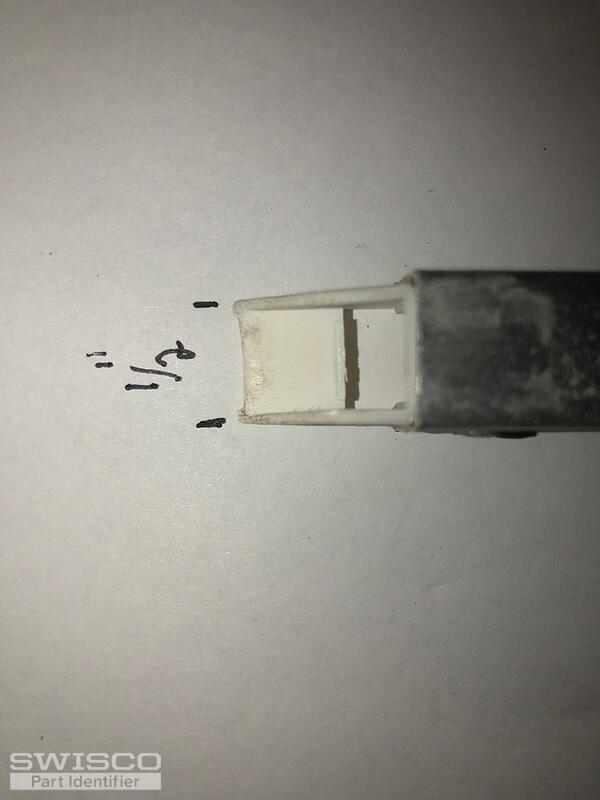

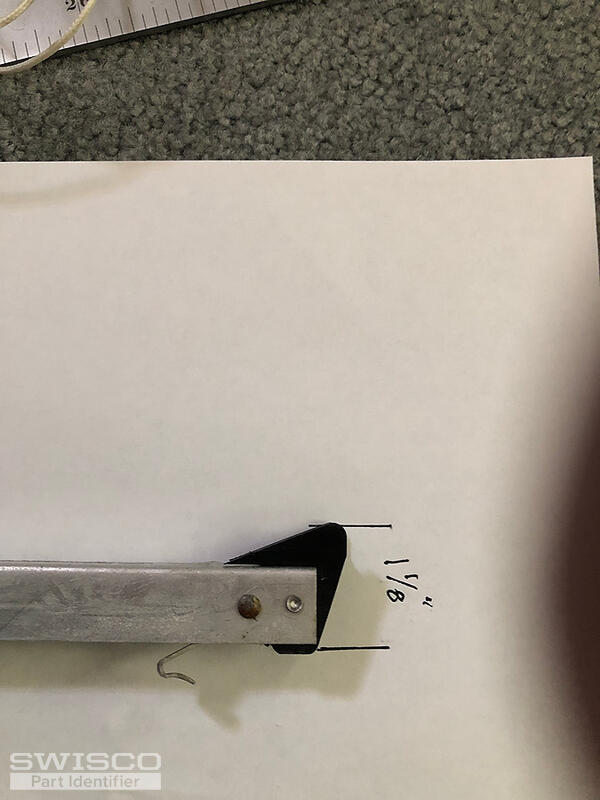

I have attached several photos of the nylon end caps with dimensions.

The top sash guide appears to be product code 18-110.

Thank you for your help.

5 user uploaded images

6 Replies

Casey from SWISCO

Jul 21, 2023 12:49 pm

Hello,

Your photos and dimensions indicate that you would need the S390-27 channel balance with a 1-1/8" bet bottom fitting. You'll also need a 2620 strength option based on the stamp code you provided. Take a look and thanks for posting!

Close up view of the S390 balance top.

Close up view of the S390 balance shoe.

Quick Learner from Kokomo, Indiana

Jul 27, 2023 2:08 pm

Thank you! I'm about to place the order but I just want to make certain that the S390-27 balance will work even though my measurement of the balance metal channel is only 26 7/16" long.

Casey from SWISCO

Jul 27, 2023 2:37 pm

Unfortunately, we do not carry a version of this balance that measures 26-7/16" long. The 2620 stamp would also generally indicate that the metal channel would measure 27". I would recommend double-checking your metal channel length, not including the end fittings. If you're still coming up short, you may have a 26-1/2" balance. I've honestly never heard of this type of balance with the same 26-7/16" length.

Quick Learner from Kokomo, Indiana

Jul 27, 2023 4:09 pm

Thanks Casey, I just re-measured the channel length and can confirm that it is 26 7/16" long.
I'm certain a 26 1/2" channel length would work but I'm not sure about 27". Do you believe a 27" channel length would work? Do you custom make these parts - could you make a 26 7/16" channel? If so, what would be the cost? I'm looking to order 4.
Thank you for your help.

Casey from SWISCO

Jul 28, 2023 1:18 pm

Thank you for confirming. We can supply replacement balances that measure 26-1/2" long but it will need to be a custom order. We just sent over a purchase link and price quote for you to review. Take a look and let us know if you need anything else.
