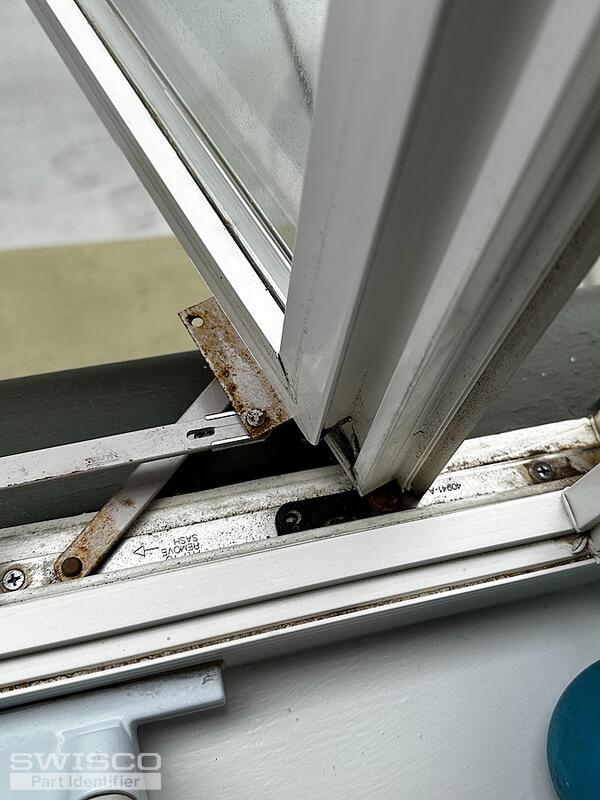

We are looking to replace our window parts:

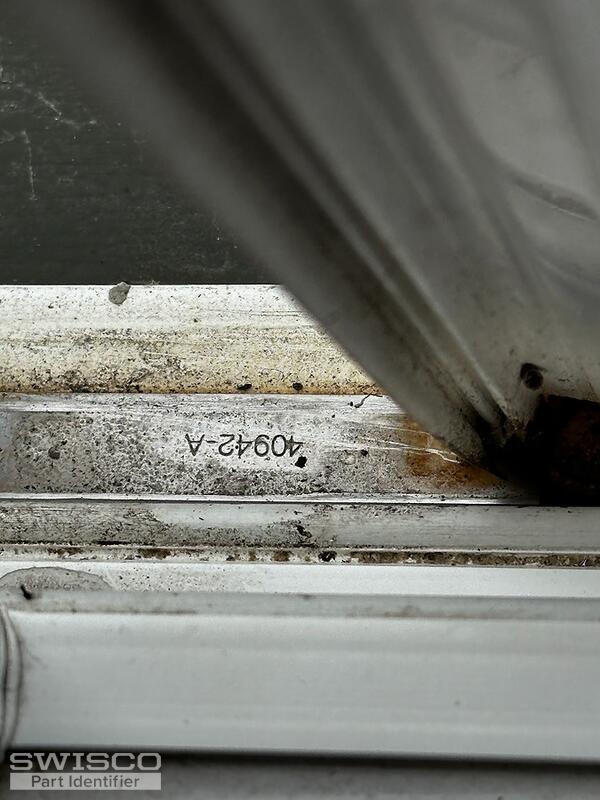

The left hinges are labeled 40942
The right hinges are labeled 40941 or 30744
Both are 10 inches across, with a 5.5, 5 and 3 inch opener.
We need:
10 of 40941
7 40942
Do you have these parts?
Replacement Window Parts
Home Owner from San Francisco
Jul 15, 2024 3:52 pm
5 user uploaded images
4 Replies
Emily from SWISCO
Jul 17, 2024 9:57 am
Hey there!
Thank you for reaching out to us. The casement operator resembles the 39-187 and 39-188. The 39-513 and 39-514 are the compatible stud brackets. For a new hinge, start by taking a look at the 36-048. We just recommend that you replace the top and bottom hinges at the same time. Review the specifications for these parts and see if they match up with your old hardware.
Dimensions for 39-187
Alternate measurement of arm
Dimensions for 39-513
Dimensions for 39-514
Detail of 36-048
Additional dimensions for 36-048
Home Owner from wheaton, il
Jun 4, 2025 11:13 am
I need a new black plastic slide piece. A portion of mine has cracked off !!
It is the part seen in the fourth of five photos(actual pictures) seen above.
How do I order this ? the part it slides on is 40942.
Please help.....Paul
Tom from SWISCO
Jun 9, 2025 2:15 pm
