Replacement Window Weatherstripping

Home Owner from Milford, OH
Sep 30, 2011 4:29 pm
I need to replace the weatherstripping on vinyl/aluminum windows manufactered in 1998 with no manufacturer identified other than the code 3MI974 stamped on the inside frame of the double pane glass frame. The weatherstripping is an offset t-slot foam filled bulb type similar to product code 58-171 in your catelogue but the dimensions are slighty different and ther is no strip on the side of the bulb. The t-slot is 3/16" on the insert side and 7/16" on th exposed side. The bulb is 5/16". Any match or suggestions would be appreciated.
3 Replies
Tom
Tom from SWISCO
Oct 4, 2011 10:01 am
SWISCO
EXPERT
Can you submit a couple profile photos of your foam seal so we can take a look?
Quick Learner from Milford, OH
Oct 10, 2011 3:37 pm
Hopefully the attached are clear enough to give you an idea of what I am looking for. It does seem very similar to product 58-171 with the foam tubing mounted along the outside edge of the mounting strip.

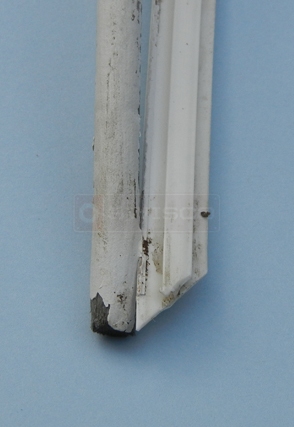

User submitted photo of foam seal.
Tom
Tom from SWISCO
Oct 11, 2011 3:37 pm
SWISCO
EXPERT
The 58-171 Foam-Filled Weatherseal is definitely the closest match online. The key measurement is the diameter of the foam seal, measuring .300" (which is between 19/64" and 5/16").
