Replacement Window balance

Handy Person from Elma Washington

Sep 27, 2024 5:20 pm

I am looking to replace the pictured part. I need a quantity of 6. Likely will need more in the near future. Can you provide pricing and lead time? Is there anything else you need from me?
Thanks for the help,
Graham

1 user uploaded image

7 Replies

Lauren from SWISCO

Oct 1, 2024 9:53 am

Hi Graham, thank you for posting,

To further review, we will need to see the balance removed from the window with clear images of the top and bottom nylon attachments. We will also need to see inside of the metal channel where we can view the connection point between the spring and pulley system.

From there we can narrow down the correct series for your window. Thank you!

Home Owner from Elma Washington

Oct 13, 2024 6:21 pm

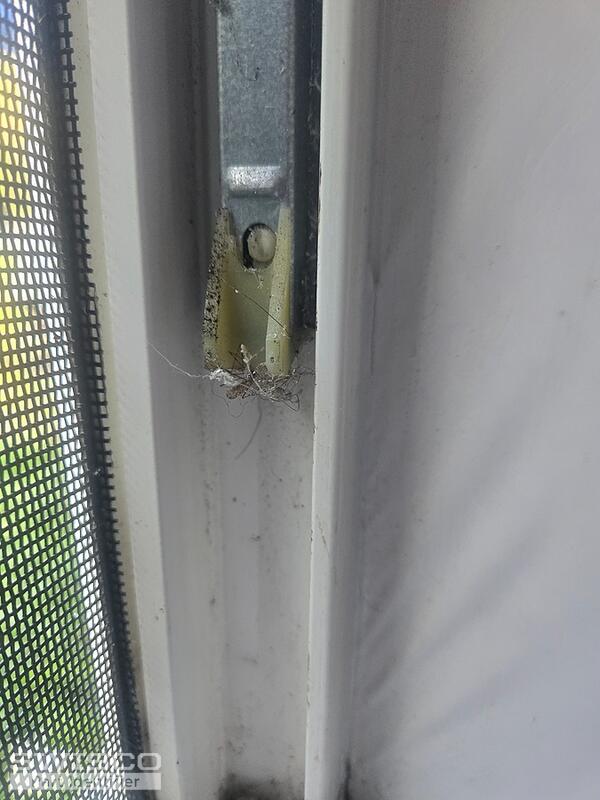

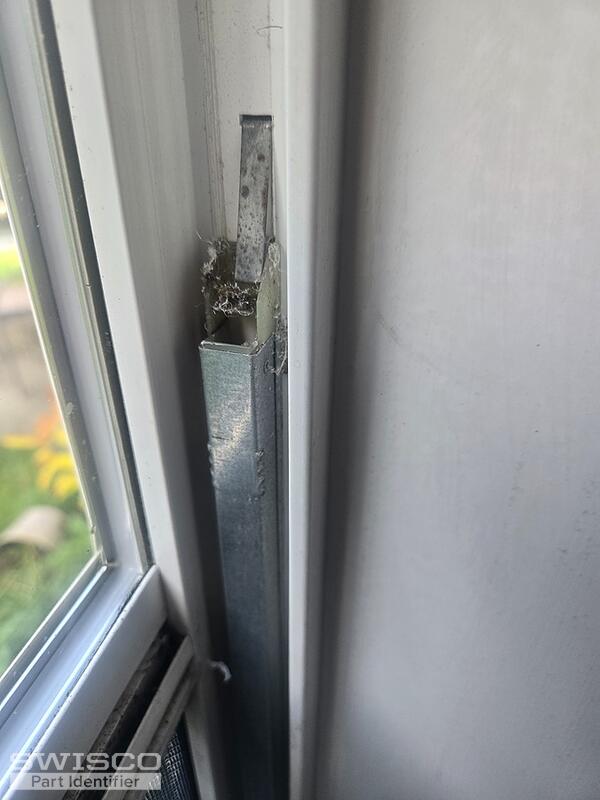

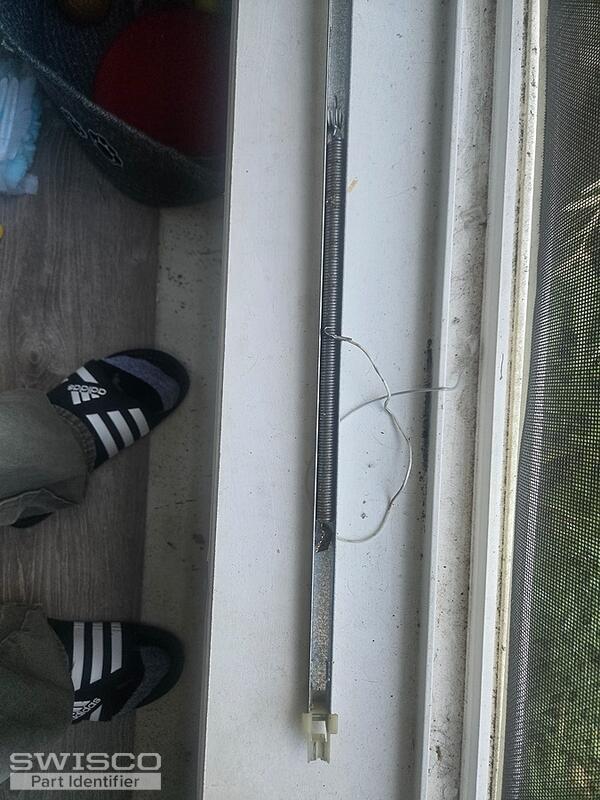

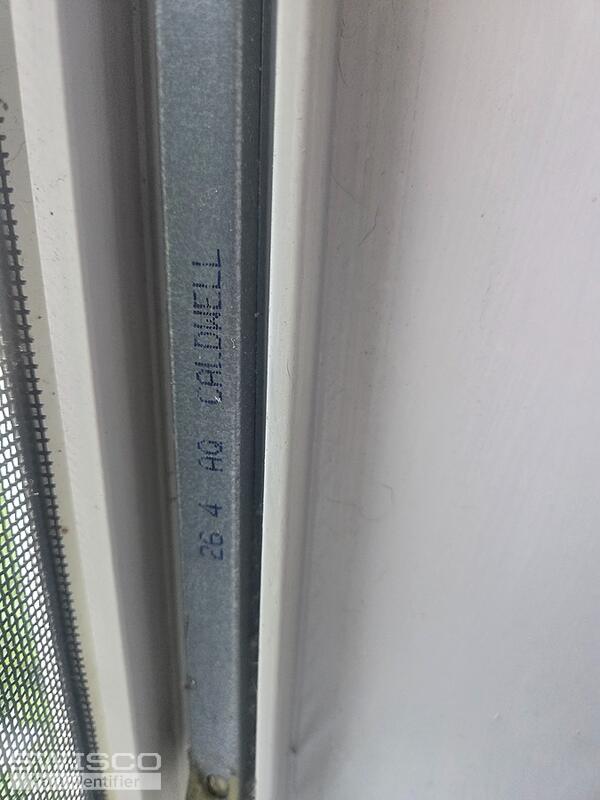

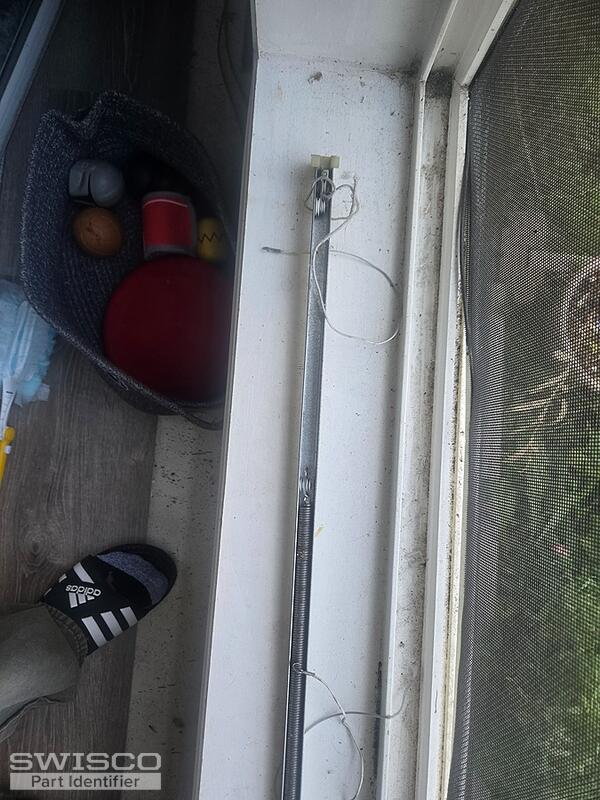

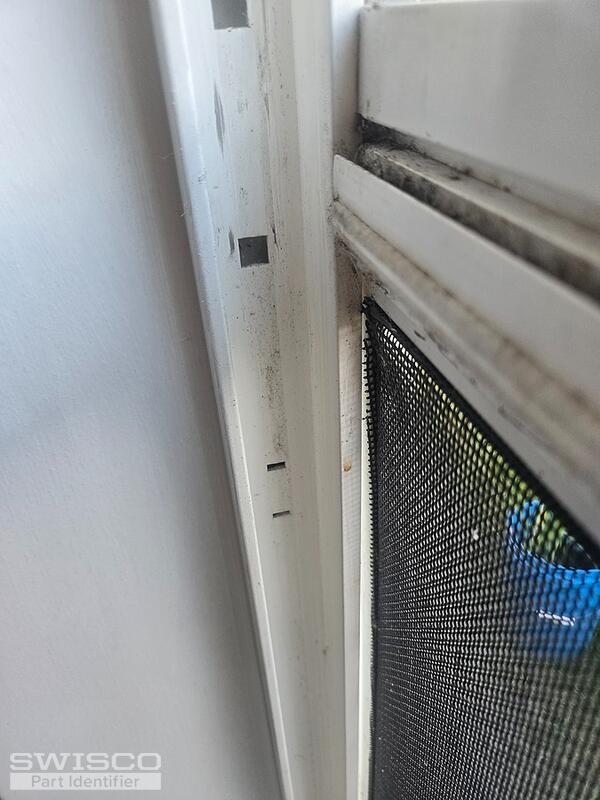

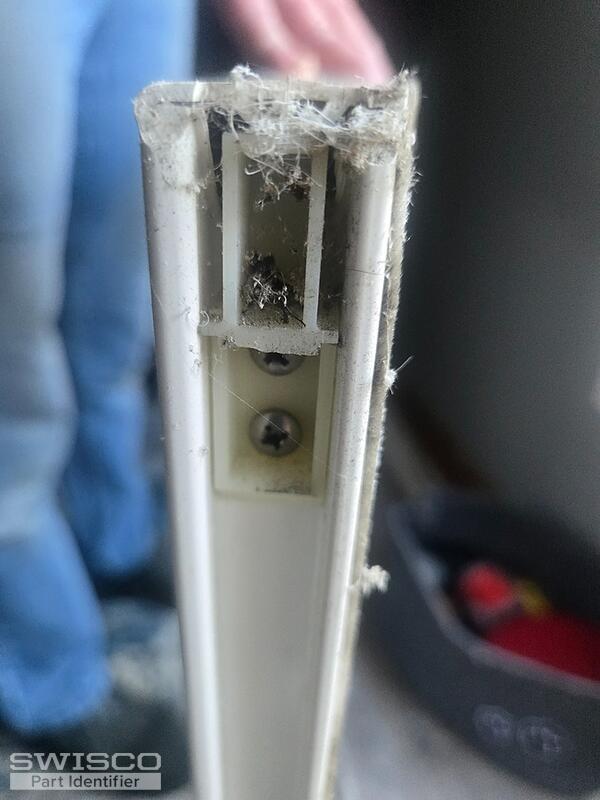

I am attaching more pics. Let me know if you will need more from me. Sorry for the delayin getting the additional photos.

5 user uploaded images

Home Owner from Elma Washington

Oct 13, 2024 6:23 pm

Sorry if I have a duplicate or two.

5 user uploaded images

Lauren from SWISCO

Oct 14, 2024 8:17 am

Thank you for the additional pictures,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 27" and you will need a 2640 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Elma Washington

Oct 26, 2024 5:07 pm

Thank you for the assistance. I have measured per your instructions and I am confident they will fit as expected. Order has been placed. I'll review the tutorial in advance and upon receipt I will install. I will contact you if I experience any problems.
Thank Again, Cheers

Lauren from SWISCO

Oct 28, 2024 8:12 am

No problem! Please let us know if you have any future hardware questions.
