Replacement balance coils for Milgard vinyl window

Home Owner from Pismo Beach, CA

Dec 14, 2023 11:47 am

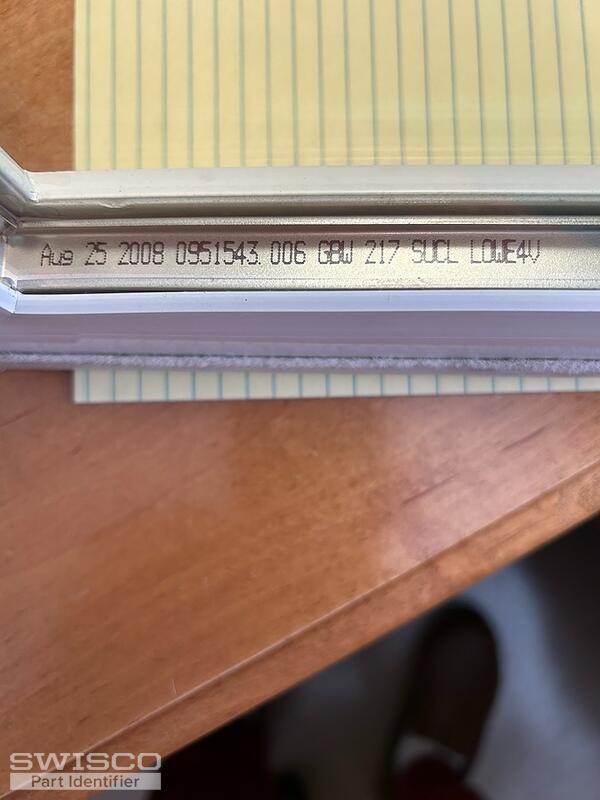

Balance coils on upper sash are broken and I am seeking replacement parts. Window (0607.jpg) is approximately 2' x 3' and in generally good condition. Part Number shown in 0609.jpg. Broken coil showing attachment tang in 0611.jpg.

Thanks, Richard

5 user uploaded images

4 Replies

Emily from SWISCO

Dec 15, 2023 12:49 pm

Hi there, Richard.

Thank you for reaching out to us. It looks like you'll need the 15-191 which uses the Series 160 coil springs. We also sell the compatible 15-150S single coil support. Take a look and let me know if you have any questions.

Home Owner from Pismo Beach, CA

Dec 15, 2023 2:08 pm

Thank you. Is there a specific coil spring part # you are recommending? I assume you are suggesting that my shoes and spring holders should be replaced for compatibility with your springs.

Emily from SWISCO

Dec 18, 2023 8:32 am

You only need to replace what's broken so you can reuse the pivot shoes if they're in good shape. We just recommend you replace the springs on both sides of the window at the same time, even if only one side is broken.

I also recommend you check the band of the spring for a stamped number. If they don't have one, you will need to divide the window sash by two to determine the proper spring weights.
