Replacement balance for Pella 150

A home owner from North Myrtle Beach, SC says:
May 18, 2023

I need a replacement balance for a Pella 150 double hung window manufactured in 2021. The balance is a 2 coil constant force balance (shown in catalog). I'm not sure if it comes with the frame attachment screw or not, but I need one of those also (pictured). If you could direct me to the parts that I need, I would appreciate it!

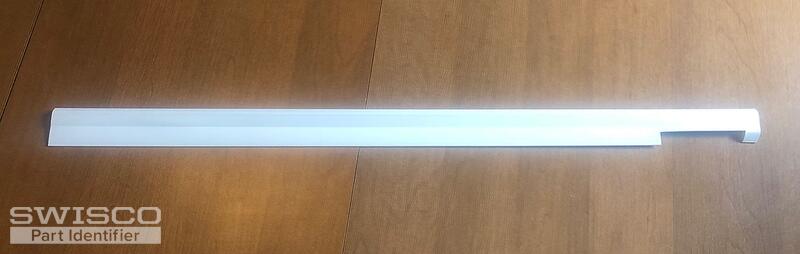

Also, I need a replacement balance pocket cover set (part in catalog attached) for a Pella 150 double hung window manufactured in 2021. Do you carry this part?

Thanks,Rob

Thumbnail of the uploaded file named 48830697-7ED3-4F6D-9E6F-03B78072AF63.jpeg
Thumbnail of the uploaded file named AED570AC-3FC9-478E-B707-07EEA5F58341.jpeg
Thumbnail of the uploaded file named 6990363B-F0BD-4167-915F-319619EA08F0.jpeg
Thumbnail of the uploaded file named 45E2A31F-3AA5-45B1-A119-190B3D246178.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
May 22, 2023

Thanks for reaching out! We do not carry your exact coil balance assembly but our 15-251, Inverted Universal Single Support should work great as a suitable replacement. Look over the dimensions for to determine if this part will work as a replacement for you.

Measurements of 15-251
Measurements of 15-251

These are compatible with the 1/2" thick Series 160 coil springs. Since your existing housing is stamped with a 10, you'll need the S160-10. You may also need the 16-031 mounting bracket.

You'll need to reuse the existing screws or purchase them from a local hardware store as we do not carry an exact match for them in our inventory.
Inverted Universal Single Support
Inverted Universal Single Support
15-251
$3.97
10 lbs Series 160 Coil Balance
10 lbs Series 160 Coil Balance
S160-10
$6.34
Mounting Bracket
Mounting Bracket
16-031
$0.90
