Replacement balancer for milgard window.

Quick Learner from Aurora, CO

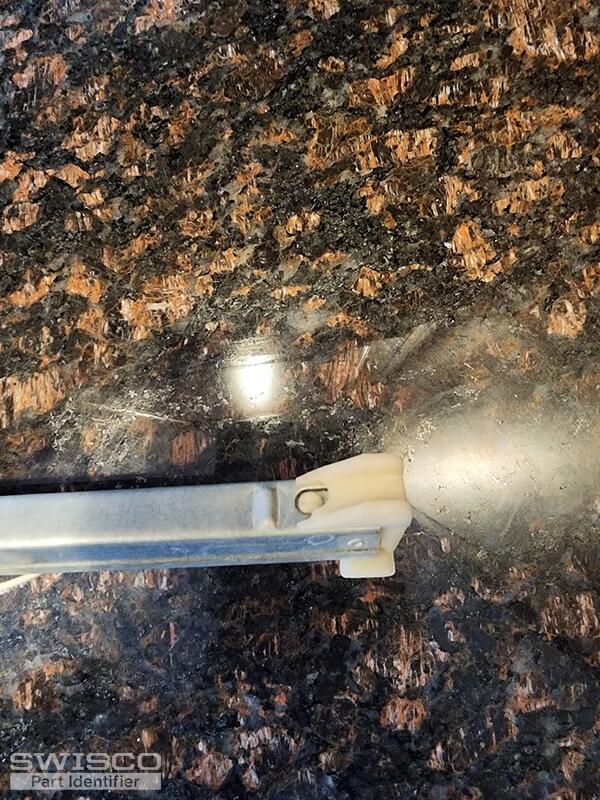

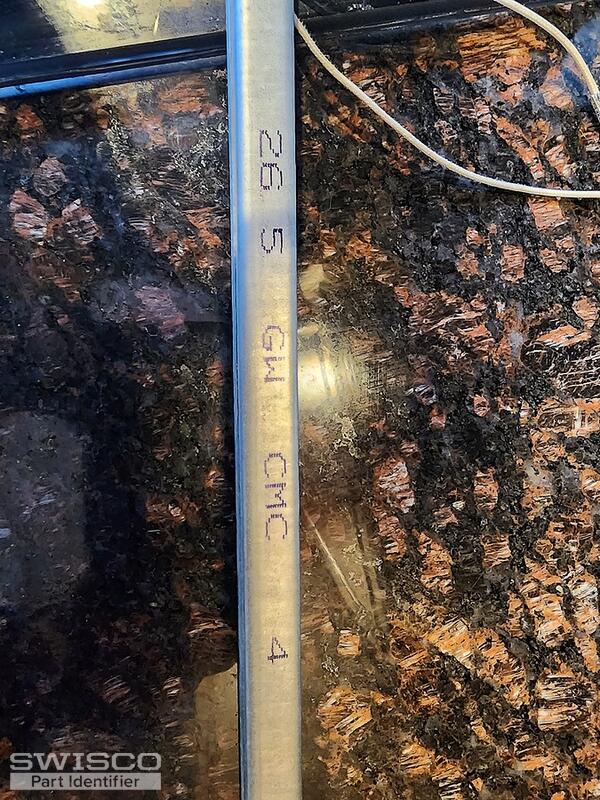

Need to replace Milgard window balancer. Left side of window. Number on metal is 26 5 GW CMC 4. Metal part is 27" long. Pictures attached. Please let me know if you need more info.
5 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks like either an S380-27 or S385-27. The only difference between these two balances is the depth of the bottom nylon shoe, or the measurement from heel-to-toe. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. For a new stamp option choose 2650.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Aurora, CO
I did the measure and the right part is S385-27, but I am not sure what you mean by "new stamp option choose 2650".
Bob
Bob from SWISCO
SWISCO
Expert

Apologies, let me clarify. For any new balance, you have to choose a stamp option. This designates the strength of the balance, or the weight range it can support. Your old balance was stamped 26-5. This conforms to the S385-27 stamp option of 2650, which denotes a balance that can support a window sash in the weight range of  26 through 30 pounds. Let me know if that makes sense, or if you have other questions.

Quick Learner from Aurora, CO
Thank you for the clarification. I am ordering the window balance. Have a great holiday.

Bob
Bob from SWISCO
SWISCO
Expert

Glad I can be of help, and to you as well.
