Replacement balancers - See photos

Home Owner from Flagstaff, AZ

Aug 13, 2026 2:54 pm

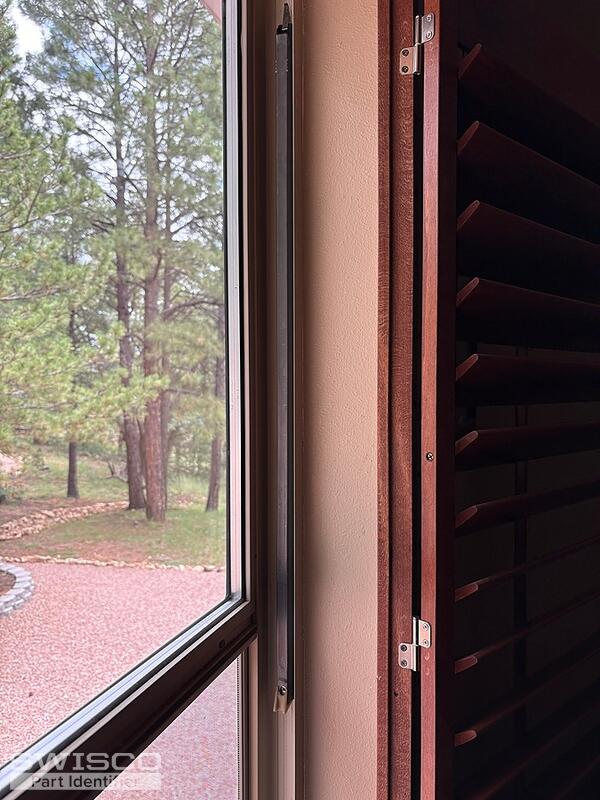

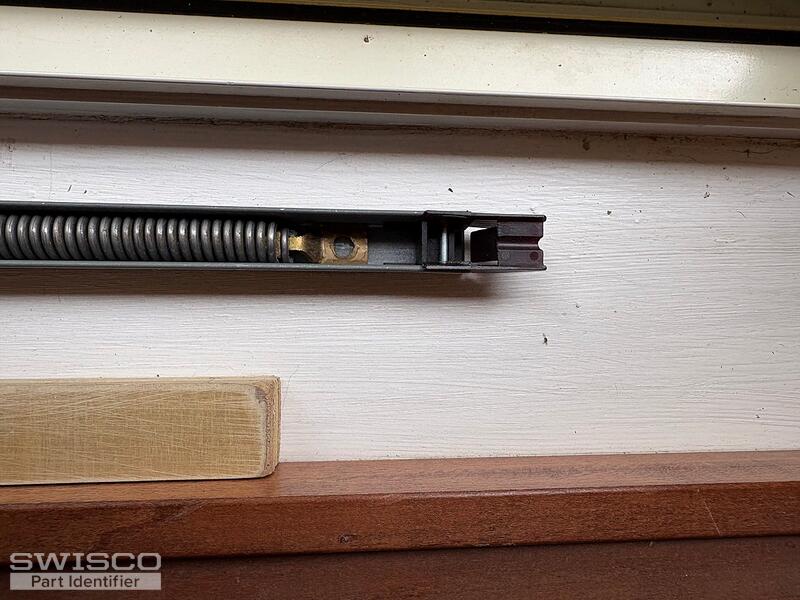

I need to replace 2 balancers for 1 window as shown in photos. Printed on metal section is:
28 4 AO Caldwell
The metal section is 28 7/8" and measures 0.595" deep, 0.547" wide.
The weight is 27.5 lbs.

5 user uploaded images

3 Replies

Bob from SWISCO

Aug 15, 2026 2:24 pm

Hey there. It looks like you have the S351-29 or S390-29 Channel Balance, depending on the shoe depth. See below. For a stamp option go with 2840.

Comparison of the S351 and S390 balance shoes.

Home Owner from Flagstaff, AZ

Aug 17, 2026 5:25 pm

Hey Bob,
Thanks for the quick response, greatly appreciated .
I will measure the balance shoe and get them ordered.
Thanks again,
Steve
