Replacement balances

Quick Learner
Feb 28, 2024 2:13 pm
Hi,

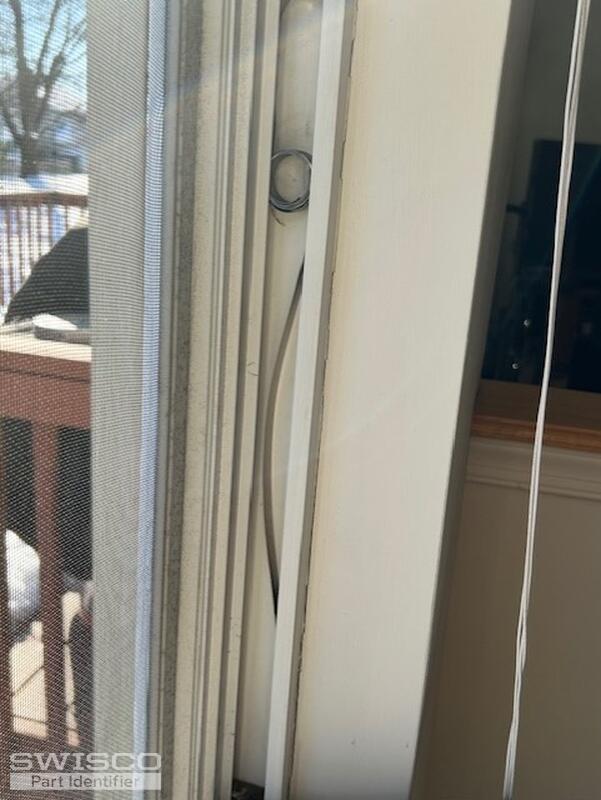

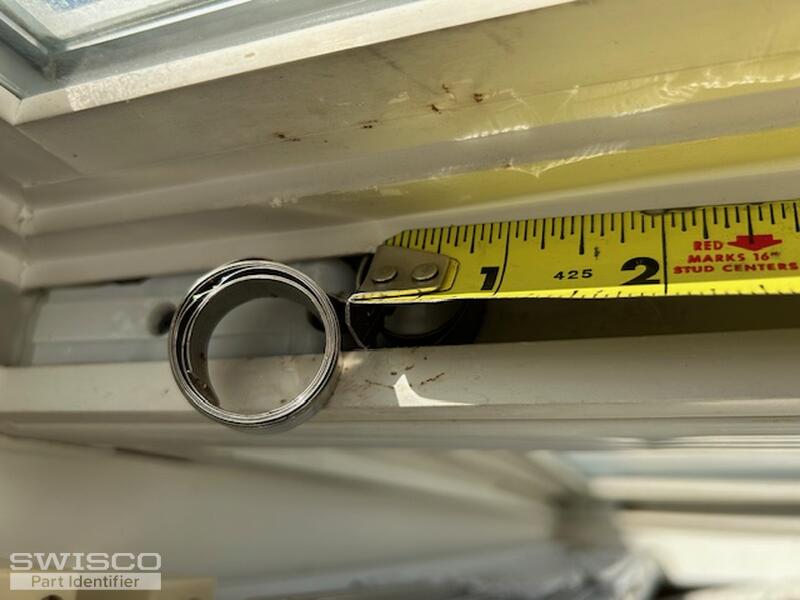

Have no marking on old coils. Cassette at top of sash housed double coils on both side. The length of the sash from the bottom of the cassette housing at the top of the sash to where the shoe with the window closed is 53". The window weighs 20lb. Wish to buy the entire balance assembly (cassette, coil, shoe) with 2 right hand and 2 left hand for 2 windows.
Thank you.
double coil shoe Window coil length broken coils Coil Cassette
5 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Feb 29, 2024 10:45 am
SWISCO
EXPERT

Thanks for writing in! To identify the correct replacement for your balance assembly, I'll need to see a clear photo of the compatible pivot shoe. Unfortunately, the photos do not provide enough information to provide an accurate recommendation.

Please let me know if you have any questions in the meantime.

Home Owner from Bethlehem, pa.
Mar 4, 2024 3:17 pm
Please see attached. Thank you.

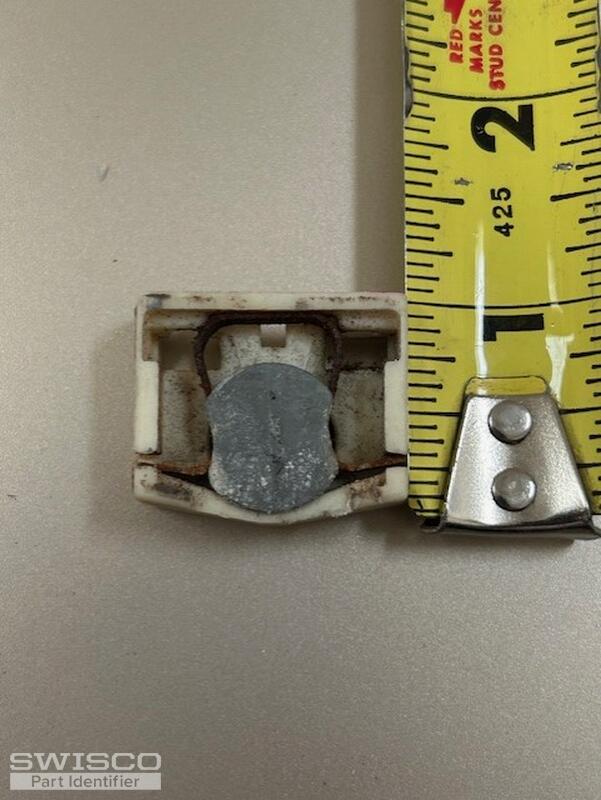

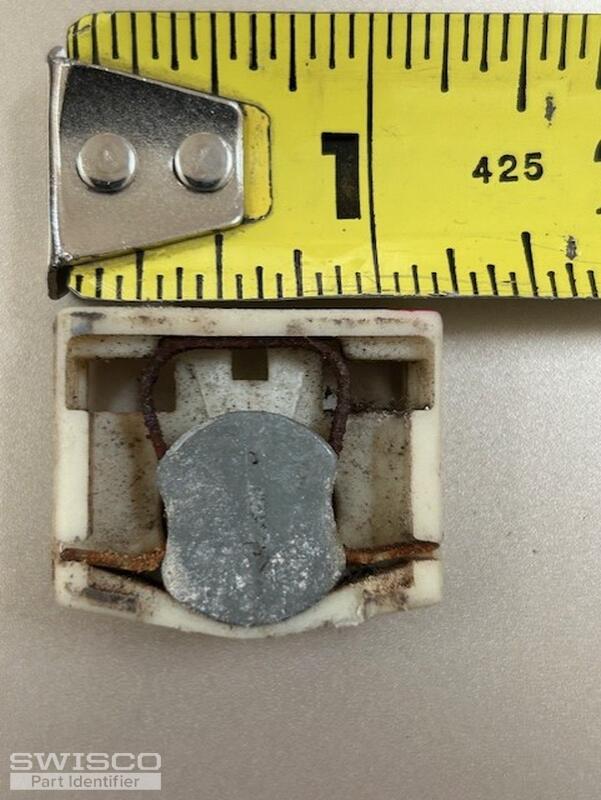

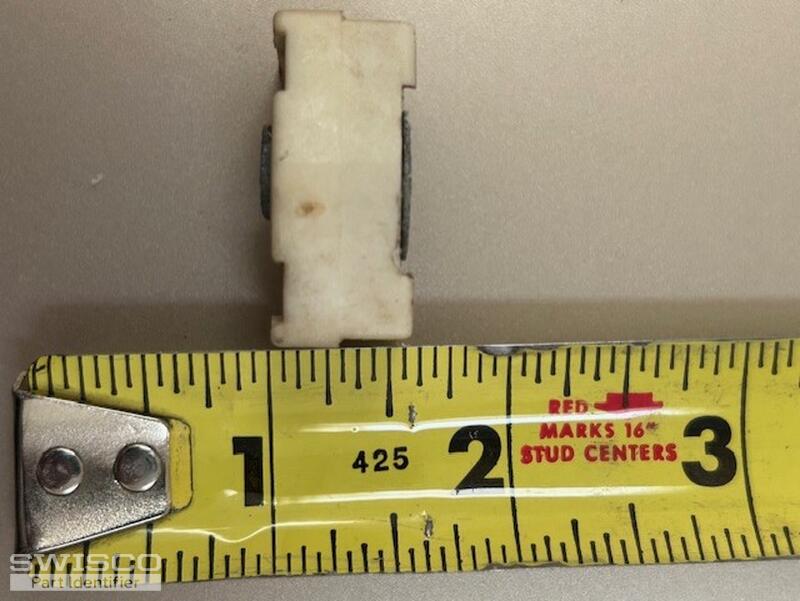

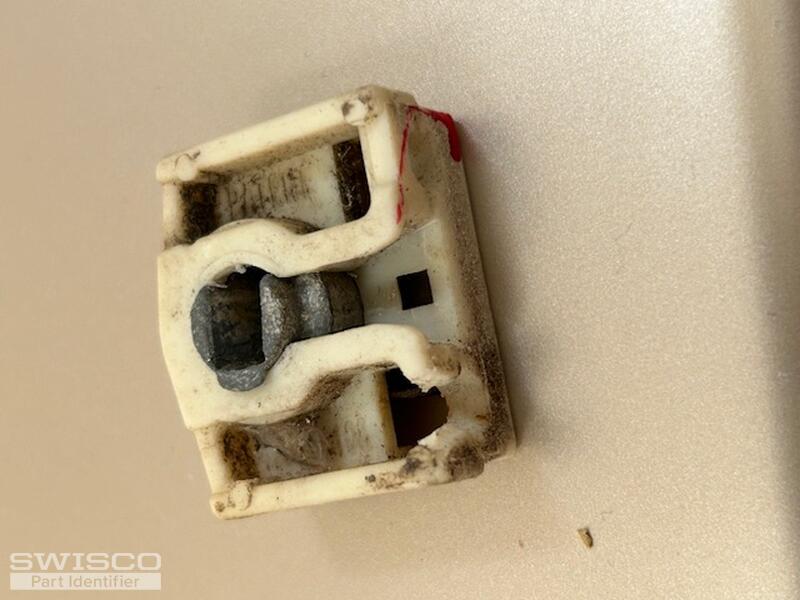

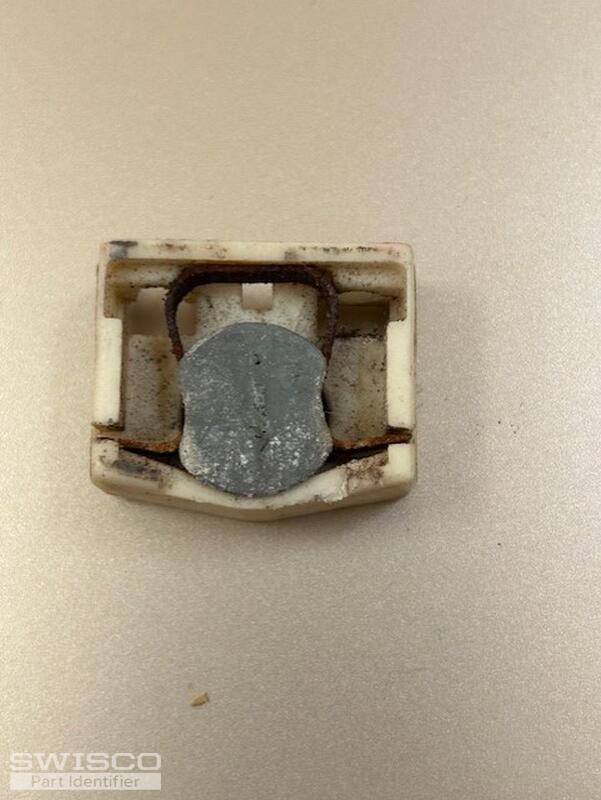

thumbnail_IMG_2284 thumbnail_IMG_2288 thumbnail_IMG_2290 thumbnail_IMG_2292 thumbnail_IMG_2293
5 user uploaded images
Jasmine
Jasmine from SWISCO
Mar 4, 2024 3:56 pm
SWISCO
EXPERT

Thanks for the photos. Your coil balance shoe reminds me of the 15-191 Heavy Duty Pivot Shoe. To determine if this is the correct replacement, carefully look over the dimensions below. Double check with the measurements from your shoe to confirm that this is the right fit.

Alternate image for 15-191
Alternate image for 15-191

This shoe is compatible with the Series 160 Coil Balance. Since your sash weighs 20lbs, you'll be able to use the S160-10, which is a 10lb coil. You may also need the 15-150S Coil Single Support.
