Replacement balances

Home Owner from San diego
Please identify this item.

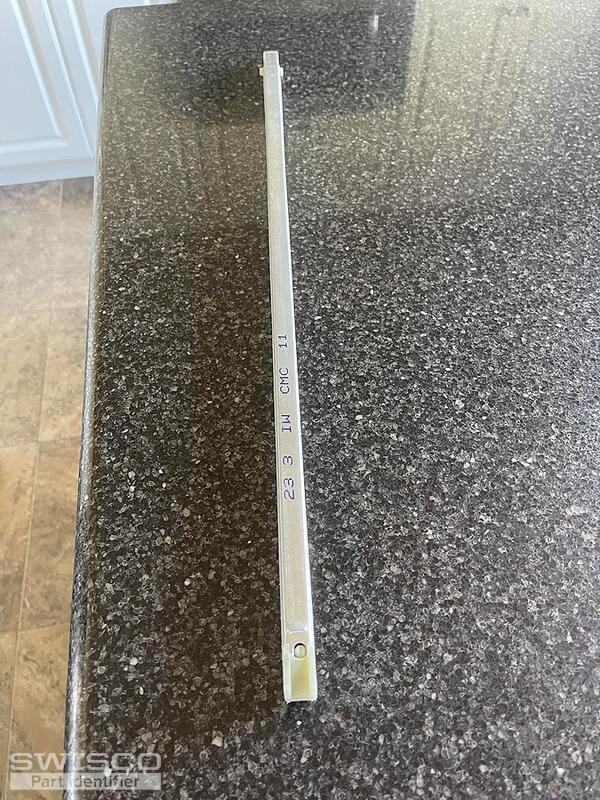

Stamped on balance

23 3 IW CMC 11
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for your inquiry! I'm happy to make a part recommendation for the balances you need but I'll need to see a photo of them to determine the exact replacement. The stamp from the balance on tells us the weight range it should be able to support but it does not help to identify the series.

I'll need to see a photo of the top and bottom attachments from the balance as well as any that could potentially be left behind in the window channel.

Home Owner from San diego

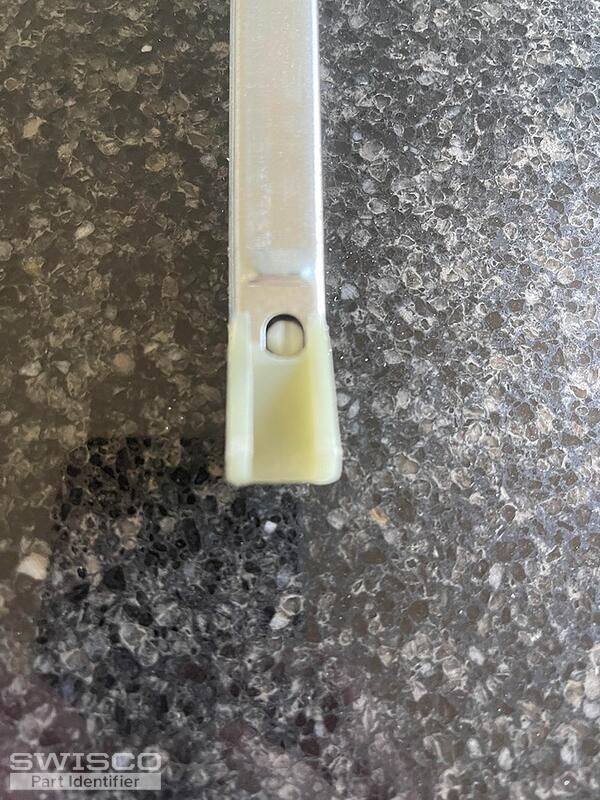

Here you go. Thanks
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The for the photos. I was able to narrow down your balance down to two options. I'll just need to see the pulley system in the center of the balance, where the spring and the string meet, to determine the correct replacement.

Please feel free to reach out with any questions.

Home Owner from San diego

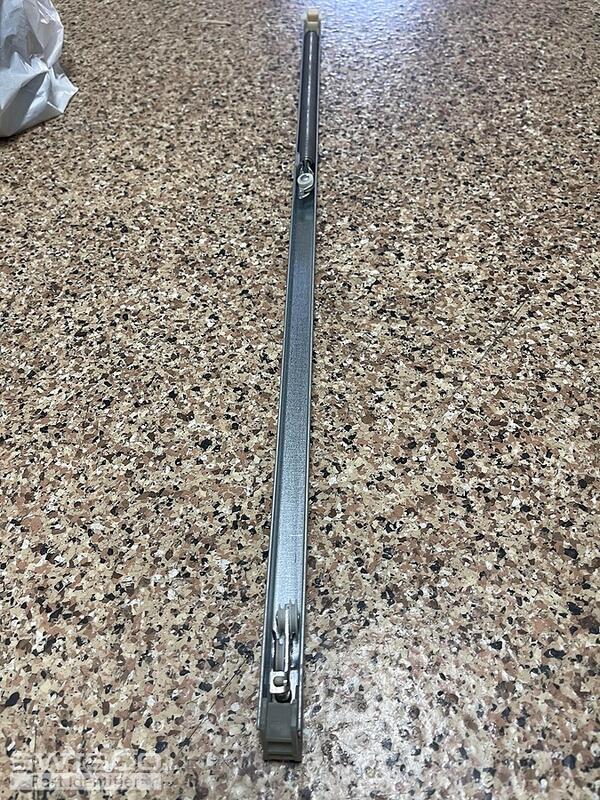

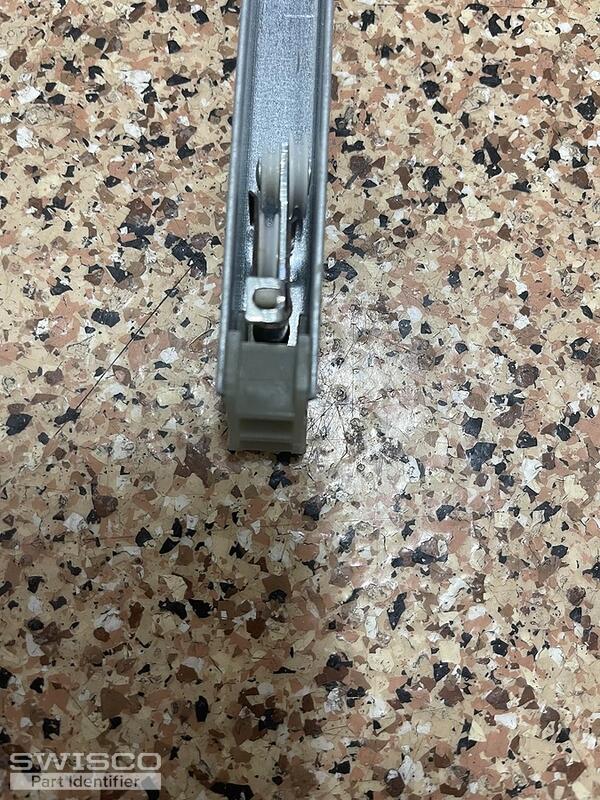

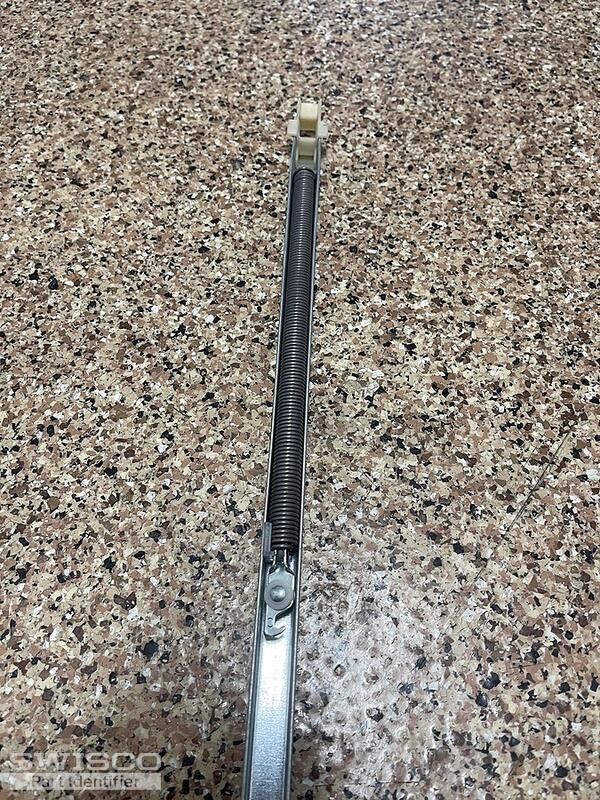

please see attched pictures. Thank you very much
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos. Your balances can be replaced with the S395-24, which is assembled with a 19-005 winged top guide and a 15-001 wingless bottom shoe. You can select the 2330 stamp option.
