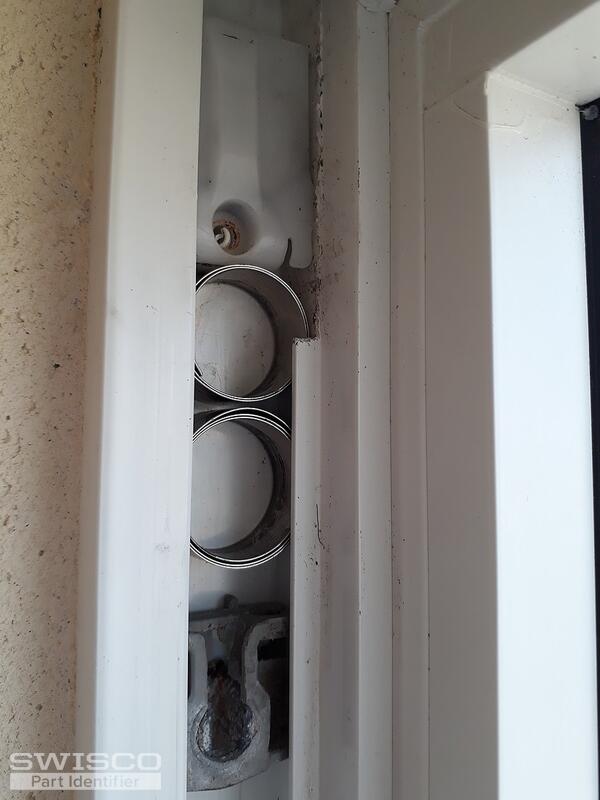

Replacement balances for single hung sash

A quick learner from Danville, VA says:
August 1, 2018
The following Markings exists

(On the Front Left)
Patent #'S
5.232.209

(On the Front Right)
5.365.638
6.584.644 B2
Profile picture of Paul
Paul from SWISCO responded:
August 7, 2018

Greetings-

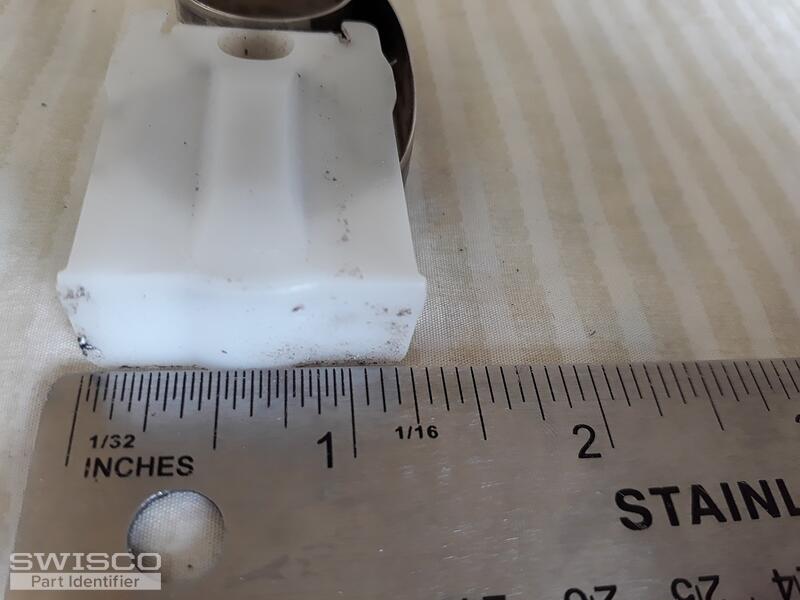

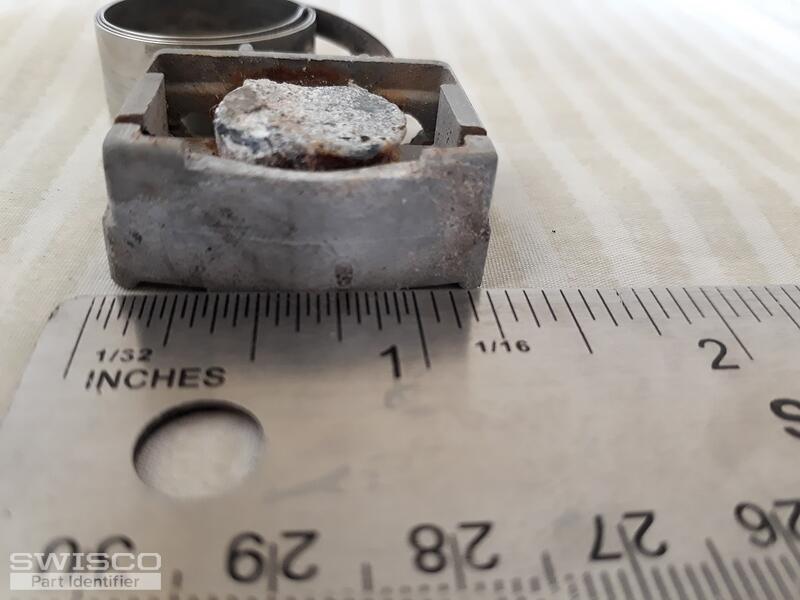

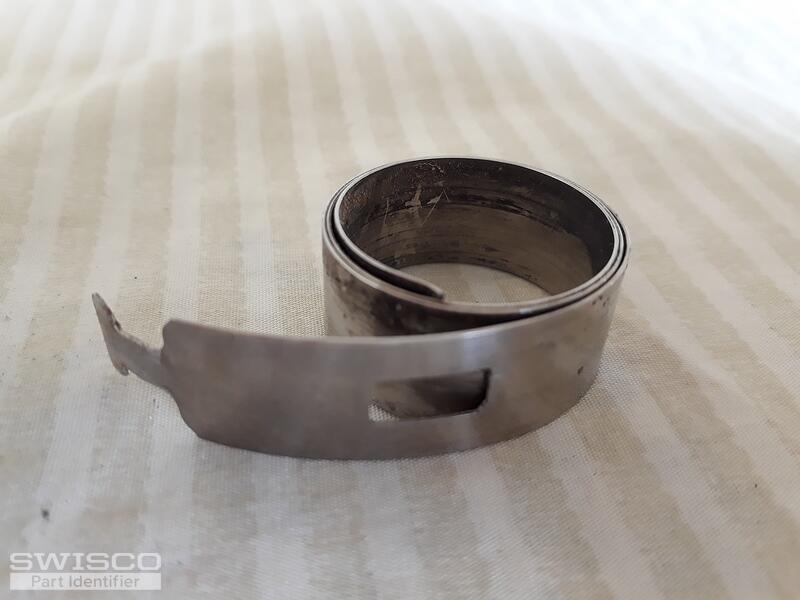

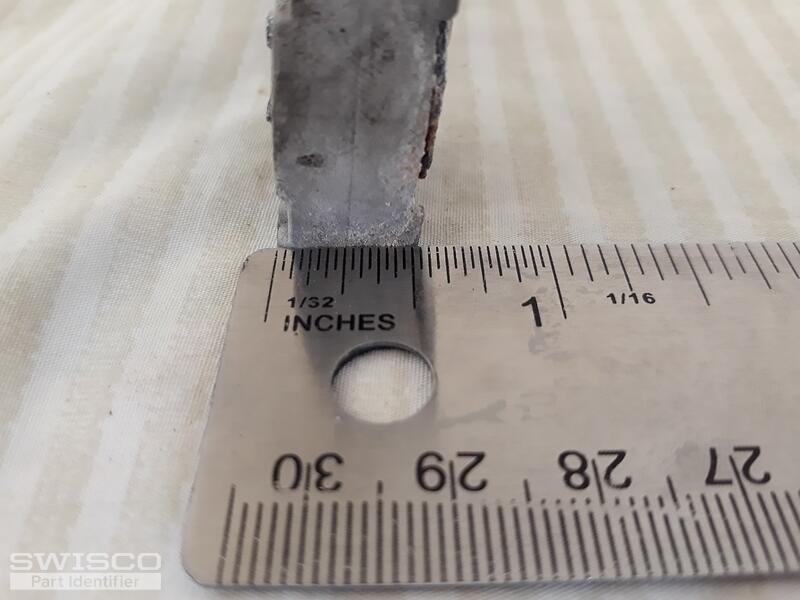

It looks like you have a 15-191 pivot shoe with single spring nylon cover 15-150S. YOur coil can be replaced with our Series 160, 1/2" wide coil spring. Check your old spring for a spring weight number stamped on it. If you don't see one, weigh your sash and we'll help from there!
Heavy Duty Pivot Shoe, 1/2" Thick
Heavy Duty Pivot Shoe, 1/2" Thick
15-191
$2.57
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
