Replacement block and tackle spring sash

Question

Hi,

I sure could use some help. I need 10 block and tackle spring sashes.

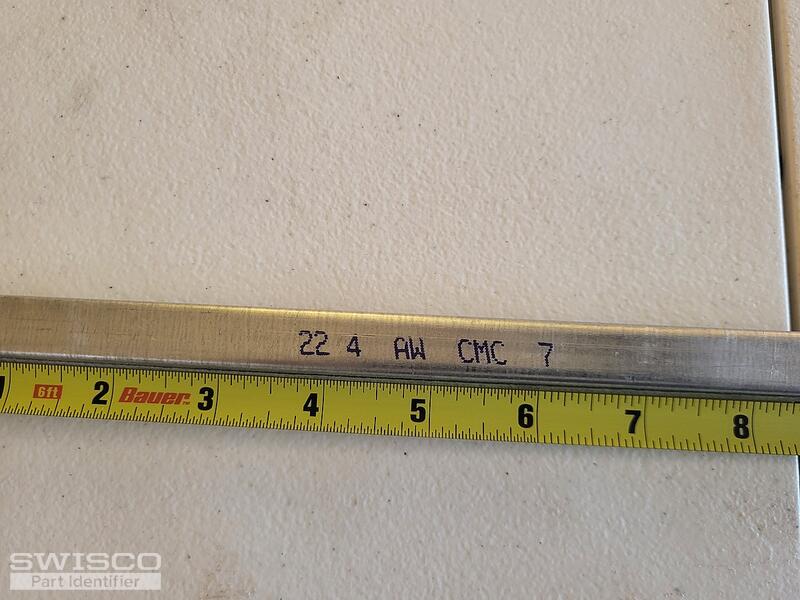

Marks on sash: 22 4 AW CMC 7

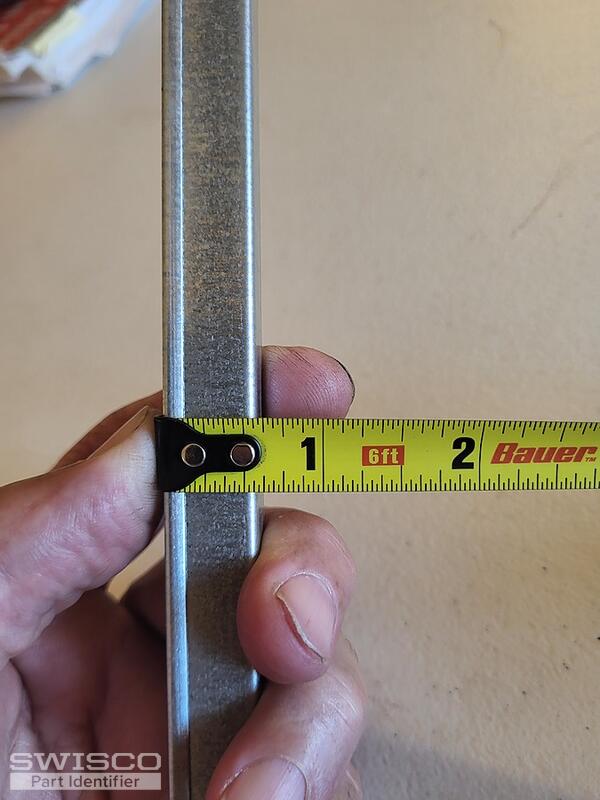

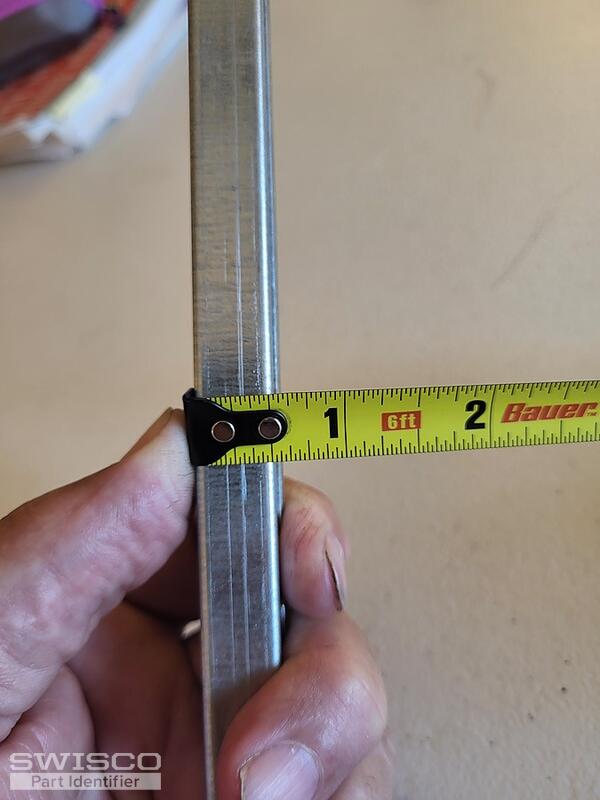

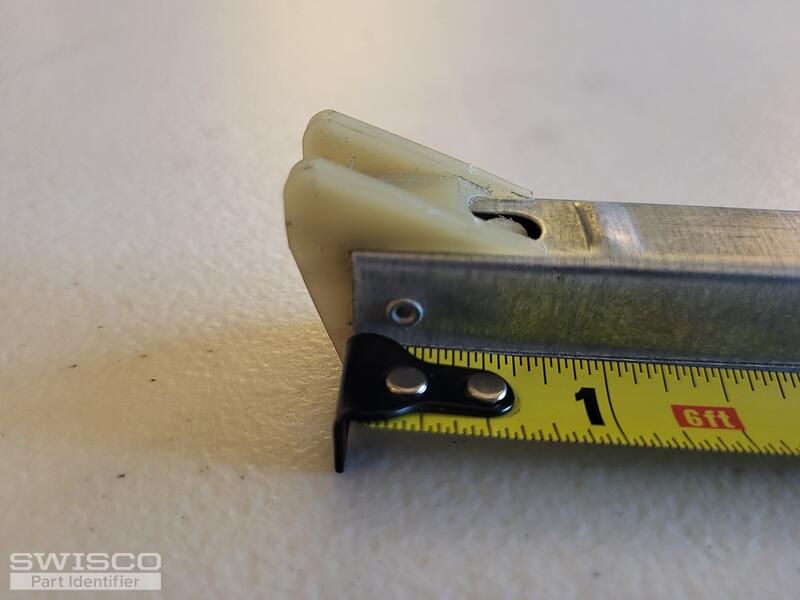

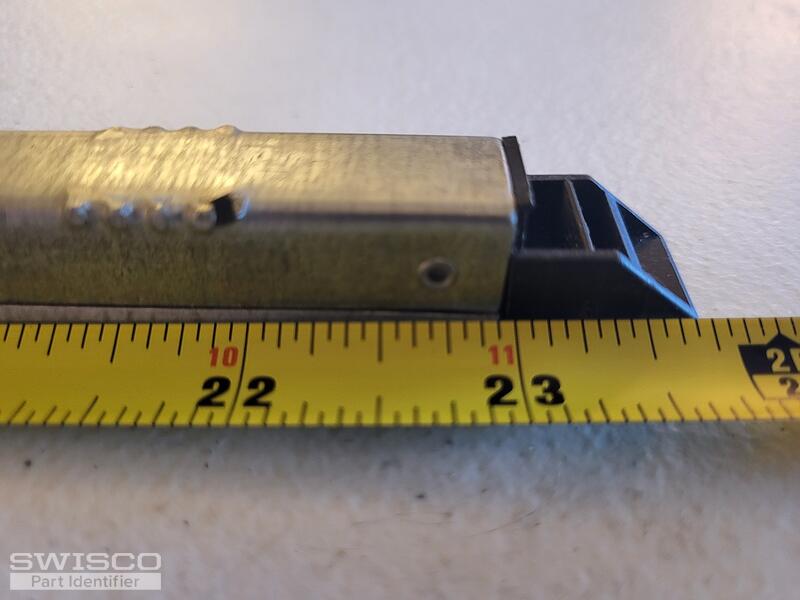

Length of the metal part of sash: 23 inches width 1/2 on closed side 11/16 on open side. depth is 9/16
Total sash length: 24"

Thanks very much!!

Lauren · Accepted Answer

Hello, thank you for posting,

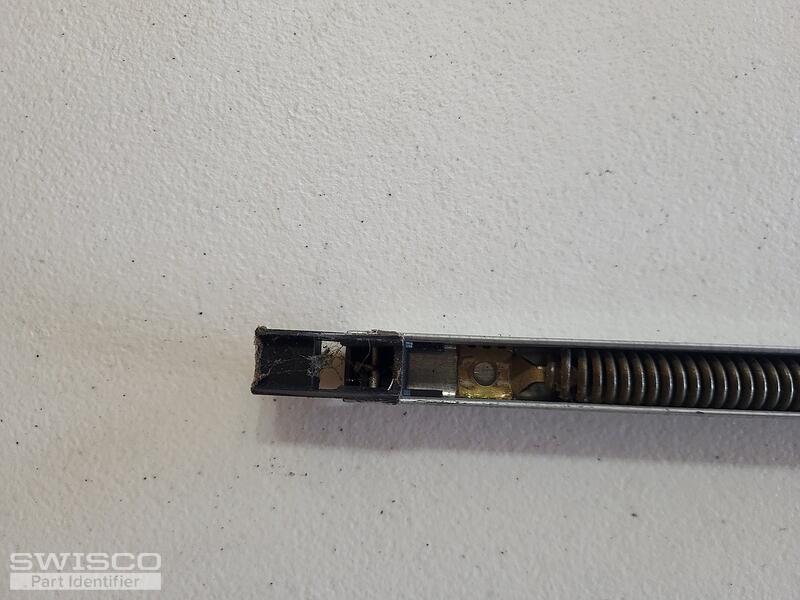

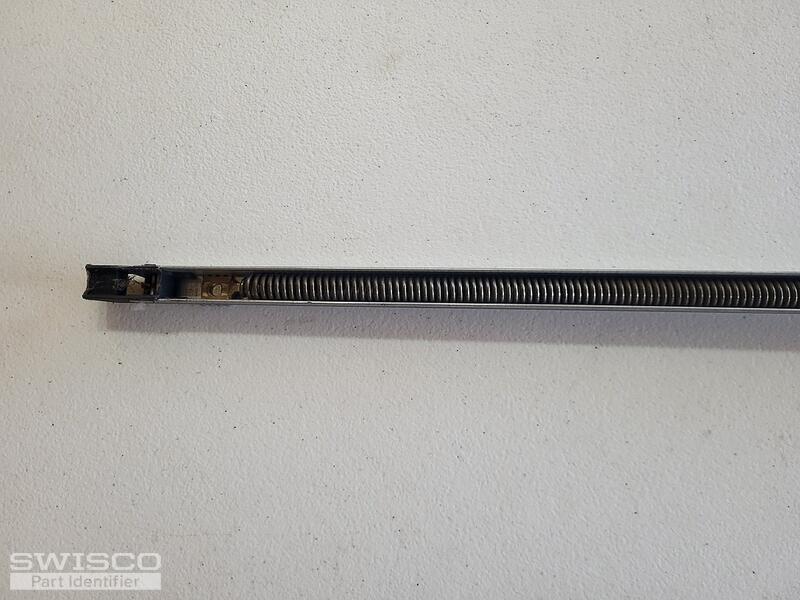

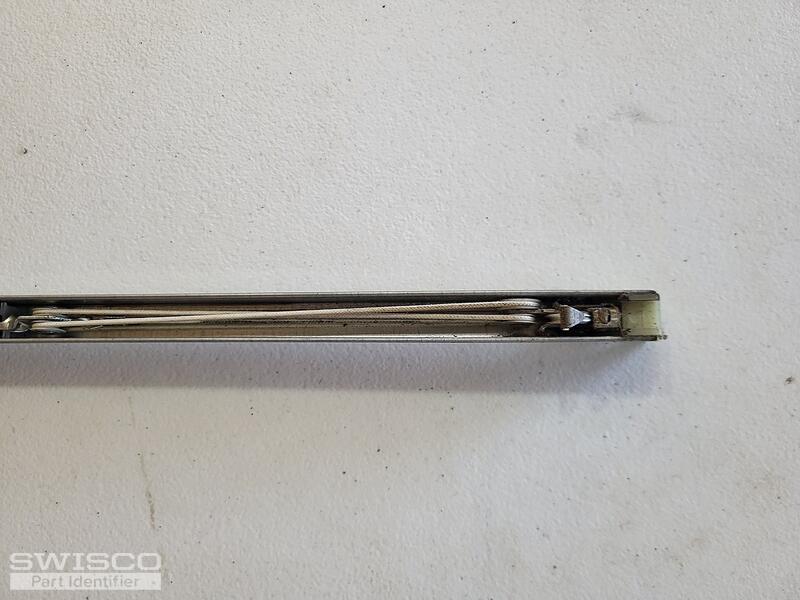

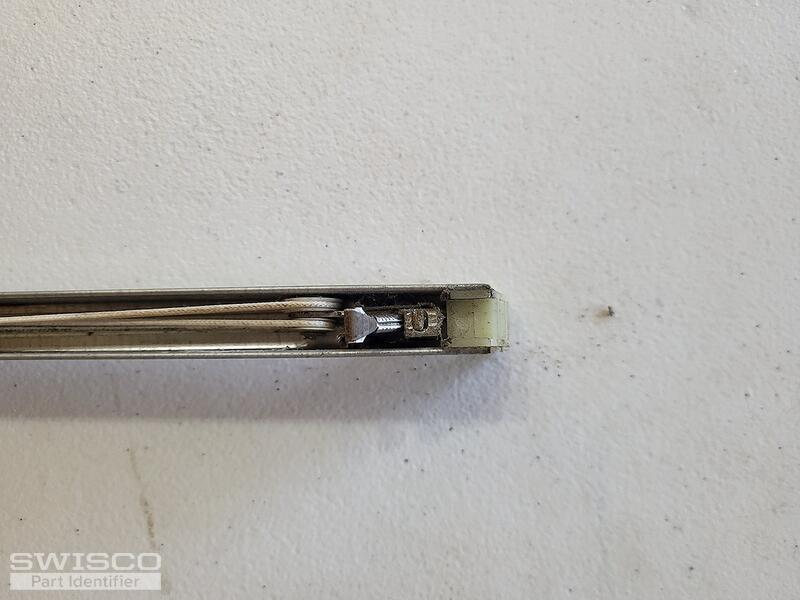

We can assist with replacements, but to further review, we will need to see the inside of the metal channel where we can view the connection point between the spring and pulley system.

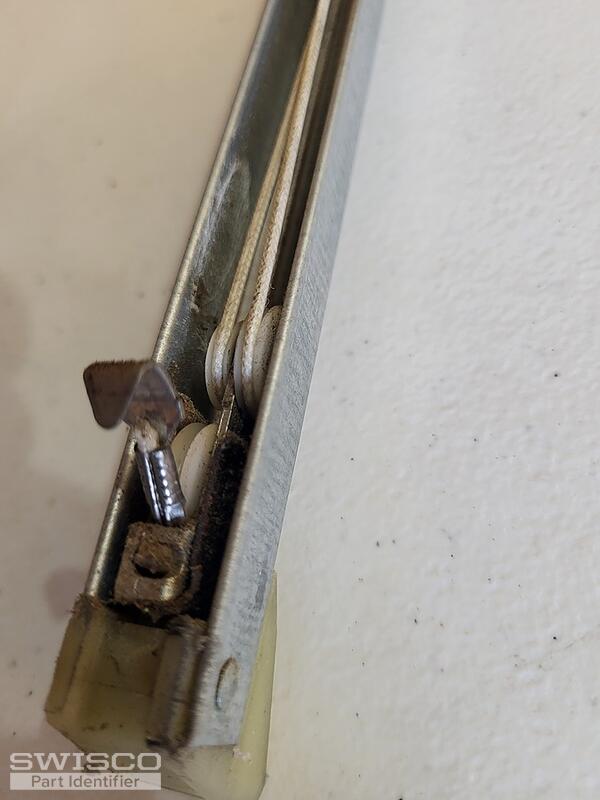

Please also provide additional pictures of the top and bottom attachments. I believe they may be non-winged, but I cannot confirm from the placement of the measuring tape. From there we can narrow down the series of balance needed for your window. Thank you!
