Replacement channel Balances 27DS B.S.L. DJ 33

Home Owner from Oceanside, CA 92056

Jul 30, 2012 4:20 pm

I am loooking for replacements for an unknown window balance. The only identiflcation I find on the broken one is an imprint on the channel as folows: 27DS B.S.L. DJ 33. It measures 29" from tip of the shoe to the channel balance top; 28" from the bottow to the top of the metal channel. The channel is 5/8" deep and 5/8" wide. I have enclosed some pictures to help in the ID.

Can you provide ordering information for replacements?

Thanks for your help. Regards,
Joe

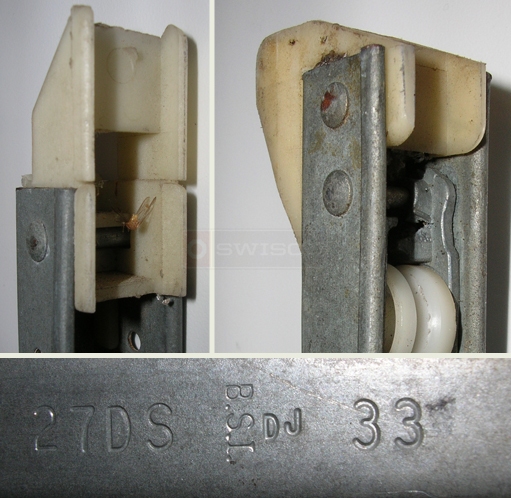

A customer submitted photo of channel balance attachments.

6 Replies

Tom from SWISCO

Jul 31, 2012 8:21 am

Thanks for posting. Before I can confirm what Series channel balance you have, I'll have to figure out what your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?

Home Owner from Oceanside CA

Jul 31, 2012 11:22 am

Looks like I have the 15-001 bottom shoe.
Joe

Tom from SWISCO

Jul 31, 2012 12:30 pm

Thank you! In that case, please take a look at our S390-28 channel balance. Does that look about right?

I just need you to confirm the weight of your window sash before we can decide on your option. You can determine this by removing the sash from the window and placing it on a scale. Let me know!

Home Owner from Oceanside, CA

Jul 31, 2012 9:34 pm

Tom, You wont believe this but when I removed the sash to weigh it I removed the other balance(the one still working) and it had a different ID: 26 3 FR Caldwell. That number range a bell.

About a year ago you sourced a replacemment for that balance and I purchase a pair to replace another window in the house. Only one was bad so I saved the other old one. I located it and installed it in place of the one that is currently broken. It fit and works fine. So at the present time I do not need a replacement.

Thanks again for your assistance and if another one goes bad I will be back.

Regards and thanks again.
Joe

Tom from SWISCO

Aug 1, 2012 8:29 am

That's good to hear, Joe! Isn't it nice how some problems seem to almost fix themselves? Either way, please let me know if you have any questions in the future.
