Replacement channel balance

A home owner from Oregon, USA says:
September 24, 2022
I need to replace some channel balances on some Milgard nontilting windows. Channel is 1/2 inch wide and 30 inches in length.

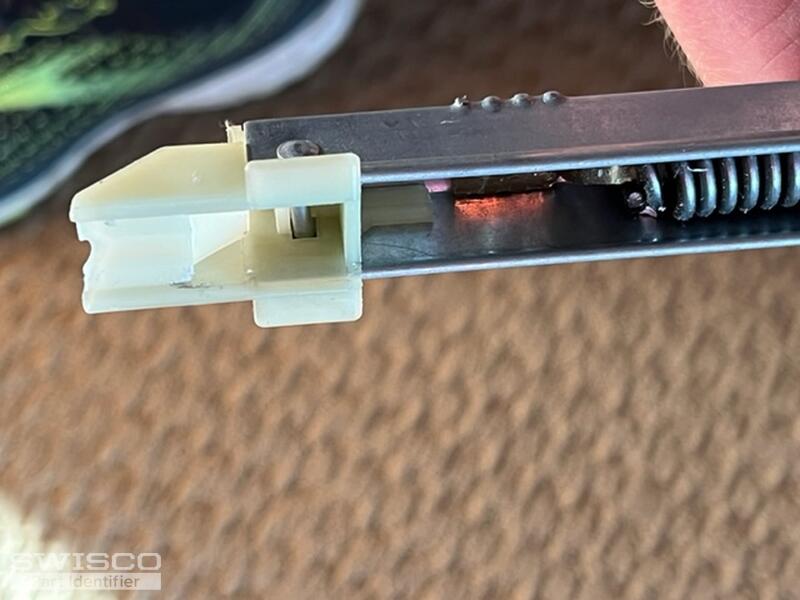

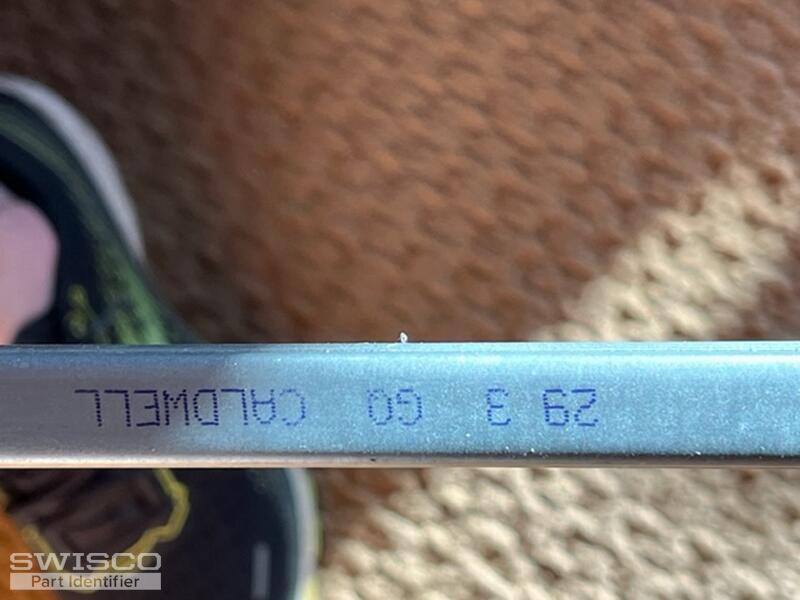

Thumbnail of the uploaded file named IMG_4921.jpg
Thumbnail of the uploaded file named IMG_4917.jpg
Thumbnail of the uploaded file named IMG_4918.jpg
Thumbnail of the uploaded file named IMG_4919.jpg
Thumbnail of the uploaded file named IMG_4920.jpg
Profile picture of Emily
Emily from SWISCO responded:
September 28, 2022

Hi there!

Based on what I see here, I recommend you take a look at our S380-30 or S385-30 channel balance. Each of these Series has a different sized bottom fitting so you will need to measure as shown in the image below. Our Series 380 has a 1" deep bottom fitting and our Series 385 has a 1-3/32" deep bottom fitting. For a spring strength, you will need the 2930 option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
How to Identify Replacement Channel Balances
How to Identify Replacement Channel Balances
VIDEO
WATCH >
How to Replace a Non-Tilt Channel Balance
How to Replace a Non-Tilt Channel Balance
VIDEO
WATCH >
How to Repair a Jammed Window
How to Repair a Jammed Window
VIDEO
WATCH >
How to replace a non-tilt channel balance
How to replace a non-tilt channel balance
GUIDE
READ >
Choosing a Non-tilt Channel Balance: What Will We Need?
Choosing a Non-tilt Channel Balance: What Will We Need?
GUIDE
READ >
