Replacement channel balances 3350

Quick Learner from Streamwood IL
Jan 26, 2012 6:57 pm
I need 5 channel balances for one of my jobs. Its 1/2 inch and there is a number on the balance 3350. I am sending few picks of the balance itself. Please let me know how much will it cost and how long will it take to ship it to my location.


Sincerely

Steve

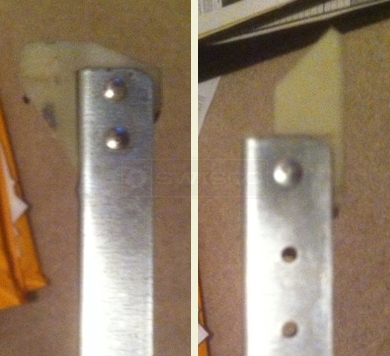

A customer submitted photo of channel balance attachments.
3 Replies
Tom
Tom from SWISCO
Jan 27, 2012 8:46 am
SWISCO
EXPERT
Thanks for posting, Steve! Before we can offer an applicable substitute for your channel balance, I just need a bit more information.

First, what is the length of the metal channel, in inches? Please do not include the plastic attachments in your measurements.

Second, can you please refer to the following chart and pick out your bottom shoe from the examples provided? This will help us determine your channel balance Series. Just by eyeballing it, I think you might have a 15-001, but I want to make certain as it is a vital part of channel balance replacement.
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
Quick Learner from Streamwood IL
Jan 27, 2012 5:46 pm
The measurement for the channel is 34 inches, and the shoe has no wings . The closes would be 15-001.

Thanks

Steve
Casey
Casey from SWISCO
Jan 30, 2012 10:01 am
SWISCO
EXPERT
Thanks for the information. Please take a look at our S390-34, with a 3350 stamp option. I believe this will work for your window.
