Replacement channel balances

A home owner from Mount Pleasant, SC 29466 says:
March 23, 2023

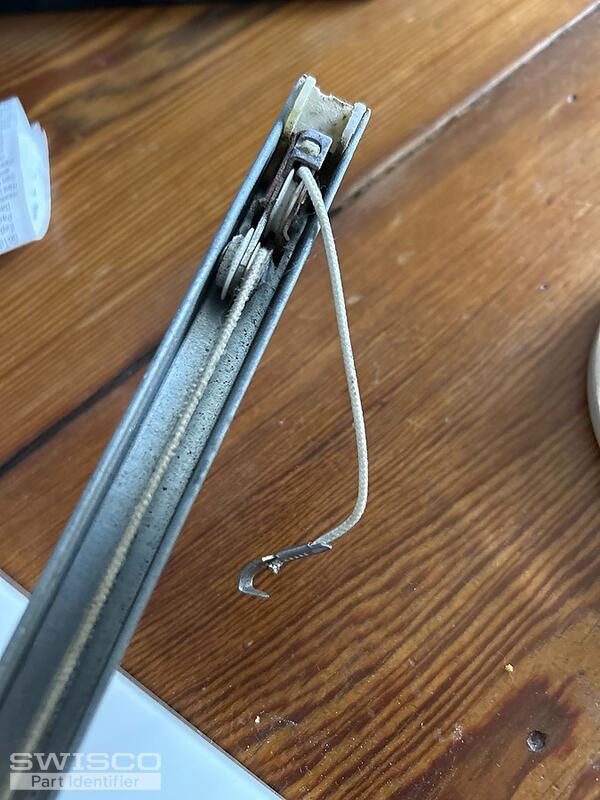

1/2 inch X 29 7/8 inches

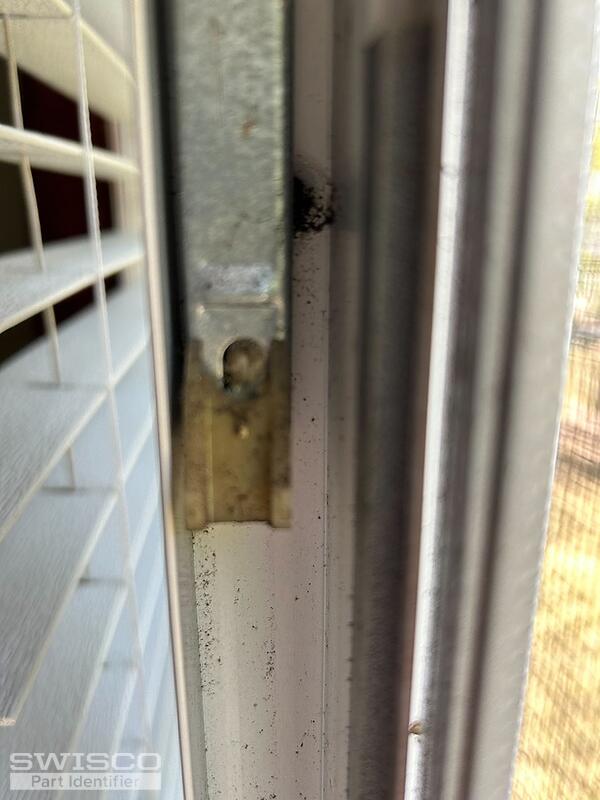

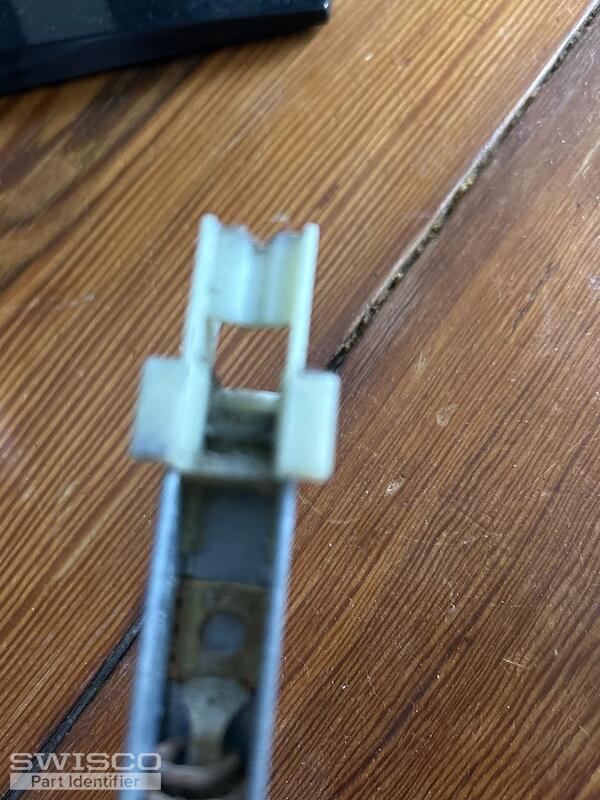

top fitting winged 1 1/4 inch long X 7/8 inch wingtip to wingtip

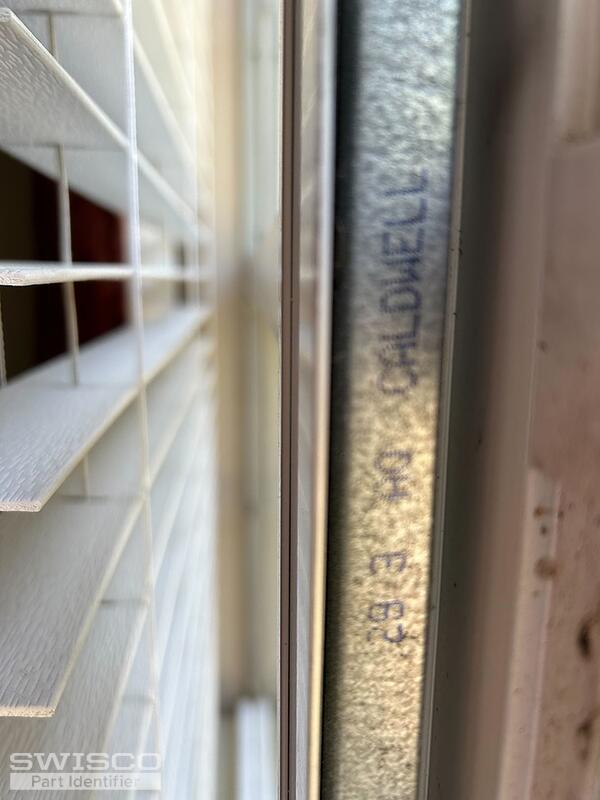

293AQ Caldwell
Thumbnail of the uploaded file named IMG_2053.jpg
Thumbnail of the uploaded file named IMG_2049.jpg
Thumbnail of the uploaded file named IMG_2051.jpg
Thumbnail of the uploaded file named IMG_2052.jpg
Thumbnail of the uploaded file named IMG_2054.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 27, 2023

Thanks for posting. Your channel balances look a lot like our S395-29. The length of metal channel of this balance should be 30" and you'll need to select the 2930 stamp for a 16 to 23lb window.

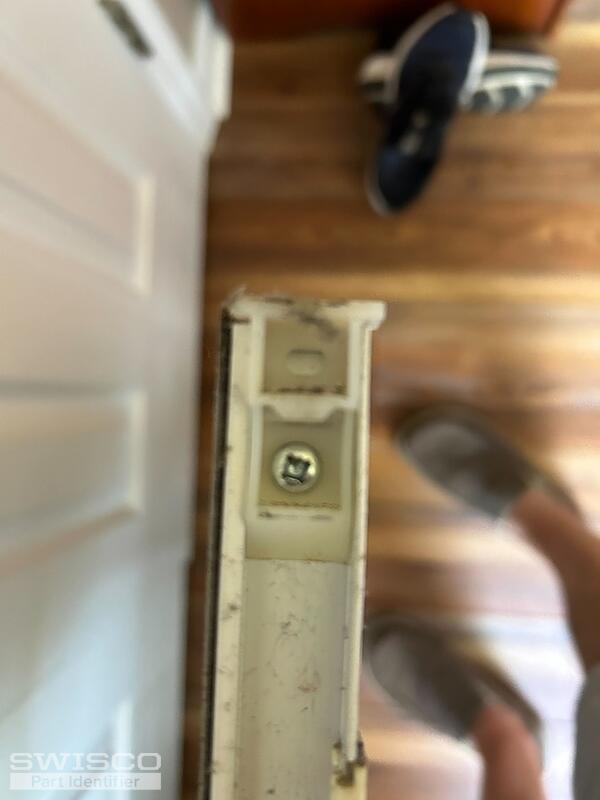

The top sash guide looks similar to our 18-166. Carefully confirm the measurements to determine if this is the right fit for you.

Profile view of 18-166
Profile view of 18-166

Detail of 18-166
Detail of 18-166
5/8" Top Sash Guide, Kinco
5/8" Top Sash Guide, Kinco
18-166
$1.33
30" Series 395 Channel Balance
30" Series 395 Channel Balance
S395-30
$11.30
