Replacement crank assembly

Quick Learner from Jackson, WY

Jun 29, 2022 8:44 am

I am needing a replacement crank assembly for a casement window of unknown manufacturer.
Thanks for any help you can provide.

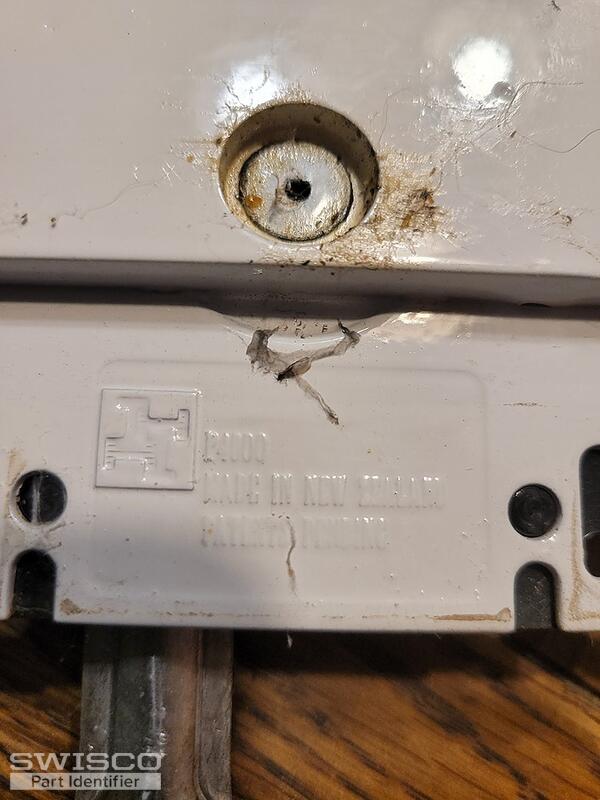

4 user uploaded images

4 Replies

Emily from SWISCO

Jul 1, 2022 9:39 am

Hi there!

Your operator is an older version of our 39-091 and 39-092 but I'm afraid ROTO discontinued the link arm that goes with them. If you have your old one, you'll need to reuse it.

Quick Learner from Jackson, WY

Jul 1, 2022 3:01 pm

Emily,
Thanks for your response.
I don't know the anatomy of casement windows too well. But I think all I need is the operating mechanism itself. I will look at your links to figure out which one I need. But the window hinges on the right if you are in the house looking out. Do you have a time frame these would likely ship? Thanks for your help.
Brian

Emily from SWISCO

Jul 1, 2022 3:27 pm

The operator in your pictures would be our 39-092. You just need to focus on what side the handle is on and use that as a reference for what side you need. If you need the spacer as well, see our 39-557 that's sold separately. Shipping will depend on what delivery option you select during checkout, since we have a few different choices.
