Replacement crank assembly, screen tabs, and frame hole covers

Handy Person from Fairport, New York

Jul 30, 2019 12:46 pm

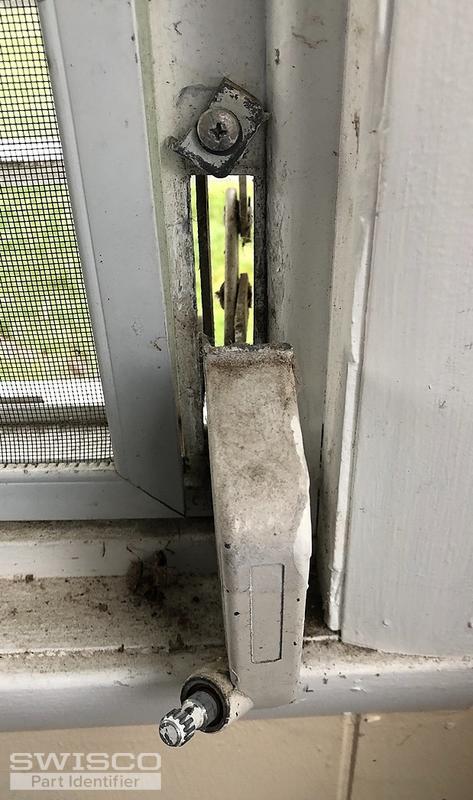

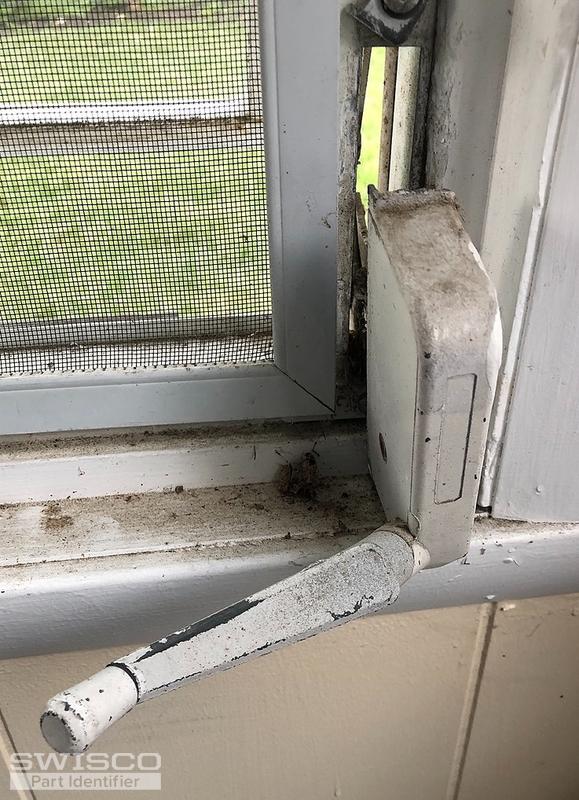

1. I am looking for some white crank assemblies like in the 2 pictures above. Screw holes 5 1/4" on center
2. I am looking for aluminum tabs to hold screens in place with screws like picture above.
3. I am looking for aluminum covers for hole in aluminum frame like picture above.

4 user uploaded images

4 Replies

Tom from SWISCO

Aug 2, 2019 11:04 am

Thank you for submitting your inquiry to our discussion board.

Your pictures remind me of our 70-080 clip and 70-112 thumb lever.

As far as the operator goes, I am not sure what you have, I will need to see the link arm and complete hole pattern.

Handy Person from Fairport, New York

Aug 6, 2019 6:55 pm

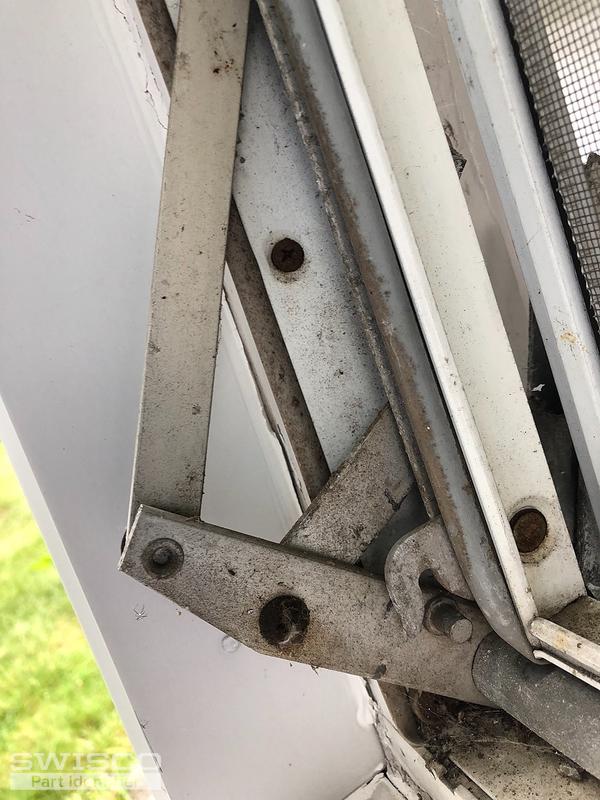

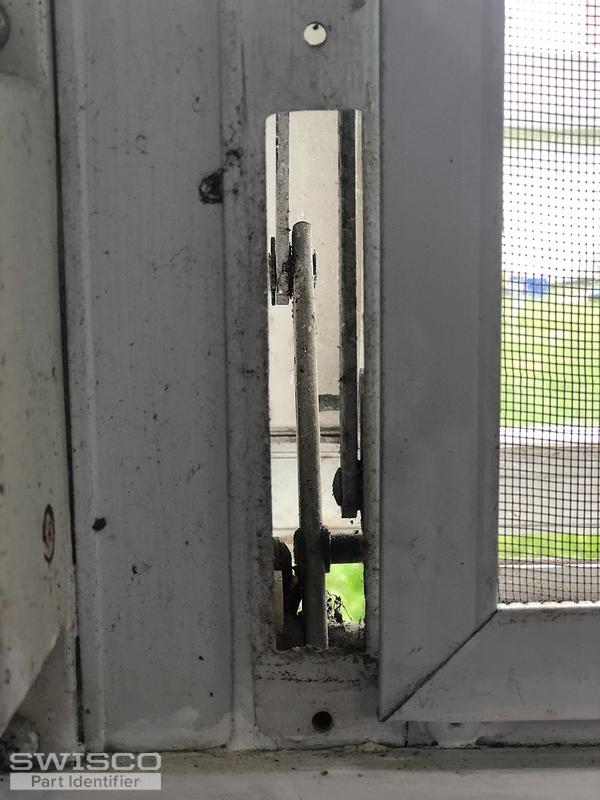

Thanks, here are pics of the link arm and hole pattern. One hole on top and one on bottom. Please let me know if you need anything else

3 user uploaded images

Dave Sr. from SWISCO

Aug 7, 2019 8:21 am

Take a look at the operator 39-025, along with the 70-080 clip and 70-112 screw. The cover plate is our 39-355 snap-on. Take a look at the dimensions. suggested parts and related videos. Thank you!
