Replacement crank help

Home Owner from Campbell, CA

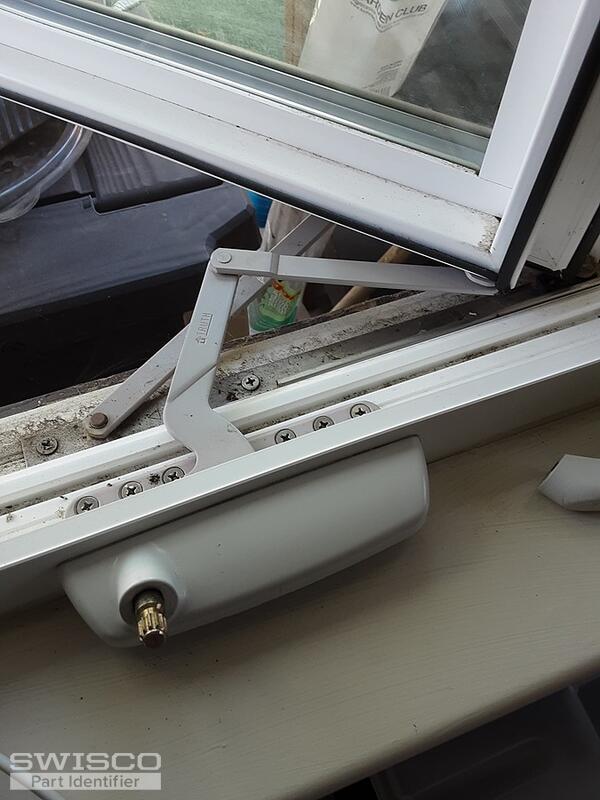

Photos showed broken crank from lefthand Milgard casement window. Crank shaft snapped. Installed photo is from identical mirror image right hand window. Window was installed in 2006, consistent with the date stamp on the part. If pictures aren't clear, there are eight mounting screws on the base and three screws secure the arm to the window. Base plate is five inches wide.
I need a part number and would appreciate a quote on a replacement part if you carry it.
Thanks, Lance
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Please start by reviewing the dimensions of the 39-220B and 39-221B casement operators. I have also related the compatible cover and handles on the page for your review. Please let us know if you have any additional questions.

detail of 39-221B
detail of 39-221B
