Replacement crank mechanism

Question

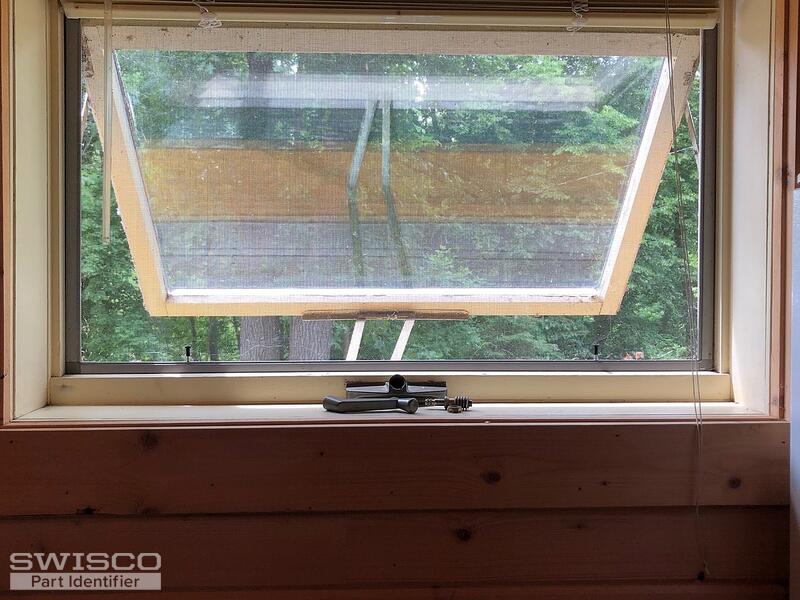

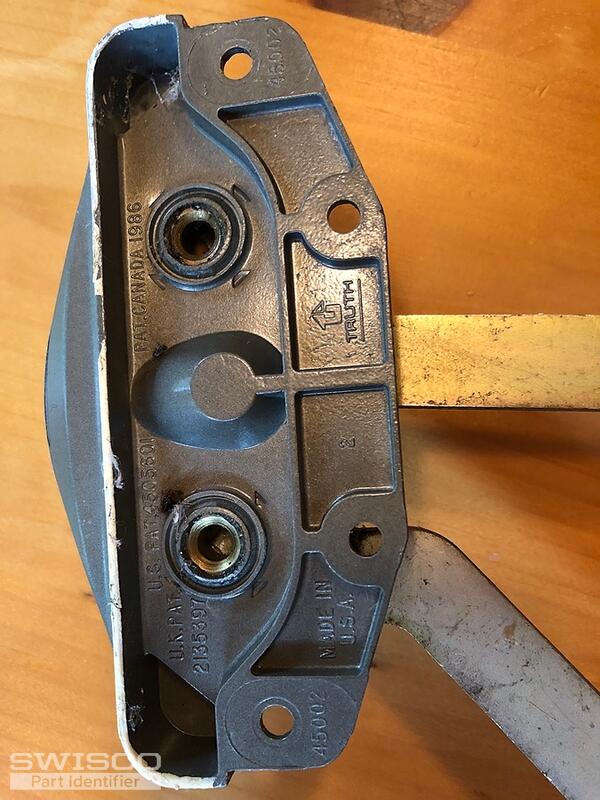

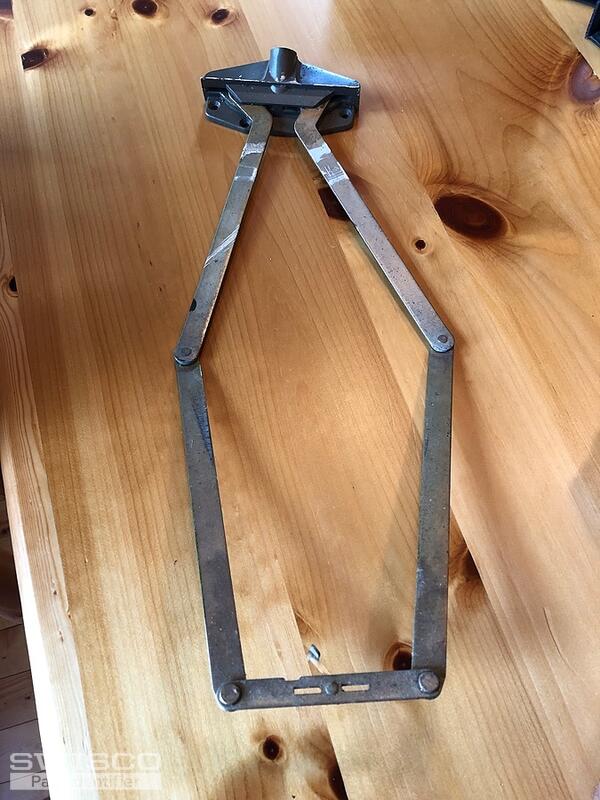

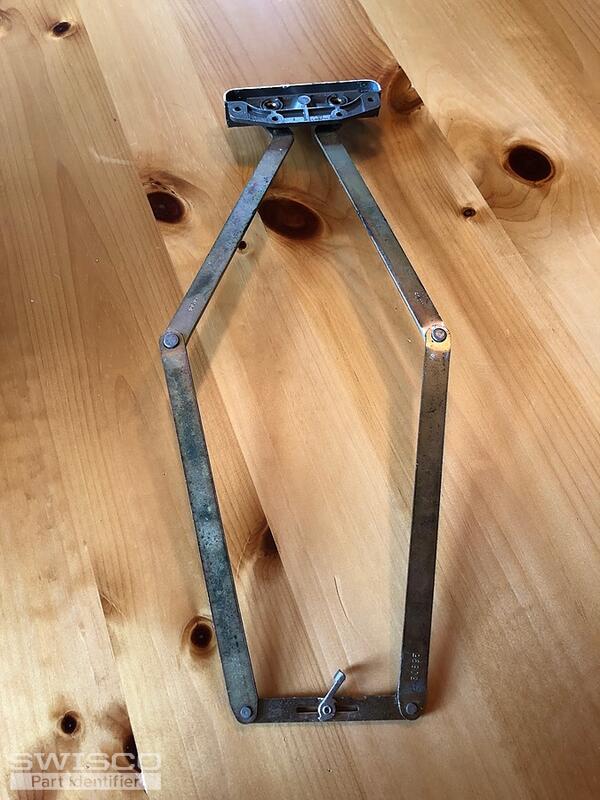

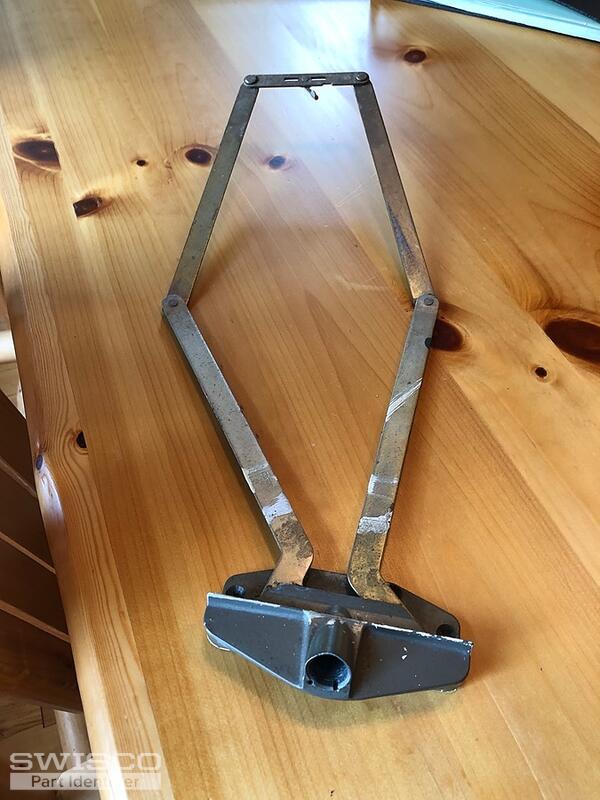

I need an entire crank mechanism for crank out window  please see attached photos.

Bob · Accepted Answer

Hello there. I believe you have either the 39-083 or 39-140 Awning Operators. Compare the diagrams below with your old hardware and see which matches best. Let me know what you decide.

Dimensions for 39-083

Dimensions for 39-140
