Replacement crank mechanism

Contractor from Connecticut

Jul 23, 2026 4:12 pm

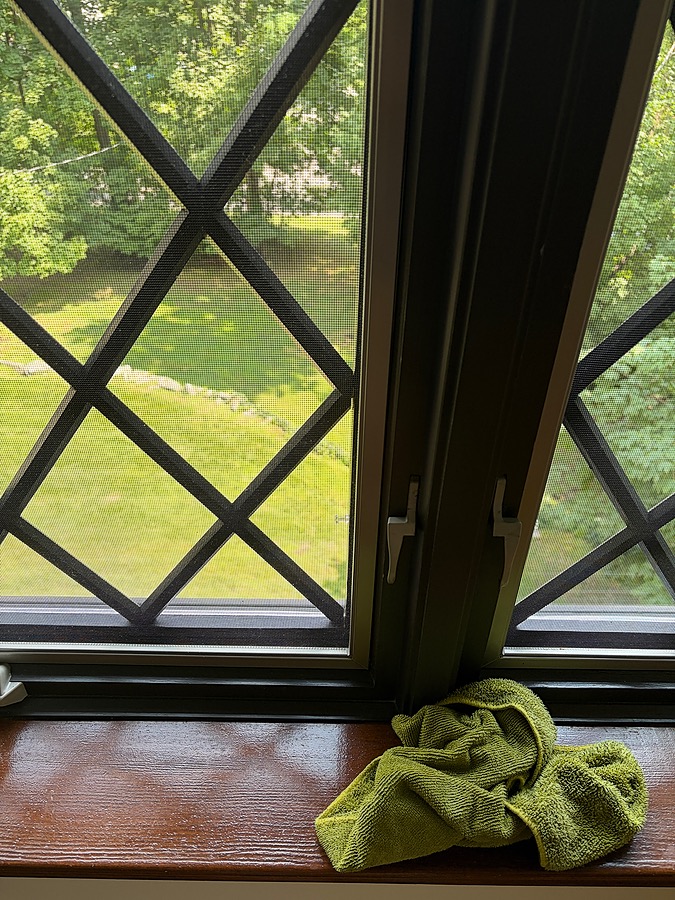

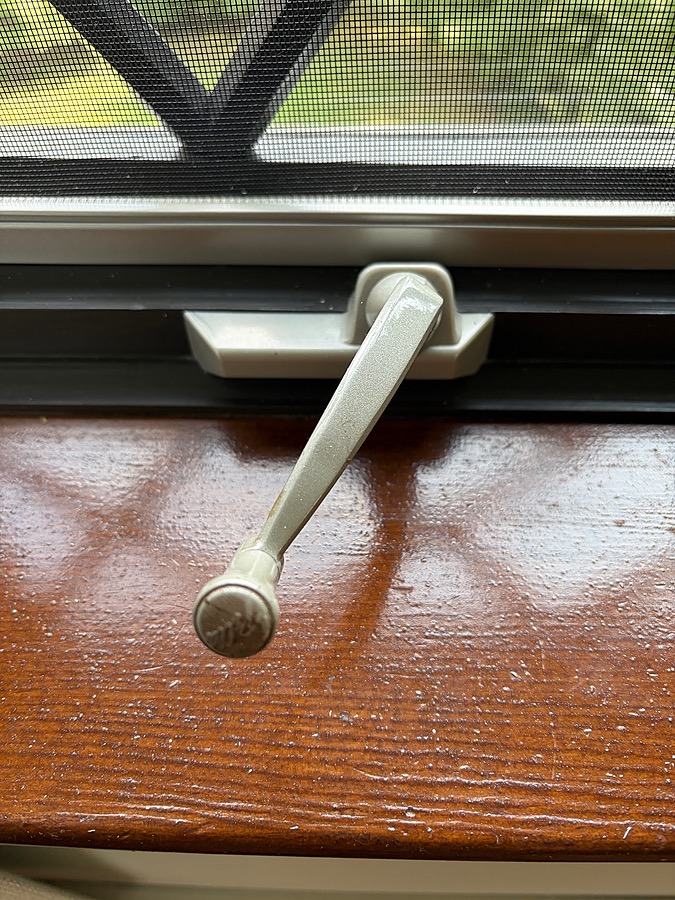

Looking to replace the crank mechanism for these Pella windows. As per my client, they are 1994 Pella Reserve Traditional Casements. Thank you!

5 user uploaded images

4 Replies

Bob from SWISCO

Jul 26, 2026 3:14 am

Hello there. I am confident we can help, but we need to see the entire operator, including the arm(s) that move the window. A bird's eye view, with the window open, would suffice. We'll do our best to help from there.

Contractor from Connecticut

Jul 26, 2026 11:09 am

Thank you

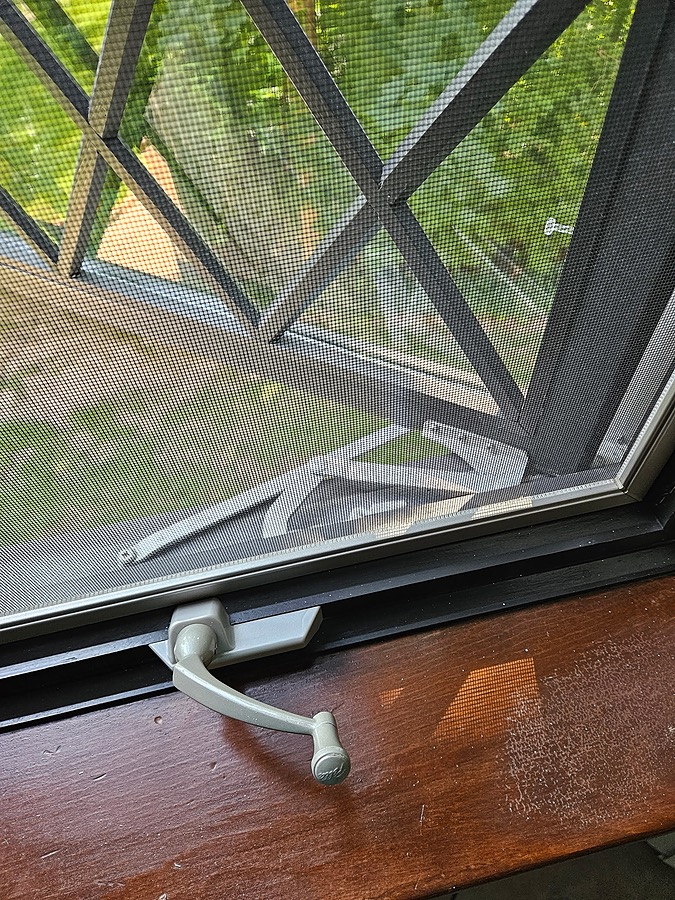

1 user uploaded image

Bob from SWISCO

Jul 27, 2026 3:13 am

See the 39-096 operator, pictured below. See if this matches what you seek. For a handle see the 39-109B.

Dimensions for 39-096
